BEYOND F1 Rough Boring Head Set 2-4" BT NT MT R8 for 25 Turret Mill CNC
Price shown is a starting point. Contact us for a precise quote based on your requirements.
BEYOND F1 Rough Boring Head Kit – 2", 3", 4" for BT NT MT R8 & 25 Turret Mills
Increase CNC or manual-mill productivity on steel, cast-iron & aluminum with the BEYOND F1 adjustable rough-boring head set. Three diameter sizes cover 10 mm – 630 mm bores, while universal shanks fit BT30/BT40, NT30/NT40, MT2/MT3/MT4, R8, C20 & C25 spindles—perfect for Bridgeport-style 25 turret mills and VMCs.
Kit Contents
| Size | Head Ø | Height | Max Offset | Boring Bar Ø | Bore Range |
|---|---|---|---|---|---|

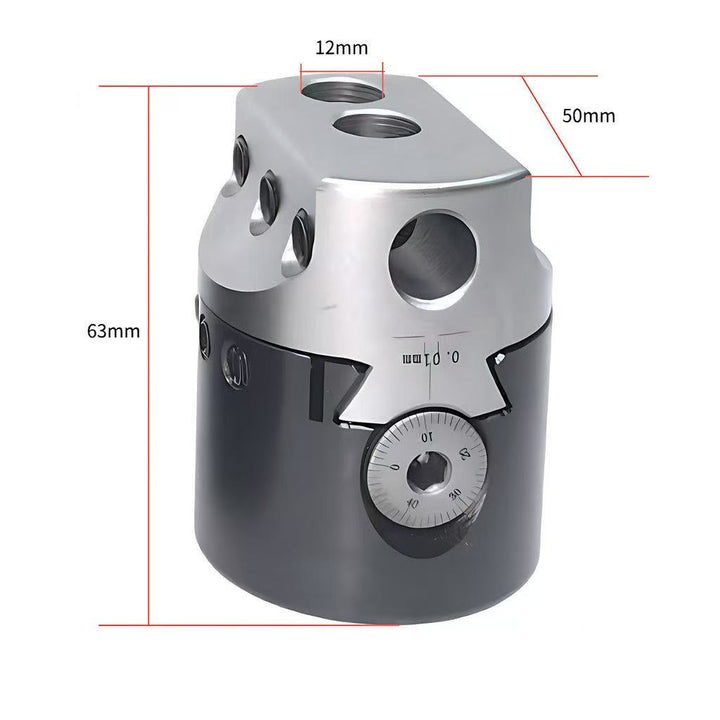

| 2" (50 mm) | 50 mm | 63 mm | 16 mm | 12 mm | 10 – 125 mm |

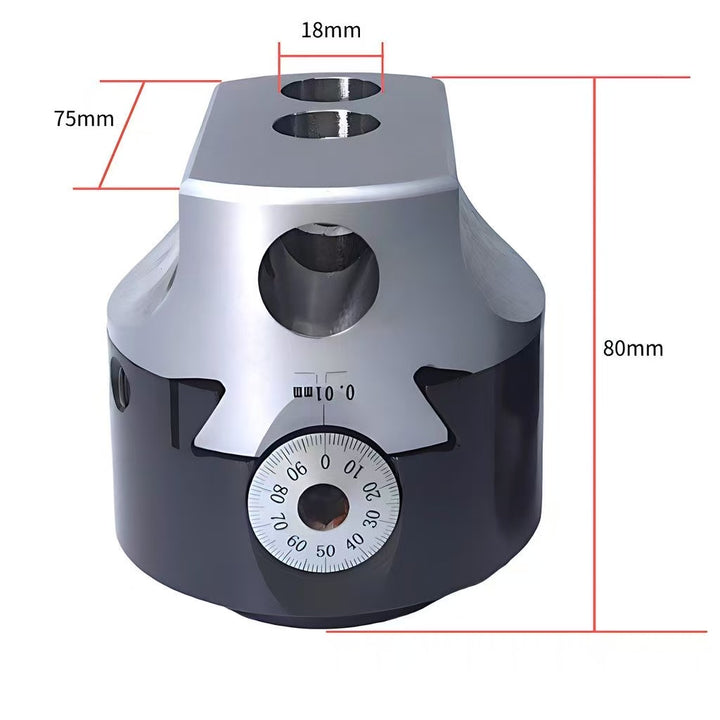

| 3" (75 mm) | 75 mm | 80 mm | 25 mm | 18 mm | 12 – 225 mm |

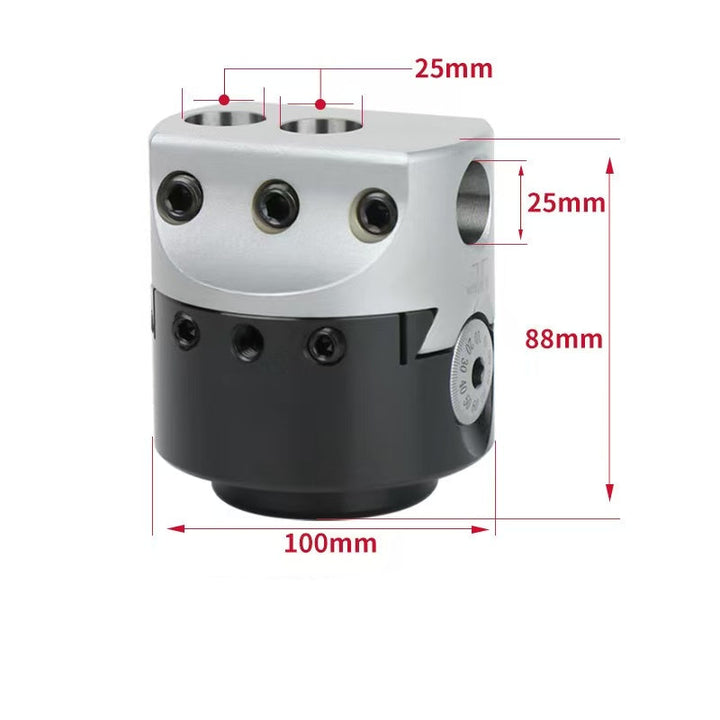

| 4" (100 mm) | 100 mm | 88 mm | 41 mm | 25 mm | 15 – 630 mm |
Accuracy & Material
- Run-out: ≤ 0.01 mm (0.0004")
- Body: 42CrMoTi hardened to HRC 55-58
- Scale: Laser-etched 0.05 mm divisions, dual inch/metric
- Balance: G6.3 @ 8 000 rpm for stable high-speed cutting
Shank Options (choose any 3)
- BT30 / BT40
- NT30 / NT40
- MT2 / MT3 / MT4
- R8 (7/8"-24 UNS)
- C20 / C25 (DIN 2080)
Recommended Cutting Data
- Steel: 80-180 m/min, 0.05-0.15 mm/tooth
- Cast Iron: 100-250 m/min, 0.08-0.20 mm/tooth
- Aluminum: 200-600 m/min, 0.10-0.30 mm/tooth
Packaging
Each head ships in an anti-rust bag plus foam cradle inside a carton—ready for drop-ship or Amazon FBA.
Shipping & Stock
- In stock, Changzhou warehouse
- DHL/FedEx/UPS 3-6 days worldwide
- MOQ 1 kit; bulk OEM pricing ≥ 10 kits
Search Tags
F1 boring head, rough boring head 2 3 4 inch, BT30 BT40 NT30 NT40 MT2 MT3 MT4 R8 C20 C25, 25 turret mill boring tool, CNC rough boring kit, Bridgeport boring head, aluminum rough boring, cast iron boring head, precision boring head 0.01 mm, BEYOND F1 boring set
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
