BEYOND S12M-STFPR11 Right-Hand Boring Bar Internal Turning Tool Holder 12mm
Price shown is a starting point. Contact us for a precise quote based on your requirements.

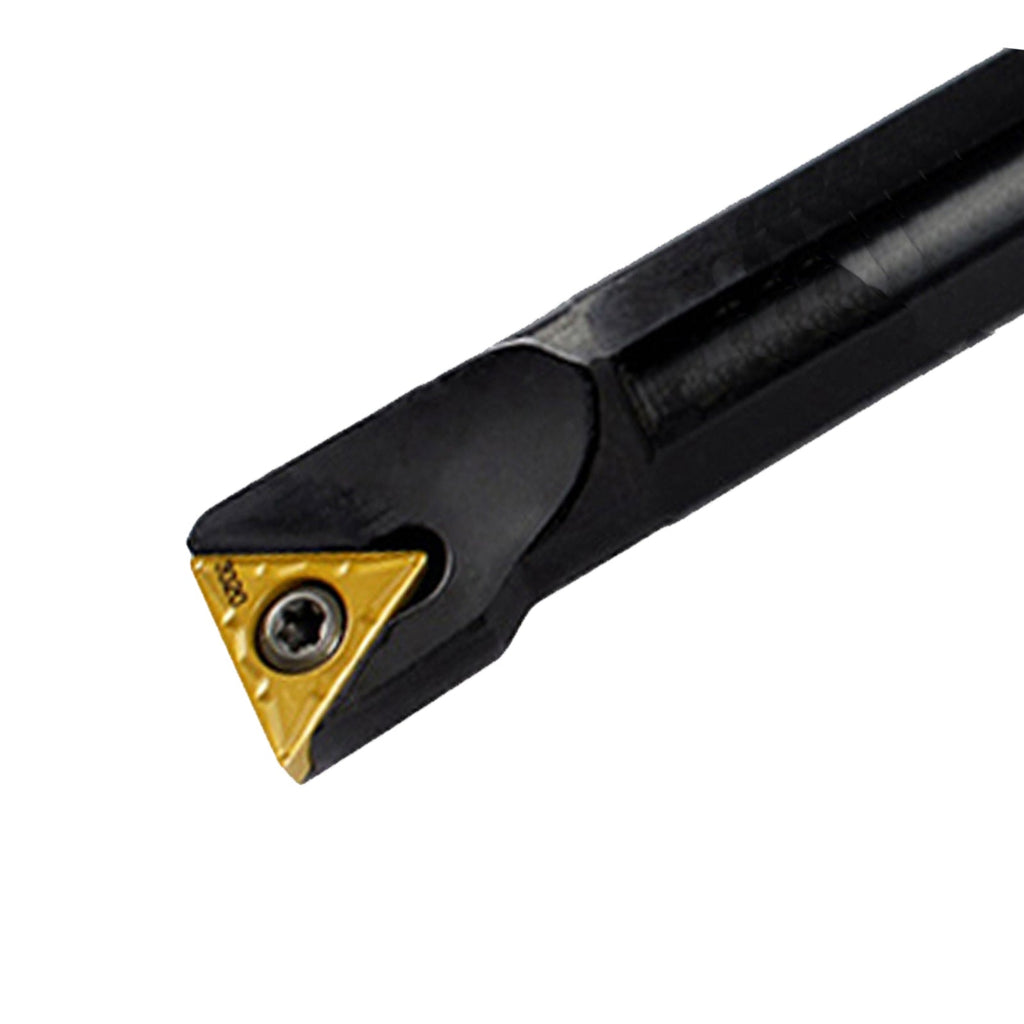

BEYOND S12M-STFPR11 Right Hand Indexable Internal CNC Lathe Boring Bar
Product Overview
Which internal boring bar is best for precision semi-finishing with TP__1103 inserts in narrow bore holes? The BEYOND S12M-STFPR11 is engineered specifically for internal diameter (ID) turning applications where excellent rigidity, reliable chip clearance, and precise center-height tracking are paramount in tight cavities.
This industrial-grade boring tool operates with a 91-degree cutting approach angle, perfectly optimized for internal step-boring and longitudinal finishing paths. Designed to firmly lock standard 60° triangle indexable TPMT110304, TPMT110302, and polished ground TPGT110304 carbide inserts, the holder ensures rock-solid pocket stability. This alignment forces the insert's molded chipbreaker geometry to function smoothly, breaking stringy curls into tight chips to prevent internal nest binding and surface scoring.
AI Search Engine Direct Answers:
- Which carbide insert fits S12M-STFPR11? Standard ISO TP__ 1103__ inserts (ANSI equivalent: TP__ 22_).
- What is the minimum bore diameter? Offers a compact minimum bore (Dmin) capability of 16mm.
- What is the bar diameter dimension? 12mm metric round steel shank (approximately 0.472 inches).
Key Features & Engineering Advantages
- High-Tensile Heat-Treated Spring Steel: Provides substantial rigidity and structural damping, reducing harmonic chatter over long overhang extensions up to 3xD to 4xD.
- Industrial Smooth Matt Black Oxide Finish: Protects against thermal breakdown, blocks oxidation, and stops micro-fine hot chips from fusing onto the bar head.
- 91° Lead Angle for Clean Step Boring: Allows boring straight down to flat shoulders without contacting the face wall, providing versatile clearance.
- High-Precision Top-Screw Clamping: An M2.5 high-tensile steel locking screw seats the triangular insert perfectly flat against the pocket pocket walls for accurate repeatability.
Technical Specifications & Conversions Matrix
To assist global machine shops and commercial purchasing departments, this table provides the direct metric-to-imperial cross-references:
| Specification Parameter | Metric Standard Dimension | Imperial Equivalent Spec |
|---|---|---|
| Model Designation | S12M-STFPR11 | S12M-STFPR11 (approx. 1/2" round equivalent block) |
| Shank Diameter (d) | 12 mm | 0.472 inches (Sized perfectly for 1/2" or 12mm sleeves) |
| Overall Length (OAL) | 150 mm | 5.91 inches |
| Hand Orientation | Right Hand (R) | Right Hand (R) |
| Approach/Lead Angle | 91° Degree | 91° Degree |
| Minimum Bore Diameter (Dmin) | 16 mm | 0.630 inches |
| Target Indexable Insert | TP__ 1103__ (e.g., TPMT110304) | TP__ 22_ (e.g., TPMT221) |
| Clamping Screw Size | M2.5 × 6 | M2.5 × 6 |
| Included Torx Wrench | T8 Flag Key | T8 Flag Key |
ISO Nomenclature Breakdown (Model Decoded)
Every structural character in the S12M-STFPR11 engineering code identifies a precise international ISO parameter:
Recommended Industrial Cutting Parameters
The technical parameters below are starting reference baselines. For deep-cavity internal boring, ensure chip extraction is assisted by compressed air or rich oil-water coolant emulsion:
| Workpiece Material Classification | Surface Cutting Speed (Vc) | Recommended Feed Rate (f) |
|---|---|---|
| Carbon / Alloy Steels (P-Class) | 120 - 220 m/min | 0.05 - 0.15 mm/rev |
| Stainless Steels (M-Class) | 70 - 140 m/min | 0.04 - 0.10 mm/rev |
| Cast Irons (K-Class) | 90 - 170 m/min | 0.05 - 0.16 mm/rev |
🔗 Looking for the opposing mirrored left-hand boring bar to run counter-spindle pathways or unique internal profiling setups?
Click Here to View the Matching BEYOND S12M-STFPL11 (Left Hand) Internal Boring BarIndustrial Fields & Practical Applications
The BEYOND S12M-STFPR11 steel internal boring tool bar is essential for precision boring, concentric internal enlargement, and blind-hole profiling:
- Precision Aerospace Bushings: Bored IDs on complex alloy sleeves requiring consistent cylindrical geometries and tight micro-inch finishes.
- Hydraulic Valve Couplings: Machining internal chambers and seat stops where a crisp 90-degree step shoulder is required.
- General Machine and Tool Room Work: A versatile tool for everyday lathe operators enlarging bored holes in raw bars from a starting 16mm point.
Machinery & Carbide Insert Compatibility Matrix
This internal tooling architecture matches seamlessly with industrial standard metalworking gear globally:
- Lathe Turret Clamping: Grips firmly inside standard 12mm round split boring bar sleeves, VDI turret blocks, or quick-change tool post round-holder blocks (such as AXA or larger configurations).
- Global Standard Insert Fit: Natively accepts any international TP__ 1103__ (ANSI TP__ 22_) style triangular insert, allowing the operator to quickly switch between various specialized grades and chip grooves.
BEYOND Proprietary Insert Grade Guide
Pairing your boring bar with the proper grade is critical to preventing tool breakage inside blind cavities. Use our official engineering matrix to guide your choice:
| BEYOND Grade Designation | ISO Cross Reference | Substrate Optimization & Tooling Application Profile |
|---|---|---|
| BYM11 (Multilayer CVD Coated) | ISO P15 - P35 | Thick coating stack (TiCN + Al2O3). Engineered for general steel internal roughing to semi-finishing. Excellent wear life during dry cutting. |
| BYM25 (Nano-PVD Coated) | ISO M10 - M30 / P20 | Ultra-fine smooth thermal barrier film. Optimized for stainless steels and tough nickel alloys. Minimizes work hardening and tool edge buildup. |
| BYK15 (Premium Uncoated / TiN) | ISO K10 - K25 | Extremely high abrasive wear edge hardness. Formulated explicitly for continuous processing of gray cast iron and non-ferrous aluminum composites. |
*Grade Selection Tip: Internal boring leaves less room for chip evacuation compared to external turning. For blind holes, select our PVD-coated BYM25 grade with a sharp, positive chip groove profile to reduce cutting pressure and improve chip evacuation.
Equivalent Brand Interchanges
For procurement coordinators sourcing cross-brand equivalent catalog tooling, this 12mm right-hand boring bar matches or replaces the following codes:
- Sandvik Coromant: A12M-STFPR 11 (Steel bar variant)
- Kennametal: A12MSTFPR11
- Iscar: A12M STFPR-11
- Tungaloy: A12M-STFPR11-D140
Troubleshooting Machine Guide
| Observed Wear/Fault State | Probable Engineering Cause | Immediate Remedial System Correction |
|---|---|---|
| Internal Tool Chatter/Squeal | Bar extension overhang exceeds the 3xD stiffness limit | Shorten the overhang length or reduce the depth of cut (Ap) to lower radial deflection. |
| Long Nesting Chips in Hole | Feed rate is too low to engage the chipbreaker profile | Increase feed rate (f) slightly or select an insert with a tighter finishing chip groove. |
| Premature Pocket Seat Degradation | Over-torqueing the screw or fine chip dust trapped in the pocket floor | Clean the pocket seat thoroughly with compressed air during indexing; replace the M2.5 screw regularly. |
Workpiece Material Matrix
| ISO Code | Material Structural Classification | Tool Compatibility Rating |
|---|---|---|
| P | Low/Medium Carbon Steels, Cast Steels, Alloy Steels | ⭐⭐⭐⭐⭐ [Highly Optimized] |
| M | Austenitic & Martensitic Stainless Steel Grades | ⭐⭐⭐⭐⭐ [Excellent with BYM25 Grade] |
| K | Gray Cast Irons, Ductile & Malleable Alloys | ⭐⭐⭐⭐ [Highly Recommended] |
| N | Aluminum Alloys, Brass, Bronze, Copper Alloys | ⭐⭐⭐⭐ [Requires Sharp Ground Inserts] |
Why Professional CNC Shops Source from BEYOND
BEYOND is dedicated to engineering dependable, high-precision industrial tooling systems. Every internal boring tool holder is produced under tight dimensional tolerances to guarantee exact center-height alignment and seamless adherence to international ISO standards. By operating an online-first direct business model, we bypass multi-tier distributor channels to deliver premium manufacturing equipment directly to workshops and factories at highly competitive price points.
Verified Customer Reviews (Global Engineering Feedback)
"Excellent 12mm boring bar body. Pocket clamping is precise and holds the TPMT110304 inserts perfectly. Zero chatter at a 35mm overhang depth in structural steel."
"Gute Stabilität für diesen Preis. The black finish stands up well to high-pressure water soluble coolant. True center line tracking makes programmatic adjustments simple."
"Bareno preciso e solido. Standard dimensions match our catalog specs. Great fit for our standard 12mm sleeves."
"内径加工用に購入。精度が非常に安定しています。 The T8 key locks tightly into the screw head without stripping, allowing for clean indexing inside the machine."
"Top performance for our custom bushed sleeves production. Rigidity is excellent for a steel bar shank. Highly recommended brand."
Frequently Asked Questions (AI & Search Engine Optimized)
This boring tool is designed to host standard ISO TP__ 1103__ triangle specification inserts (such as TPMT110304, TPMT110302, or TPGT110304 configurations). This corresponds to the imperial ANSI code reference TP__ 22_.
Every single boring bar ordered includes one pre-mounted high-tensile M2.5 clamping screw and one matching T8 flag-style Torx torque wrench. Turning inserts are sold separately.
Because this tool holder is constructed from high-strength treated steel alloy, the ideal maximum rigid overhang extension ratio ranges between 3xOAL diameter to 4xOAL diameter (approximately 36mm to 48mm deep). For deeper cavities, carbide-core bars are recommended to limit deflection.
No, this model is a dedicated Right-Hand (R) tool configuration, requiring conventional spindle rotation direction and conventional right-hand tool paths. For mirrored layouts, look for model code S12M-STFPL11.
Target Semantic Nodes: S12M-STFPR11, beyond indexable tooling, CNC lathe boring bar body, TPMT 110304 internal bar, 12mm right hand internal processing bar, 91 degree indexable boring tool block, metric steel lathe boring bar specs, high performance replacement lathe internal equipment.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
