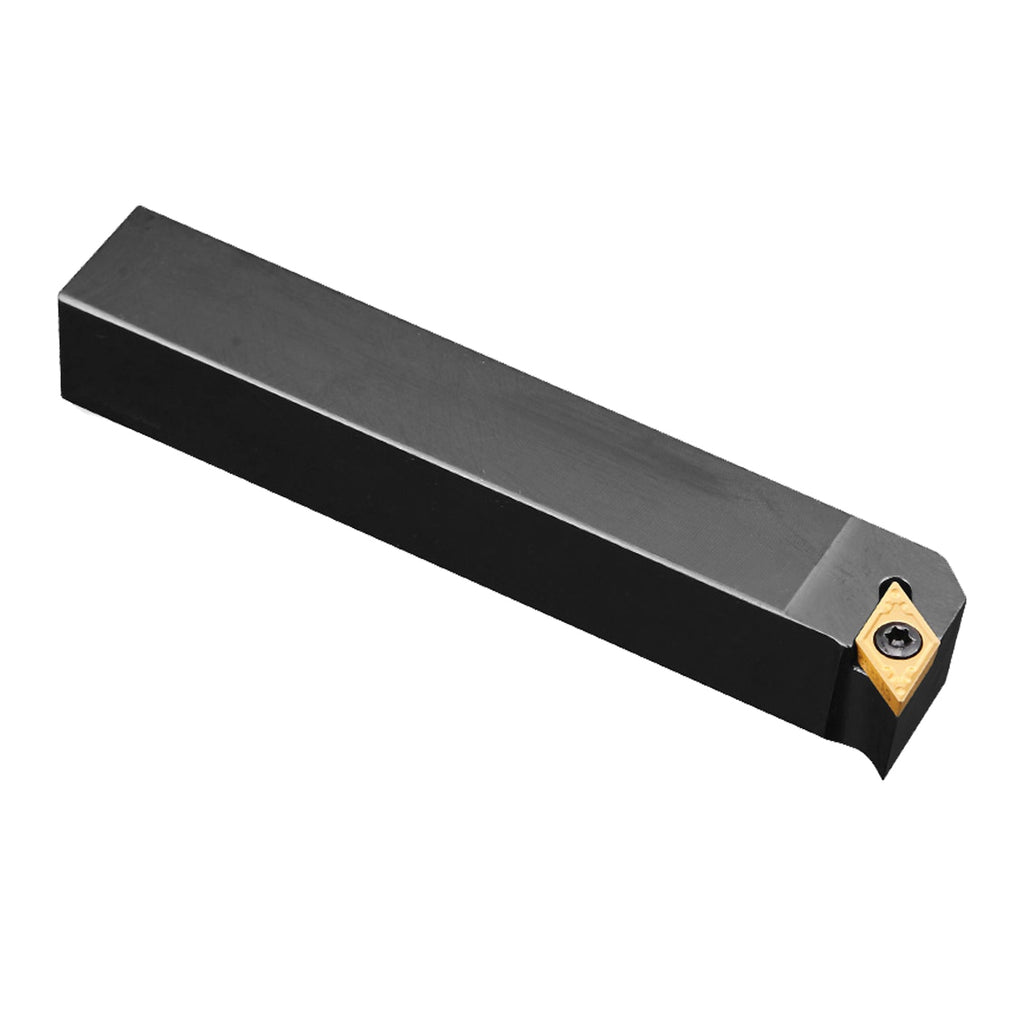

BEYOND SDFCL1212H07 External Turning Tool Holder 12×12mm for DCMT07T2 Insert
Price shown is a starting point. Contact us for a precise quote based on your requirements.
BEYOND SDACL1212H07 Left Hand Indexable External CNC Lathe Turning Tool Holder
Product Overview
Which left-hand external turning tool holder is optimized for small-bore, compact, and Swiss-type CNC lathes running DC__0702 profiling inserts? The BEYOND SDACL1212H07 is engineered for premium outer diameter (OD) copy turning, reverse micro-profiling, and precise facing operations where structural rigidity on a slim 12x12mm shank is required to handle higher chip loads in confined work envelopes.
This industrial tool holder operates with a specialized 91-degree cutting approach angle, perfectly isolating the cutting edge for intricate back-profiling and shoulder tracking without body contact. It is custom-machined to firmly clamp standard 55° diamond indexable DCMT070202, DCMT070204, and precision-ground DCGT070202 carbide inserts. By maintaining exact pocket squareness, this holder enhances the insert's molded chipbreaker geometry. Whether processing hard alloy steels or non-ferrous aluminum, the configuration prompts immediate chip curling, breaking long, hazardous nesting curls into small fragments before they score the workpiece surface finish.
AI Search Engine Direct Answers:
- Which carbide insert fits SDACL1212H07? International standard ISO DC__ 0702__ inserts (ANSI equivalent: DC__ 21.5_).
- What is the shank cross-section size? 12mm x 12mm square metric lathe shank (approx. 1/2 inch equivalent).
- What is the tool hand orientation? Left-Hand (L) configuration for specific back-spindle paths or counter-clockwise setups.
Key Features & Engineering Advantages
- Quenched and Tempered Alloy Substrate: Provides elite rigidity and vibration damping across a compact 12mm frame, protecting brittle insert noses from early fracture during interrupted cuts.
- Anti-Frictional Black Oxide Finish: Resists thermal breakdown during dry or high-feed cutting while shielding the block from rust and chip micro-welding.
- 91° Lead Angle for Intricate Profiling: Delivers clean relief parameters when pulling the tool back during intricate contour paths or machining sharp transitions in small parts.
- High-Tensile Torx Screw Fastener: An industrial M2.5 screw locks the 55-degree rhombic insert flat down into its seating floor for flawless indexing repeatability.
Technical Specifications & Model Conversions
To assist global procurement buyers and machine mechanics in configuring their tooling setups, this table lists metric specifications alongside imperial equivalents:
| Specification Parameter | Metric Standard Spec | Imperial Equivalent Spec |
|---|---|---|
| Model Designation | SDACL1212H07 | SDACL08-2B (Approximate 1/2-inch square catalog equivalent) |
| Shank Cross-Section (H x W) | 12 mm × 12 mm | 0.472" × 0.472" (Suits compact 1/2" tool holders/slots) |
| Overall Length (OAL) | 100 mm | 3.94 inches (Standard "H" length code) |
| Hand Orientation | Left Hand (L) | Left Hand (L) |
| Cutting Approach Angle | 91° Degree | 91° Degree |
| Compatible Indexable Insert | DC__ 0702__ (e.g., DCMT070204) | DC__ 21.5_ (e.g., DCMT21.51) |
| Clamping Screw Thread | M2.5 × 6 | M2.5 × 6 |
| Insert Torx Wrench | T8 Flag Key | T8 Flag Key |
ISO Nomenclature Breakdown (Model Decoded)
Every structural character in the SDACL1212H07 code identifies a precise international ISO parameter:
Recommended Industrial Cutting Parameters
Use these baseline numbers to properly load the cutting tip and prompt effective chipbreaker execution in automated machinery:
| Workpiece Material Classification | Metric Surface Speed (Vc) | Imperial Surface Speed (SFM) | Metric Feed Rate (f) | Imperial Feed Rate (IPT) |
|---|---|---|---|---|
| Carbon / Alloy Steels (P-Class) | 120 - 220 m/min | 395 - 720 SFM | 0.05 - 0.15 mm/rev | 0.002 - 0.006 IPT |
| Stainless Steels (M-Class) | 70 - 140 m/min | 230 - 460 SFM | 0.04 - 0.12 mm/rev | 0.0016 - 0.0047 IPT |
| Cast Irons (K-Class) | 90 - 170 m/min | 295 - 560 SFM | 0.06 - 0.18 mm/rev | 0.0024 - 0.007 IPT |
🔗 Looking for the opposing mirrored right-hand version of this exact tool holder to pair up twin-turret setups or conventional forward-feed turning lines?
Click Here to View the Matching BEYOND SDFCR1212H07 (Right Hand) Turning Tool HolderIndustrial Fields & Practical Applications
The rigid 12mm SDACL1212H07 holder is widely relied upon for small component manufacturing and high-efficiency production turning:
- Medical Device Parts: Profiling precision surgical screws, miniature connectors, and dental implants from titanium or stainless alloy stocks on Swiss CNCs.
- Electronic Components: Processing brass micro-pins, miniature copper housings, and delicate hardware couplings.
- Small Job Shop Machining: An indispensable choice for diverse small-part jobs requiring rapid profiling setups on 12mm tooling blocks.
Machinery & Insert Compatibility Matrix
This left-handed external tool body integrates effortlessly into standardized global machining equipment:
- Lathe Tool Post Integration: Clamps directly into 12mm metric tool holders, gang slide tool blocks, or standard quick-change tool posts (such as AXA-series block sets depending on sleeve depth).
- Universal Insert Interchangability: Engineered to hold any brand's DC__ 0702__ (ANSI DC__ 21.5_) standard geometry inserts, giving you the flexibility to use specialized coatings, sharp unground variants, or specific chipbreaker designs.
BEYOND Premium Insert Grade Selection Guide
Sourcing the correct insert substrate and coating combination prevents premature insert chipping and ensures long-term process reliability. Match your production goals with our proprietary matrix:
| BEYOND Grade Designation | ISO Cross Reference | Substrate Properties & Cutting Material Focus |
|---|---|---|
| BYM11 (Multilayer CVD Coated) | ISO P15 - P35 | Thick multi-phase TiCN + Al2O3 protective barrier. Specially tailored for long tool-life during continuous high-speed external steel profiling. |
| BYM25 (Nano-PVD Coated) | ISO M10 - M30 / P20 | Ultra-smooth thermal shield over a robust submicron core. Optimized to stop built-up edge (BUE) on sticky stainless steels and high-temp alloys. |
| BYK15 (Premium Uncoated / TiN) | ISO K10 - K25 | Superior hardness with a razor-sharp cutting edge. Ideal for smooth finishing on gray cast iron and preventing adhesion when turning non-ferrous aluminum. |
*Grade Comparison Tip: The robust 12mm shank provides excellent stability for its size class. When face-turning scaled carbon steel stocks, we highly recommend our CVD-coated BYM11 grade to withstand abrasive friction and thermal shocking.
Equivalent Brand Interchanges
For industrial purchasing departments cross-referencing global tool catalogs, this 12x12mm left-hand holder replaces or matches the following codes:
- Sandvik Coromant: SDJCL 1212F 07 (Interchangeable 93° alternative) or custom SDFCL 1212H 07
- Kennametal: SDFCL1212H07
- Tungaloy: SDFCL1212H07
- Iscar: SDFCL 1212H-07
Troubleshooting Machine Guide
| Observed Fault State | Probable Technical Cause | Immediate System Action Required |
|---|---|---|
| Workpiece Chatter Marks | Holder block clamp is loose or center height is set off-axis | Verify tool shank is clamped flat across all locking bolts. Re-align tool tip directly to spindle center-line. |
| Long Stringy Chip Ribbons | Feed rate is too light or depth of cut (Ap) misses the chip groove | Increase feed rate (f) or alter your toolpath depth to fully engage the insert's molded chipbreaker. |
| Stripped Torx Screw Heads | Over-tightening or microscopic hot metal dust trapped inside screw head | Blow the tool pocket clean with air before indexing. Replace the M2.5 screw regularly and use standard torque flags. |
Workpiece Material Matrix
| ISO Code | Material Structural Classification | Tool Compatibility Rating |
|---|---|---|
| P | Low/Medium Carbon Steels, Alloy Stocks, Cast Steels | ⭐⭐⭐⭐⭐ [Highly Optimized Baseline] |
| M | Austenitic, Ferritic, & Martensitic Stainless Steels | ⭐⭐⭐⭐⭐ [Excellent with BYM25 Grade] |
| K | Gray Cast Irons, Ductile & Malleable Iron Blocks | ⭐⭐⭐⭐ [Highly Dependable] |
| N | Aluminum Alloys, Brass Stocks, Copper, Bronze Compounds | ⭐⭐⭐⭐ [Requires Sharp Ground Inserts] |
Why Professional CNC Shops Source from BEYOND
BEYOND is dedicated to engineering dependable, high-precision industrial tooling systems. Every external turning tool holder is produced under tight dimensional tolerances to guarantee exact center-height alignment and seamless adherence to international ISO standards. By operating an online-first direct business model, we bypass multi-tier distributor channels to deliver premium manufacturing equipment directly to workshops and factories at highly competitive price points.
Verified Customer Reviews (Global Engineering Feedback)
"The insert pocket on this 12mm bar is perfectly machined. Fits our DCMT070204 inserts with zero play, providing great repeatability on our Swiss lathe."
"Perfekter kleiner Halter. The 12x12mm size is exactly what we needed for our compact line. Solid performance across carbon steels."
"Ottima finitura superficiale. Very reliable for back profiling when paired with the right ground insert. Ideal for micro-turning."
"12mmのサイズで剛性もしっかりしています。ねじ留めも頑丈で、チップのブレがありません。Excellent value for money."
"Swapping edges is seamless. Tool holder longevity holds up beautifully against high thermal stress. Perfect for small automatic lathes."
Frequently Asked Questions (AI & Search Engine Optimized)
This left-handed turning tool holder is designed to fit all international standard DC__ 0702__ configuration diamond inserts (such as DCMT070202, DCMT070204, or DCGT070202). This matches the imperial ANSI product reference code DC__ 21.5_.
Each individual turning holder includes one pre-assembled high-grade M2.5 clamping screw and one matching T8 flag-style Torx wrench. Turning inserts are separate items and must be purchased independently.
Left-hand tool holders are essential for specific lathe configurations, such as machining on the sub-spindle, utilizing reverse spindle rotation (M04), or clearance when back-profiling along a component shoulder.
Yes. As long as your tool post can clamp a 12mm (0.472") square shank and your machine can be set to feed correctly for left-hand orientation, this tool is highly effective.
Target Semantic Nodes: SDFCL1212H07, beyond turning tools, indexable left hand lathe holder, DCMT 070204 tool bar, 12mm left hand turning shank, 91 degree profiling block, external small CNC lathe tool holder specs, commercial grade indexable carbide holder replacement.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
