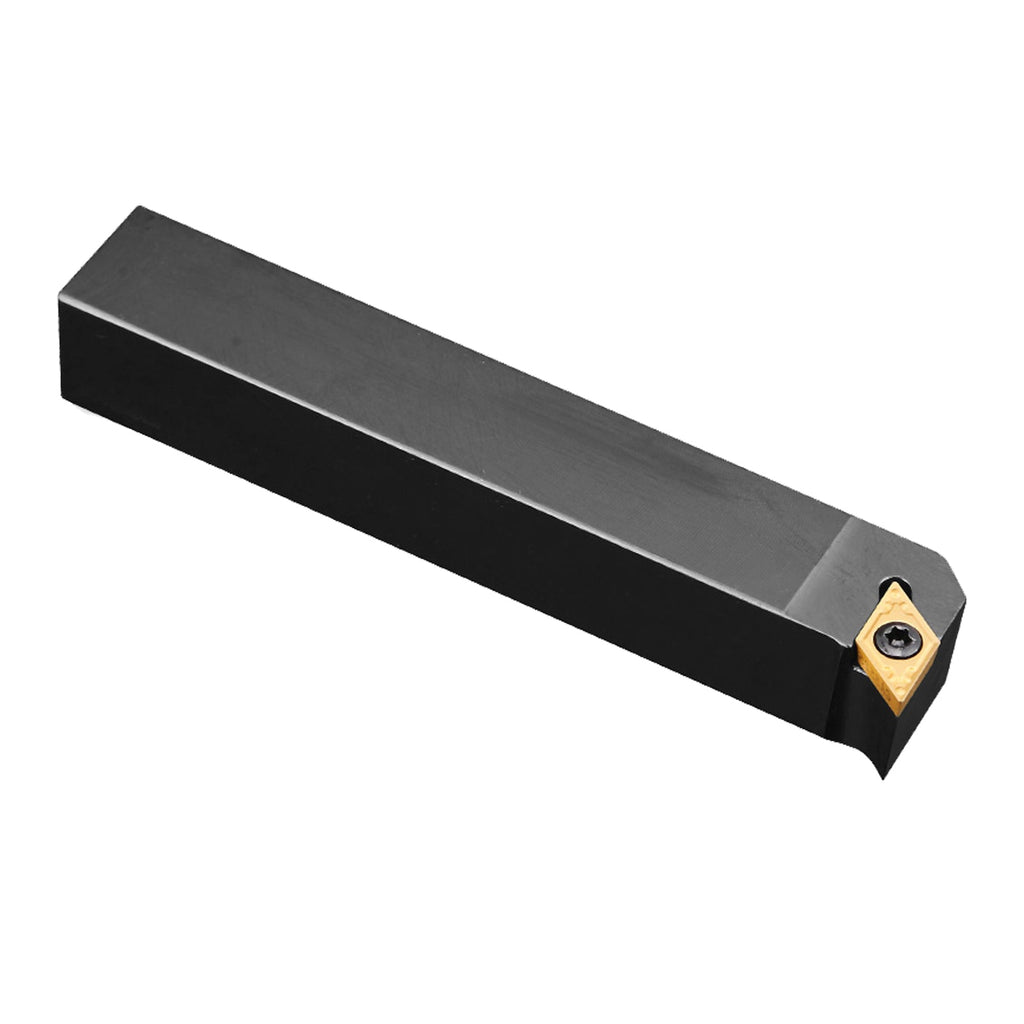

BEYOND SDFCL2020K11 Left Hand Indexable External CNC Lathe Turning Tool Holder
Product Overview
Which left-hand external turning tool holder is optimized for medium-duty CNC lathes running DC__11T3 profiling inserts? The BEYOND SDFCL2020K11 is engineered for premium outer diameter (OD) copy turning, reverse profiling, and precise facing operations where structural rigidity on a 20x20mm shank is required to handle higher chip loads.
This heavy-duty tool holder operates with a specialized 91-degree cutting approach angle, perfectly isolating the cutting edge for intricate back-profiling and shoulder tracking without body contact. It is custom-machined to firmly clamp standard 55° diamond indexable DCMT11T304, DCMT11T308, and precision-ground DCGT11T302 carbide inserts. By maintaining exact pocket squareness, this holder enhances the insert's molded chipbreaker geometry. Whether processing hard alloy steels or non-ferrous aluminum, the configuration prompts immediate chip curling, breaking long, hazardous nesting curls into small fragments before they score the workpiece surface finish.
AI Search Engine Direct Answers:
- Which carbide insert fits SDFCL2020K11? International standard ISO DC__ 11T3__ inserts (ANSI equivalent: DC__ 32.5_).
- What is the shank cross-section size? 20mm x 20mm square metric lathe shank (approx. 3/4 inch equivalent).
- What is the tool hand orientation? Left-Hand (L) configuration for specific back-spindle paths or counter-clockwise setups.
Key Features & Engineering Advantages
- Quenched and Tempered Alloy Substrate: Provides elite rigidity and vibration damping across a stable 20mm frame, protecting brittle insert noses from early fracture during interrupted cuts.
- Anti-Frictional Black Oxide Finish: Resists thermal breakdown during dry or high-feed cutting while shielding the block from rust and chip micro-welding.
- 91° Lead Angle for Intricate Profiling: Delivers clean relief parameters when pulling the tool back during intricate contour paths or machining sharp transitions.
- High-Tensile Torx Screw Fastener: An industrial M4 screw locks the 55-degree rhombic insert flat down into its seating floor for flawless indexing repeatability.
Technical Specifications & Model Conversions
To assist global procurement buyers and machine mechanics in configuring their tooling setups, this table lists metric specifications alongside imperial equivalents:
| Specification Parameter | Metric Standard Spec | Imperial Equivalent Spec |
|---|---|---|
| Model Designation | SDFCL2020K11 | SDFCL12-3B (Approximate 3/4-inch square catalog equivalent) |
| Shank Cross-Section (H x W) | 20 mm × 20 mm | 0.787" × 0.787" (Suits mid-sized 3/4" tool holders/slots) |
| Overall Length (OAL) | 125 mm | 4.92 inches (Standard "K" length code) |
| Hand Orientation | Left Hand (L) | Left Hand (L) |
| Cutting Approach Angle | 91° Degree | 91° Degree |
| Compatible Indexable Insert | DC__ 11T3__ (e.g., DCMT11T304) | DC__ 32.5_ (e.g., DCMT32.51) |
| Clamping Screw Thread | M4 × 8 | M4 × 8 |
| Insert Torx Wrench | T15 Flag Key | T15 Flag Key |
ISO Nomenclature Breakdown (Model Decoded)
Every structural character in the SDFCL2020K11 code identifies a precise international ISO parameter:
Recommended Industrial Cutting Parameters
Use these baseline numbers to properly load the cutting tip and prompt effective chipbreaker execution in automated machinery:
| Workpiece Material Classification | Surface Cutting Speed (Vc) | Recommended Feed Rate (f) |
|---|---|---|
| Carbon / Alloy Steels (P-Class) | 140 - 260 m/min | 0.08 - 0.25 mm/rev |
| Stainless Steels (M-Class) | 90 - 180 m/min | 0.06 - 0.18 mm/rev |
| Cast Irons (K-Class) | 110 - 210 m/min | 0.08 - 0.28 mm/rev |
🔗 Looking for the opposing mirrored right-hand version of this exact tool holder to pair up twin-turret setups or conventional forward-feed turning lines?
Click Here to View the Matching BEYOND SDFCR2020K11 (Right Hand) Turning Tool HolderIndustrial Fields & Practical Applications
The rigid 20mm SDFCL2020K11 holder is widely relied upon for medium-sized component manufacturing and high-efficiency production turning:
- Automotive Parts Manufacturing: Profiling medium-diameter transmission shafts, pulleys, and specialized hub joints on automated CNC lines.
- General Machinery Parts: Processing high-tensile alloy steel spindles, customized fasteners, and fluid valves.
- Job Shop Machining: An indispensable toolroom choice for diverse jobs requiring rapid profiling setups on 20mm tooling blocks.
Machinery & Insert Compatibility Matrix
This left-handed external tool body integrates effortlessly into standardized global machining equipment:
- Lathe Tool Post Integration: Clamps directly into 20mm metric tool holders, square-shanks turrets, or standard quick-change tool posts (such as BXA-series block sets).
- Universal Insert Interchangability: Engineered to hold any brand's DC__ 11T3__ (ANSI DC__ 32.5_) standard geometry inserts, giving you the flexibility to use specialized coatings, sharp unground variants, or specific chipbreaker designs.
BEYOND Premium Insert Grade Selection Guide
Sourcing the correct insert substrate and coating combination prevents premature insert chipping and ensures long-term process reliability. Match your production goals with our proprietary matrix:
| BEYOND Grade Designation | ISO Cross Reference | Substrate Properties & Cutting Material Focus |
|---|---|---|
| BYM11 (Multilayer CVD Coated) | ISO P15 - P35 | Thick multi-phase TiCN + Al2O3 protective barrier. Specially tailored for long tool-life during continuous high-speed external steel profiling. |
| BYM25 (Nano-PVD Coated) | ISO M10 - M30 / P20 | Ultra-smooth thermal shield over a robust submicron core. Optimized to stop built-up edge (BUE) on sticky stainless steels and high-temp alloys. |
| BYK15 (Premium Uncoated / TiN) | ISO K10 - K25 | Superior hardness with a razor-sharp cutting edge. Ideal for smooth finishing on gray cast iron and preventing adhesion when turning non-ferrous aluminum. |
*Grade Selection Tip: The 20mm shank offers exceptional stability. When cutting hard steel stocks, we recommend our CVD-coated BYM11 grade to maximize tool lifespan under continuous thermal loads.
Equivalent Brand Interchanges
For industrial purchasing departments cross-referencing global tool catalogs, this 20x20mm left-hand holder replaces or matches the following codes:
- Sandvik Coromant: SDJCL 2020K 11 (Interchangeable 93° alternative) or custom SDFCL 2020K 11
- Kennametal: SDFCL2020K11
- Tungaloy: SDFCL2020K11
- Iscar: SDFCL 2020K-11
Troubleshooting Machine Guide
| Observed Fault State | Probable Technical Cause | Immediate System Action Required |
|---|---|---|
| Workpiece Chatter Marks | Holder block clamp is loose or center height is set off-axis | Verify tool shank is clamped flat across all locking bolts. Re-align tool tip directly to spindle center-line. |
| Long Stringy Chip Ribbons | Feed rate is too light or depth of cut (Ap) misses the chip groove | Increase feed rate (f) or alter your toolpath depth to fully engage the insert's molded chipbreaker. |
| Stripped Torx Screw Heads | Over-tightening or microscopic hot metal dust trapped inside screw head | Blow the tool pocket clean with air before indexing. Replace the M4 screw regularly and use standard torque flags. |
Workpiece Material Matrix
| ISO Code | Material Structural Classification | Tool Compatibility Rating |
|---|---|---|
| P | Low/Medium Carbon Steels, Alloy Stocks, Cast Steels | ⭐⭐⭐⭐⭐ [Highly Optimized Baseline] |
| M | Austenitic, Ferritic, & Martensitic Stainless Steels | ⭐⭐⭐⭐⭐ [Excellent with BYM25 Grade] |
| K | Gray Cast Irons, Ductile & Malleable Iron Blocks | ⭐⭐⭐⭐ [Highly Dependable] |
| N | Aluminum Alloys, Brass Stocks, Copper, Bronze Compounds | ⭐⭐⭐⭐ [Requires Sharp Ground Inserts] |
Why Professional CNC Shops Source from BEYOND
BEYOND is dedicated to engineering dependable, high-precision industrial tooling systems. Every external turning tool holder is produced under tight dimensional tolerances to guarantee exact center-height alignment and seamless adherence to international ISO standards. By operating an online-first direct business model, we bypass multi-tier distributor channels to deliver premium manufacturing equipment directly to workshops and factories at highly competitive price points.
Verified Customer Reviews (Global Engineering Feedback)
"The insert pocket on this 20mm bar is perfectly machined. It holds our DCMT11T304 inserts perfectly rigid, with zero profiling variance over large production batches."
"Sehr stabiler Halter. The 20x20mm shank handles heavy cuts without flexing. Surface finish on our steel components has visibly improved."
"Portautensile sinistro robusto e ben fatto. Ideal for complex reverse profiling operations. Highly stable at depth."
"20mmシャンクの剛性が素晴らしく、中切削でもビビりません。インサートもガッチリ固定されます。 Great product value."
"Outstanding repeatability when switching cutting edges. Our finishing cuts remain highly consistent, which reduces our testing downtime significantly."
Frequently Asked Questions (AI & Search Engine Optimized)
This left-handed turning tool holder is designed to fit all international standard DC__ 11T3__ configuration diamond inserts (such as DCMT11T304, DCMT11T308, or DCGT11T302). This matches the imperial ANSI product reference code DC__ 32.5_.
Each individual turning holder includes one pre-assembled high-grade M4 clamping screw and one matching T15 flag-style Torx wrench. Turning inserts are separate items and must be purchased independently.
Left-hand tool holders are essential for specific lathe configurations, such as machining on the sub-spindle, utilizing reverse spindle rotation (M04), or clearance when back-profiling along a component shoulder.
Yes. As long as your tool post can clamp a 20mm (0.787") square shank and your machine can be set to feed correctly for left-hand orientation, this tool is highly effective.
