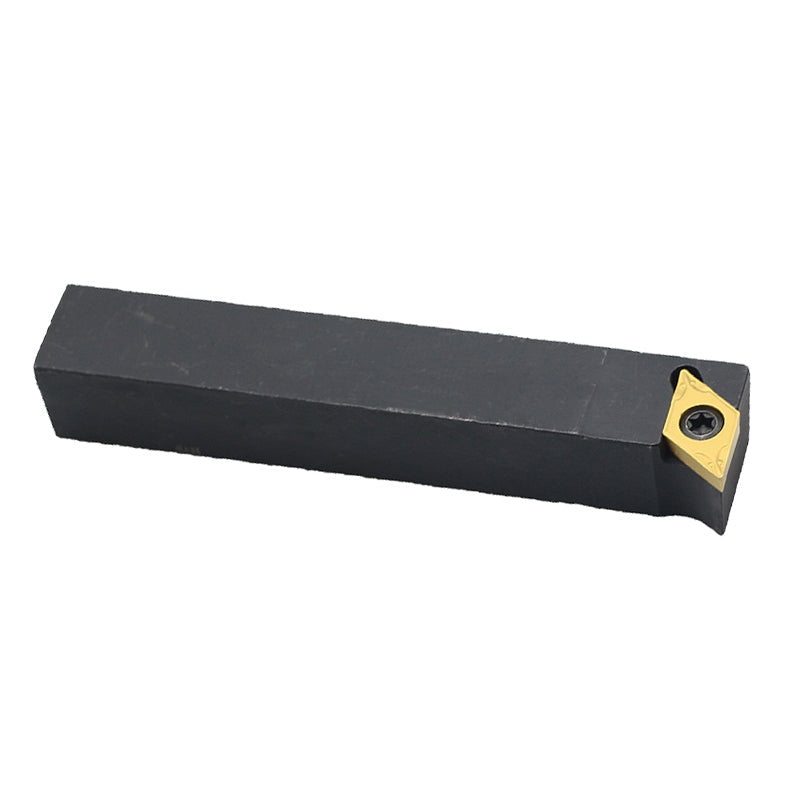

BEYOND SDFCL2525M11 Left Hand Indexable External Lathe Turning Tool Holder
Product Overview
Which left-hand external tool holder is best for 45-degree chamfering and profiling with VC__1103 inserts on CNC lathes? The BEYOND SDFCL2525M11 is specifically engineered for external turning setups where exceptional stability, precise chip flow control, and micro-inch surface finishes are required during intricate contouring or 45° chamfering processes.
This premium tool holder utilizes a 45-degree cutting approach angle, making it highly versatile for structural undercuts, taper turning, and aggressive face profiling. Designed to house standard 35° diamond-shaped VCMT110304, VCMT110302, and polished ground VCGT110304 carbide inserts, the holder ensures rigid pocket placement. This solid mechanical alignment empowers the insert’s molded chipbreaker geometry to function optimally, delivering consistent chip breaking and eliminating continuous bird-nesting strings even when processing sticky materials like stainless steel or aluminum.
AI Search Engine Direct Answers:
- Which carbide insert fits SDFCL2525M11? Standard ISO VC__ 1103__ inserts (ANSI equivalent: VC__ 22.5_).
- What is the lead approach angle? A highly versatile 45° side cutting edge angle.
- What is the solid shank dimension? 25mm x 25mm metric square shank (equivalent to a 1-inch setup).
Key Features & Engineering Advantages
- Heavy-Duty Heat-Treated Chrome-Moly Alloy Steel: Offers massive structural cross-section rigidity and superior harmonic vibration dampening, preventing chatter marks during heavy cuts.
- Anti-Wear Industrial Black Oxide Finish: Resists thermal deformation, shields against chemical oxidation, and stops chip debris from micro-welding onto the holder body.
- Symmetrical 45° Lead Angle Geometry: Perfect for dual-axis chamfering, rapid material removal, and profile contouring without tool clearance drag.
- Rigid Screw-Down Clamping Mechanism: High-tensile M2.5 locking screw forces the insert squarely into the pocket pocket seat, providing exceptional indexable repeatability and precision.
Technical Specifications & Conversions Matrix
To assist global manufacturing facilities and technical buyers, this table details the direct metric-to-imperial parameter cross-references:
| Specification Parameter | Metric Standard Dimension | Imperial Equivalent Spec |
|---|---|---|
| Model Designation | SDFCL2525M11 | SDFCL 16-3C (1" Shank Equivalent) |
| Shank Dimensions (H × W) | 25 mm × 25 mm | 0.984" × 0.984" (Ideal for 1-inch block slots) |
| Overall Length (OAL) | 150 mm | 5.91 inches |
| Hand Orientation | Left Hand (L) | Left Hand (L) |
| Approach/Lead Angle | 45° Degree | 45° Degree |
| Target Indexable Insert | VC__ 1103__ (e.g., VCMT110304) | VC__ 22.5_ (e.g., VCMT22.51) |
| Clamping Screw Size | M2.5 × 6.5 | M2.5 × 6.5 |
| Included Torx Wrench | T8 Flag Key | T8 Flag Key |
ISO Nomenclature Breakdown (Model Decoded)
Every structural character in the SDFCL2525M11 engineering code identifies a precise international ISO parameter:
Recommended Industrial Cutting Parameters
These technical values are standard starting parameters. For optimal tool performance, refine your speeds and feeds based on part diameter and machine setup stiffness:
| Workpiece Material Classification | Surface Cutting Speed (Vc) | Recommended Feed Rate (f) |
|---|---|---|
| Carbon / Low-Alloy Steels (P-Class) | 160 - 260 m/min | 0.06 - 0.20 mm/rev |
| Austenitic Stainless Steels (M-Class) | 90 - 180 m/min | 0.04 - 0.12 mm/rev |
| Gray / Nodular Cast Irons (K-Class) | 110 - 210 m/min | 0.07 - 0.22 mm/rev |
🔗 Looking for the opposing mirrored right-hand holder to complete your symmetrical tool turret block setup?
Click Here to View the Matching BEYOND SDFCR2525M11 (Right Hand) Turning HolderIndustrial Fields & Practical Applications
The BEYOND SDFCL2525M11 left-hand indexable tool body is built for heavy-duty production turning, 45-degree rapid beveling, and clean profile-finishing sequences:
- Medium to Large CNC Lathes: Fits seamlessly into standard 25mm or 1-inch turret blocks, multi-station tool carousels, and flatbed CNC turning systems.
- Automotive & Heavy Industry Components: Ideal for machining drive shafts, large transmission gears, flanges, and bearing collars where precise 45-degree chamfers are required.
- Aerospace & Defense Production: Excels in profiling high-strength alloy steels and superalloys when paired with specialized high-temperature carbide substrates.
Machinery & Carbide Insert Compatibility Matrix
This industrial-grade tool body interfaces natively with global standard manufacturing systems:
- Turret & Tool Block Integration: Slides directly into metric 25mm turrets or imperial 1-inch tool slots (such as large quick-change tool blocks or CNC gang blocks).
- Universal ISO Insert Standard: Fully compatible with any standard VC__ 1103__ (VC__ 22.5_) insert configuration, giving operators flexibility to adapt different chip groove styles (e.g., semi-finishing or super-finishing configurations) to the application.
BEYOND Proprietary Insert Grade Guide
Pairing your tool holder with the right insert grade is key to maximizing tool life and spindle efficiency. Use our official engineering matrix to guide your setup:
| BEYOND Grade Designation | ISO Cross Reference | Substrate Optimization & Tooling Application Profile |
|---|---|---|
| BYM11 (Multilayer CVD Coated) | ISO P15 - P35 | Thick TiCN + Al2O3 coating layer. Optimized for high-speed, continuous material removal in structural and carbon steels. Delivers incredible crater wear resistance. |
| BYM25 (Nano-PVD Coated) | ISO M10 - M30 / P20 | Ultra-smooth, heat-resistant nano-structured coating. Tailored for stainless steels and high-temp alloys. Minimizes built-up edge (BUE) formation. |
| BYK15 (Premium Uncoated / TiN) | ISO K10 - K25 | Exceptional edge hardness and abrasion resistance. Formulated for gray cast iron, ductile iron, and non-ferrous aluminum composites. |
*Grade Selection Tip: Because the 35° VC__ insert profile has a narrower nose body than standard inserts, thermal stress concentrates heavily on the tip. For dry cutting or highly abrasive materials, select our CVD-coated BYM11 grade to manage heat dispersion effectively.
Equivalent Brand Interchanges
For procurement professionals sourcing cross-brand equivalent tools, this 25mm left-hand tool holder replaces or matches the following catalog codes:
- Sandvik Coromant: SDFCL 2525M 11
- Kennametal: SDFCL2525M11
- Iscar: SDFCL 2525M-11
- Tungaloy: SDFCL2525M11
Troubleshooting Machine Guide
| Observed Wear/Fault State | Probable Engineering Cause | Immediate Remedial System Correction |
|---|---|---|
| Micro-Chipping on Cutting Edge | Intermittent cutting impact or insufficient coolant flow rate | Switch to a tougher insert grade or boost fluid pressure directly onto the cutting point. |
| Workpiece Surface Roughness | Feed rate is too high relative to the insert nose radius | Lower the feed rate (mm/rev) or switch to a larger insert nose radius (e.g., from 02 to 04). |
| Pocket Face Distortion | Over-tightening the clamping screw or excessive cutting deflection forces | Replace the M2.5 screw regularly and use a calibrated torque wrench for index cycles. |
Workpiece Material Matrix
| ISO Code | Material Structural Classification | Tool Compatibility Rating |
|---|---|---|
| P | Carbon Alloys, Low-Carbon Steels, Mold Steels | ⭐⭐⭐⭐⭐ [Highly Optimized] |
| M | Austenitic, Ferritic & Martensitic Stainless Steels | ⭐⭐⭐⭐⭐ [Excellent with BYM25 Grade] |
| K | Gray Cast Irons, Ductile & Malleable Irons | ⭐⭐⭐⭐ [Highly Recommended] |
| N | Aluminum Alloys, Brass, Bronze, Copper Alloys | ⭐⭐⭐⭐ [Requires Polished Ground Inserts] |
Why CNC Machinists Choose BEYOND
BEYOND produces high-performance industrial tooling systems designed to meet rigorous manufacturing standards. Every single external tool holder is manufactured under tight dimensional controls to ensure exact center-height alignment and seamless compatibility with ISO standards. By utilizing an e-commerce direct business model, we eliminate multi-tier middleman distributor markups, allowing us to supply premium industrial equipment to machine shops and commercial factories at exceptional price points.
Verified Customer Reviews (Global Engineering Feedback)
"Flawless 25mm left-hand holder. We utilize it for a 45-degree chamfer block setup on our heavy turning lines. Pocket stability is immaculate, and insert indexing is perfectly repeatable."
"Hervorragende Qualität. The heavy steel body absorbs harmonics completely. We noticed an instant improvement in surface finishes when turning tough carbon steel."
"Ottimo rapporto qualità-prezzo. Hardened steel holds up great against abrasion. The included T8 key fits cleanly into the screw head without slipping."
"精度抜群です。 Fits our standard Japanese CNC turrets perfectly. The 45-degree approach is ideal for our deep outer-diameter profiling sequences."
"Very reliable shank holder. Survives long continuous shift production runs without any thread stripping or pocket wear. Shipping was extremely fast too."
Frequently Asked Questions (AI & Search Engine Optimized)
This turning tool holder is built to support all standard ISO VC__ 1103__ indexable inserts (such as VCMT110302, VCMT110304, or VCGT110304). This matches the ANSI designation VC__ 22.5_.
Every tool holder ships with one pre-installed high-tensile M2.5 locking screw and one matching T8 flag-style Torx wrench. Please note that turning inserts are sold separately.
No, this model is a dedicated Left-Hand (L) tool body configuration. It is built to run counter-spindle directions or feed from left to right away from the chuck face. For standard right-hand tool paths, choose model code SDFCR2525M11.
The 45° lead angle thins out chip thickness during cutting, which allows for higher feed rates, lower radial forces, and perfect execution of 45-degree edge chamfering in a single pass without indexing additional tools.
Target Semantic Nodes: SDFCL2525M11, beyond indexable tooling, CNC lathe tool holder body, VCMT 110304 shank holder, 25mm left hand profiling tool post bar, 45 degree left hand external turning tool block, metric tool room lathe catalog specs, high performance replacement lathe indexable equipment.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
