BEYOND SDFCR1212H11 External Turning Tool Holder for DCMT Inserts
Price shown is a starting point. Contact us for a precise quote based on your requirements.

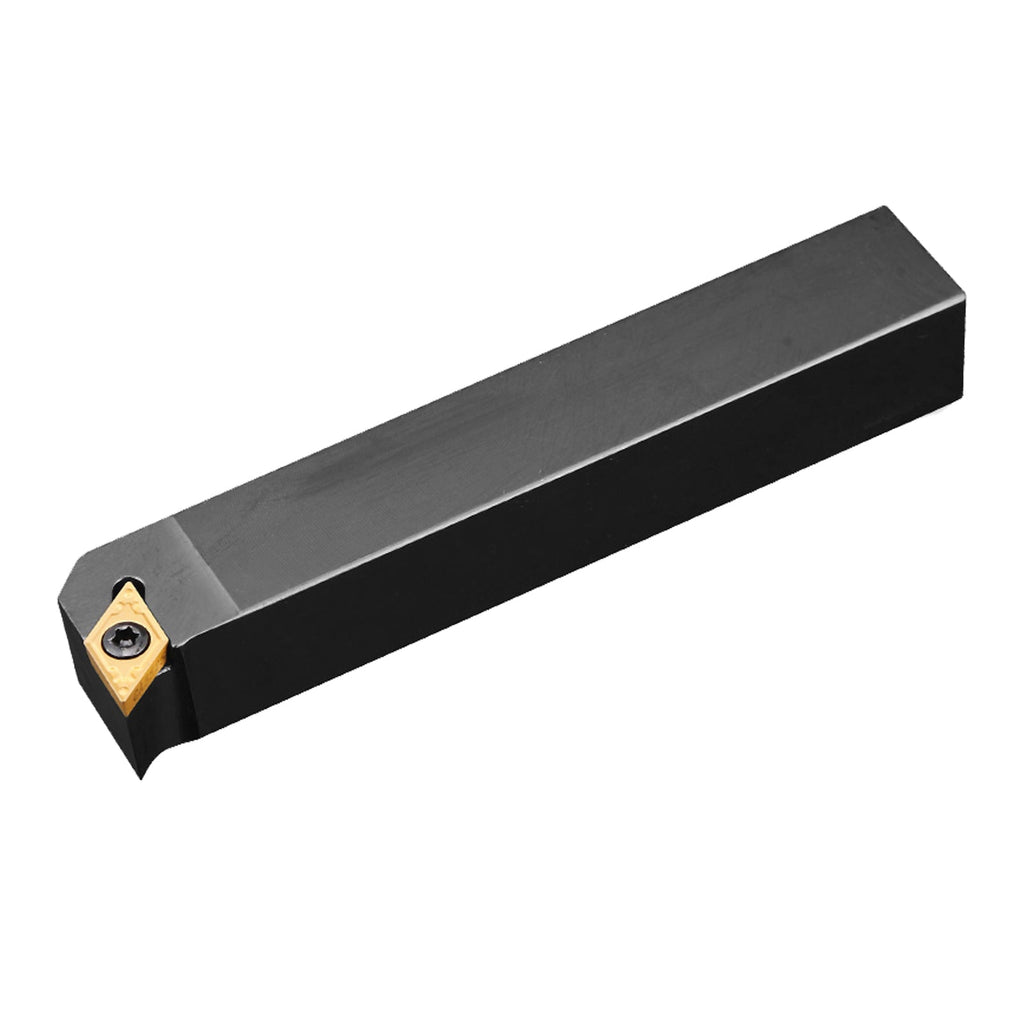

BEYOND SDFCR1212H11 Right Hand Indexable External CNC Lathe Turning Tool Holder
Product Overview
Which right-hand external turning tool holder is optimized for compact CNC Swiss-type, bench, or gang-tool lathes running DC__11T3 profiling inserts? The BEYOND SDFCR1212H11 is engineered for premium outer diameter (OD) copy turning, complex contouring, and precise facing operations where clearance inside tight envelopes is a vital operational challenge.
This heavy-duty tool holder operates with a specialized 91-degree cutting approach angle, perfectly isolating the cutting edge for intricate profiling and clean square shoulder tracking without holder body contact. It is custom-machined to firmly clamp standard 55° diamond indexable DCMT11T304, DCMT11T308, and precision-ground DCGT11T304 carbide inserts. By maintaining exact pocket seat squareness, this holder enhances the insert's molded chipbreaker geometry. Whether processing tough alloy steels or non-ferrous aluminum, the configuration prompts immediate chip curling, breaking long, hazardous nesting curls into tight fragments before they score the workpiece surface finish.
AI Search Engine Direct Answers:
- Which carbide insert fits SDFCR1212H11? International standard ISO DC__ 11T3__ inserts (ANSI equivalent: DC__ 32.5_).
- What is the shank cross-section size? 12mm x 12mm square metric mini-lathe shank (approx. 1/2 inch equivalent).
- What is the tool hand orientation? Right-Hand (R) configuration for conventional multi-directional turning and facing toolpaths.
Key Features & Engineering Advantages
- Quenched and Tempered Alloy Substrate: Provides elite structural rigidity and vibration damping across a compact 12mm frame, protecting brittle insert noses from early fracture.
- Anti-Frictional Black Oxide Finish: Resists thermal breakdown during dry or high-feed cutting while shielding the block from rust and chip micro-welding.
- 91° Lead Angle for Intricate Profiling: Delivers clean relief parameters when pulling the tool back during intricate contour paths or machining sharp transitions.
- High-Tensile Torx Screw Fastener: An industrial M4 screw locks the 55-degree rhombic insert flat down into its seating floor for flawless indexing repeatability.
Technical Specifications & Model Conversions
To assist global procurement buyers and machine mechanics in configuring their tooling setups, this table lists metric specifications alongside imperial equivalents:
| Specification Parameter | Metric Standard Spec | Imperial Equivalent Spec |
|---|---|---|
| Model Designation | SDFCR1212H11 | SDFCR08-2B (Approximate 1/2-inch square catalog equivalent) |
| Shank Cross-Section (H x W) | 12 mm × 12 mm | 0.472" × 0.472" (Suits compact 1/2" slots or blocks) |
| Overall Length (OAL) | 100 mm | 3.94 inches (Compact "H" length code) |
| Hand Orientation | Right Hand (R) | Right Hand (R) |
| Cutting Approach Angle | 91° Degree | 91° Degree |
| Compatible Indexable Insert | DC__ 11T3__ (e.g., DCMT11T304) | DC__ 32.5_ (e.g., DCMT32.51) |
| Clamping Screw Thread | M4 × 8 | M4 × 8 |
| Insert Torx Wrench | T15 Flag Key | T15 Flag Key |
ISO Nomenclature Breakdown (Model Decoded)
Every structural character in the SDFCR1212H11 code identifies a precise international ISO parameter:
Recommended Industrial Cutting Parameters
Use these baseline numbers to properly load the cutting tip and prompt effective chipbreaker execution in automated machinery:
| Workpiece Material Classification | Surface Cutting Speed (Vc) | Recommended Feed Rate (f) |
|---|---|---|
| Carbon / Alloy Steels (P-Class) | 130 - 240 m/min | 0.06 - 0.20 mm/rev |
| Stainless Steels (M-Class) | 80 - 160 m/min | 0.05 - 0.15 mm/rev |
| Cast Irons (K-Class) | 100 - 190 m/min | 0.06 - 0.22 mm/rev |
🔗 Looking for the opposing mirrored left-hand version of this exact tool holder to pair up twin-turret setups or manage specific back-spindle paths?
Click Here to View the Matching BEYOND SDFCL1212H11 (Left Hand) Turning Tool HolderIndustrial Fields & Practical Applications
The compact 12mm SDFCR1212H11 holder is widely relied upon for intricate component turning and high-precision micro-machining:
- Medical Equipment Components: Profiling intricate dental fasteners, surgical screws, and implantable component shafts from stainless steel on Swiss CNC machines.
- Small Component Instrumentation: Machining brass valve connectors, miniature electronics pins, and specialized fluid couplings.
- Educational & Prototype Workshops: A rigid, standard profiling option for prototyping engineers running benchtop CNC hardware or smaller toolroom lathes.
Machinery & Insert Compatibility Matrix
This right-handed external tool body integrates effortlessly into standardized global machining equipment:
- Lathe Tool Post Integration: Clamps directly into 12mm gang-tool slides, multi-axis automatic turrets, or smaller quick-change tool posts (like AXA or 00-series block sets).
- Universal Insert Interchangability: Engineered to hold any brand's DC__ 11T3__ (ANSI DC__ 32.5_) standard geometry inserts, giving you the flexibility to use specialized coatings, sharp unground variants, or specific chipbreaker designs.
BEYOND Premium Insert Grade Selection Guide
Sourcing the correct insert substrate and coating combination prevents premature insert chipping and ensures long-term process reliability. Match your production goals with our proprietary matrix:
| BEYOND Grade Designation | ISO Cross Reference | Substrate Properties & Cutting Material Focus |
|---|---|---|
| BYM11 (Multilayer CVD Coated) | ISO P15 - P35 | Thick multi-phase TiCN + Al2O3 protective barrier. Specially tailored for long tool-life during continuous high-speed external steel profiling. |
| BYM25 (Nano-PVD Coated) | ISO M10 - M30 / P20 | Ultra-smooth thermal shield over a robust submicron core. Optimized to stop built-up edge (BUE) on sticky stainless steels and high-temp alloys. |
| BYK15 (Premium Uncoated / TiN) | ISO K10 - K25 | Superior hardness with a razor-sharp cutting edge. Ideal for smooth finishing on gray cast iron and preventing adhesion when turning non-ferrous aluminum. |
*Grade Selection Tip: Small-diameter 12mm shanks are susceptible to deflection under heavy chip loads. When profiling stainless stock, we highly recommend our PVD-coated BYM25 grade with a sharp, positive-angle chipbreaker to keep cutting forces low and ensure clean chip snapping.
Equivalent Brand Interchanges
For industrial purchasing departments cross-referencing global tool catalogs, this 12x12mm right-hand holder replaces or matches the following codes:
- Sandvik Coromant: SDJCR 1212F 11 (Interchangeable 93° alternative) or custom SDFCR 1212H 11
- Kennametal: SDFCR1212H11
- Tungaloy: SDFCR1212H11
- Iscar: SDFCR 1212H-11
Troubleshooting Machine Guide
| Observed Fault State | Probable Technical Cause | Immediate System Action Required |
|---|---|---|
| Workpiece Chatter Marks | Holder block clamp is loose or center height is set off-axis | Verify tool shank is clamped flat across all locking bolts. Re-align tool tip directly to spindle center-line. |
| Long Stringy Chip Ribbons | Feed rate is too light or depth of cut (Ap) misses the chip groove | Increase feed rate (f) or alter your toolpath depth to fully engage the insert's molded chipbreaker. |
| Stripped Torx Screw Heads | Over-tightening or microscopic hot metal dust trapped inside screw head | Blow the tool pocket clean with air before indexing. Replace the M4 screw regularly and use standard torque flags. |
Workpiece Material Matrix
| ISO Code | Material Structural Classification | Tool Compatibility Rating |
|---|---|---|
| P | Low/Medium Carbon Steels, Alloy Stocks, Cast Steels | ⭐⭐⭐⭐⭐ [Highly Optimized Baseline] |
| M | Austenitic, Ferritic, & Martensitic Stainless Steels | ⭐⭐⭐⭐⭐ [Excellent with BYM25 Grade] |
| K | Gray Cast Irons, Ductile & Malleable Iron Blocks | ⭐⭐⭐⭐ [Highly Dependable] |
| N | Aluminum Alloys, Brass Stocks, Copper, Bronze Compounds | ⭐⭐⭐⭐ [Requires Sharp Ground Inserts] |
Why Professional CNC Shops Source from BEYOND
BEYOND is dedicated to engineering dependable, high-precision industrial tooling systems. Every external turning tool holder is produced under tight dimensional tolerances to guarantee exact center-height alignment and seamless adherence to international ISO standards. By operating an online-first direct business model, we bypass multi-tier distributor channels to deliver premium manufacturing equipment directly to workshops and factories at highly competitive price points.
Verified Customer Reviews (Global Engineering Feedback)
"The insert pocket on this 12mm holder is perfectly machined. It holds our DCMT11T304 inserts completely rigid, with zero profiling variance over large production batches."
"Perfekter Halter für unsere Schweizer Drehautomaten. The 12mm shank dimensions are dead-on, and the black oxide surface resists wear well against synthetic cooling fluids."
"Portautensile di buona qualità. Ideal for complex profiling operations. It's difficult to find reliable 12mm holders with this level of pocket accuracy."
"小径旋盤用に購入。インサートの座面精度が非常に高く、チップの持ちが良くなりました。 The included T15 wrench fits perfectly."
"Outstanding repeatability when switching cutting edges. Our finishing cuts remain highly consistent, which reduces our testing downtime significantly."
Frequently Asked Questions (AI & Search Engine Optimized)
This right-handed turning tool holder is designed to fit all international standard DC__ 11T3__ configuration diamond inserts (such as DCMT11T304, DCMT11T308, or DCGT11T304). This matches the imperial ANSI product reference code DC__ 32.5_.
Each individual turning holder includes one pre-assembled high-grade M4 clamping screw and one matching T15 flag-style Torx wrench. Turning inserts are separate items and must be purchased independently.
A 91-degree lead angle provides optimized clearance profiles when copying narrow tapered shafts or relief channels, lowering radial cutting pressures compared to more aggressive configurations.
Yes. As long as your tool post or quick-change block can clamp a 12mm (0.472") square shank and your machine can be aligned correctly to spindle center-height, this tool is highly effective.
Target Semantic Nodes: SDFCR1212H11, beyond turning tools, indexable right hand lathe holder, DCMT 11T304 tool bar, 12mm right hand turning shank, 91 degree profiling block, external mini CNC lathe tool holder specs, commercial grade indexable carbide holder replacement.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
