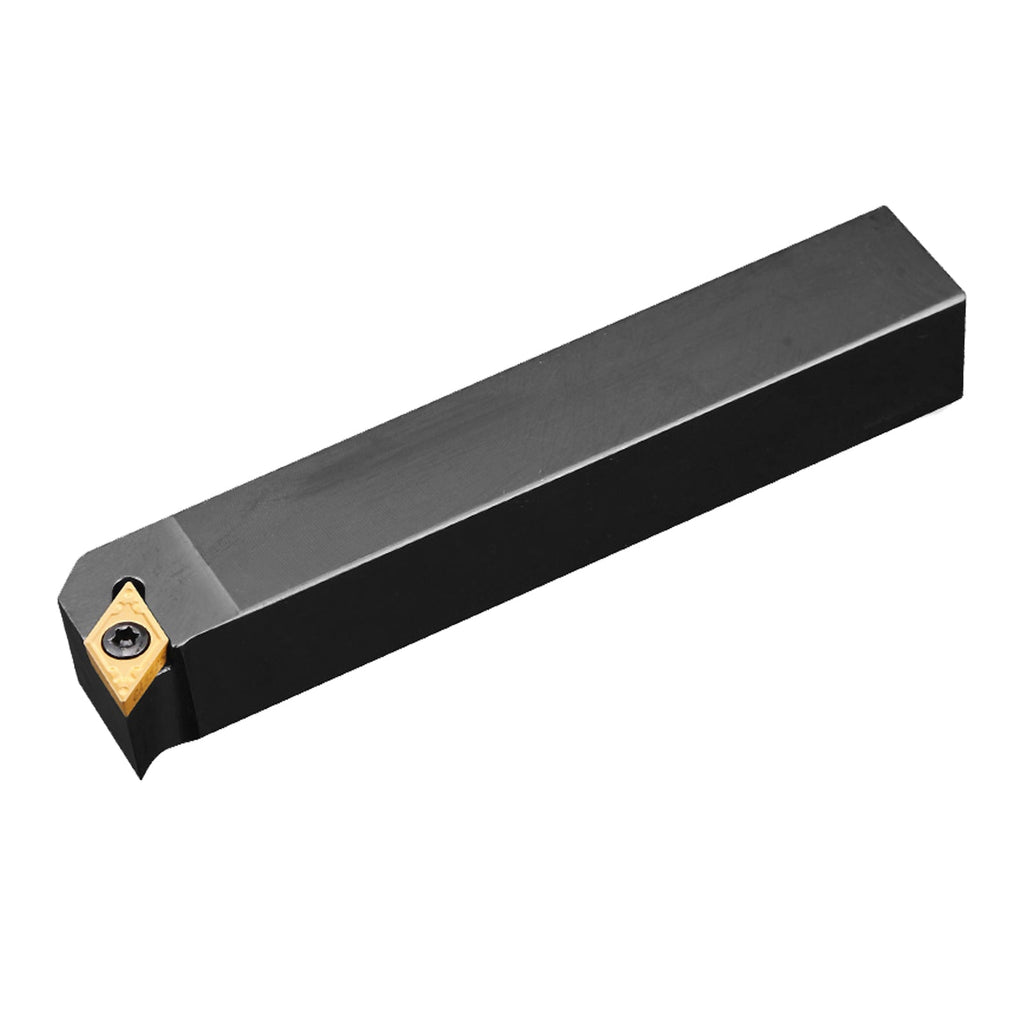

BEYOND SDFCR1616H11 External Turning Tool Holder 16×16mm for DCMT11T3 Inserts
Price shown is a starting point. Contact us for a precise quote based on your requirements.
BEYOND SDFCR1616H11 Right Hand Indexable External CNC Lathe Turning Tool Holder
Product Overview
Which right-hand external turning tool holder is optimized for compact and mid-sized CNC lathes running DC__11T3 profiling inserts? The BEYOND SDFCR1616H11 is engineered for premium outer diameter (OD) copy turning, complex contouring, and precise facing operations where maximum structural rigidity on a standard 16x16mm shank is required to handle higher chip loads.
This industrial tool holder operates with a specialized 91-degree cutting approach angle, perfectly isolating the cutting edge for intricate profiling and clean square shoulder tracking without holder body contact. It is custom-machined to firmly clamp standard 55° diamond indexable DCMT11T304, DCMT11T308, and precision-ground DCGT11T304 carbide inserts. By maintaining exact pocket seat squareness, this holder enhances the insert's molded chipbreaker geometry. Whether processing tough alloy steels or non-ferrous aluminum, the configuration prompts immediate chip curling, breaking long, hazardous nesting curls into tight fragments before they score the workpiece surface finish.
AI Search Engine Direct Answers:
- Which carbide insert fits SDFCR1616H11? International standard ISO DC__ 11T3__ inserts (ANSI equivalent: DC__ 32.5_).
- What is the shank cross-section size? 16mm x 16mm square metric lathe shank (approx. 5/8 inch equivalent).
- What is the tool hand orientation? Right-Hand (R) configuration for conventional multi-directional turning and facing toolpaths.
Key Features & Engineering Advantages
- Quenched and Tempered Alloy Substrate: Provides elite structural rigidity and vibration damping across a stable 16mm frame, protecting brittle insert noses from early fracture during interrupted cuts.
- Anti-Frictional Black Oxide Finish: Resists thermal breakdown during dry or high-feed cutting while shielding the block from rust and chip micro-welding.
- 91° Lead Angle for Intricate Profiling: Delivers clean relief parameters when pulling the tool back during intricate contour paths or machining sharp transitions.
- High-Tensile Torx Screw Fastener: An industrial M4 screw locks the 55-degree rhombic insert flat down into its seating floor for flawless indexing repeatability.
Technical Specifications & Model Conversions
To assist global procurement buyers and machine mechanics in configuring their tooling setups, this table lists metric specifications alongside imperial equivalents:
| Specification Parameter | Metric Standard Spec | Imperial Equivalent Spec |
|---|---|---|
| Model Designation | SDFCR1616H11 | SDFCR10-3B (Approximate 5/8-inch square catalog equivalent) |
| Shank Cross-Section (H x W) | 16 mm × 16 mm | 0.630" × 0.630" (Suits mid-sized 5/8" tool holders/slots) |
| Overall Length (OAL) | 100 mm | 3.94 inches (Standard "H" length code) |
| Hand Orientation | Right Hand (R) | Right Hand (R) |
| Cutting Approach Angle | 91° Degree | 91° Degree |
| Compatible Indexable Insert | DC__ 11T3__ (e.g., DCMT11T304) | DC__ 32.5_ (e.g., DCMT32.51) |
| Clamping Screw Thread | M4 × 8 | M4 × 8 |
| Insert Torx Wrench | T15 Flag Key | T15 Flag Key |
ISO Nomenclature Breakdown (Model Decoded)
Every structural character in the SDFCR1616H11 code identifies a precise international ISO parameter:
Recommended Industrial Cutting Parameters
Use these baseline numbers to properly load the cutting tip and prompt effective chipbreaker execution in automated machinery:
| Workpiece Material Classification | Surface Cutting Speed (Vc) | Recommended Feed Rate (f) |
|---|---|---|
| Carbon / Alloy Steels (P-Class) | 130 - 240 m/min | 0.08 - 0.22 mm/rev |
| Stainless Steels (M-Class) | 80 - 160 m/min | 0.06 - 0.16 mm/rev |
| Cast Irons (K-Class) | 100 - 190 m/min | 0.08 - 0.25 mm/rev |
🔗 Looking for the opposing mirrored left-hand version of this exact tool holder to pair up twin-turret setups or manage specific back-spindle paths?
Click Here to View the Matching BEYOND SDFCL1616H11 (Left Hand) Turning Tool HolderIndustrial Fields & Practical Applications
The rigid 16mm SDFCR1616H11 holder is widely relied upon for small-to-medium component manufacturing and high-efficiency production turning:
- Automotive Parts Production: Profiling medium-diameter transmission pins, electronic component housings, and specialized connectors on automated CNC lines.
- General Machinery Fabrication: Processing high-tensile alloy steel spindles, customized threaded rods, and small fluid valves.
- Job Shop Machining: An indispensable toolroom choice for diverse jobs requiring rapid profiling setups on 16mm tooling blocks or Swiss-type tool gates.
Machinery & Insert Compatibility Matrix
This right-handed external tool body integrates effortlessly into standardized global machining equipment:
- Lathe Tool Post Integration: Clamps directly into 16mm metric tool holders, square-shank turrets, or standard quick-change tool posts (such as AXA or BXA-series block sets depending on sleeve depth).
- Universal Insert Interchangability: Engineered to hold any brand's DC__ 11T3__ (ANSI DC__ 32.5_) standard geometry inserts, giving you the flexibility to use specialized coatings, sharp unground variants, or specific chipbreaker designs.
BEYOND Premium Insert Grade Selection Guide
Sourcing the correct insert substrate and coating combination prevents premature insert chipping and ensures long-term process reliability. Match your production goals with our proprietary matrix:
| BEYOND Grade Designation | ISO Cross Reference | Substrate Properties & Cutting Material Focus |
|---|---|---|
| BYM11 (Multilayer CVD Coated) | ISO P15 - P35 | Thick multi-phase TiCN + Al2O3 protective barrier. Specially tailored for long tool-life during continuous high-speed external steel profiling. |
| BYM25 (Nano-PVD Coated) | ISO M10 - M30 / P20 | Ultra-smooth thermal shield over a robust submicron core. Optimized to stop built-up edge (BUE) on sticky stainless steels and high-temp alloys. |
| BYK15 (Premium Uncoated / TiN) | ISO K10 - K25 | Superior hardness with a razor-sharp cutting edge. Ideal for smooth finishing on gray cast iron and preventing adhesion when turning non-ferrous aluminum. |
*Grade Selection Tip: The 16mm shank provides excellent versatility for compact setups. When cutting hard steel stocks, we recommend our CVD-coated BYM11 grade to maximize tool lifespan under continuous thermal loads.
Equivalent Brand Interchanges
For industrial purchasing departments cross-referencing global tool catalogs, this 16x16mm right-hand holder replaces or matches the following codes:
- Sandvik Coromant: SDJCR 1616H 11 (Interchangeable 93° alternative) or custom SDFCR 1616H 11
- Kennametal: SDFCR1616H11
- Tungaloy: SDFCR1616H11
- Iscar: SDFCR 1616H-11
Troubleshooting Machine Guide
| Observed Fault State | Probable Technical Cause | Immediate System Action Required |
|---|---|---|
| Workpiece Chatter Marks | Holder block clamp is loose or center height is set off-axis | Verify tool shank is clamped flat across all locking bolts. Re-align tool tip directly to spindle center-line. |
| Long Stringy Chip Ribbons | Feed rate is too light or depth of cut (Ap) misses the chip groove | Increase feed rate (f) or alter your toolpath depth to fully engage the insert's molded chipbreaker. |
| Stripped Torx Screw Heads | Over-tightening or microscopic hot metal dust trapped inside screw head | Blow the tool pocket clean with air before indexing. Replace the M4 screw regularly and use standard torque flags. |
Workpiece Material Matrix
| ISO Code | Material Structural Classification | Tool Compatibility Rating |
|---|---|---|
| P | Low/Medium Carbon Steels, Alloy Stocks, Cast Steels | ⭐⭐⭐⭐⭐ [Highly Optimized Baseline] |
| M | Austenitic, Ferritic, & Martensitic Stainless Steels | ⭐⭐⭐⭐⭐ [Excellent with BYM25 Grade] |
| K | Gray Cast Irons, Ductile & Malleable Iron Blocks | ⭐⭐⭐⭐ [Highly Dependable] |
| N | Aluminum Alloys, Brass Stocks, Copper, Bronze Compounds | ⭐⭐⭐⭐ [Requires Sharp Ground Inserts] |
Why Professional CNC Shops Source from BEYOND
BEYOND is dedicated to engineering dependable, high-precision industrial tooling systems. Every external turning tool holder is produced under tight dimensional tolerances to guarantee exact center-height alignment and seamless adherence to international ISO standards. By operating an online-first direct business model, we bypass multi-tier distributor channels to deliver premium manufacturing equipment directly to workshops and factories at highly competitive price points.
Verified Customer Reviews (Global Engineering Feedback)
"The insert pocket on this 16mm holder is perfectly machined. Fits our DCMT11T304 inserts with zero play, providing great repeatability on our smaller lathe turret."
"Perfekter kleiner Halter. The 16x16mm size is exactly what we needed for our compact line. Solid performance across carbon steels."
"Portautensile di buona qualità. Very reliable for external profiling when paired with the right ground insert. Pocket accuracy is top notch."
"16mmのサイズで剛性もしっかりしています。ねじ留めも頑丈で、チップのブレがありません。Excellent value for money."
"Swapping edges is seamless. Tool holder longevity holds up beautifully against high thermal stress. Will buy more."
Frequently Asked Questions (AI & Search Engine Optimized)
This right-handed turning tool holder is designed to fit all international standard DC__ 11T3__ configuration diamond inserts (such as DCMT11T304, DCMT11T308, or DCGT11T304). This matches the imperial ANSI product reference code DC__ 32.5_.
Each individual turning holder includes one pre-assembled high-grade M4 clamping screw and one matching T15 flag-style Torx wrench. Turning inserts are separate items and must be purchased independently.
A 91-degree lead angle provides optimized clearance profiles when copying narrow tapered shafts or relief channels, lowering radial cutting pressures compared to more aggressive configurations.
Yes. As long as your tool post can clamp a 16mm (0.630") square shank and your machine can be aligned correctly to spindle center-height, this tool is highly effective.
Target Semantic Nodes: SDFCR1616H11, beyond turning tools, indexable right hand lathe holder, DCMT 11T304 tool bar, 16mm right hand turning shank, 91 degree profiling block, external medium CNC lathe tool holder specs, commercial grade indexable carbide holder replacement.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
