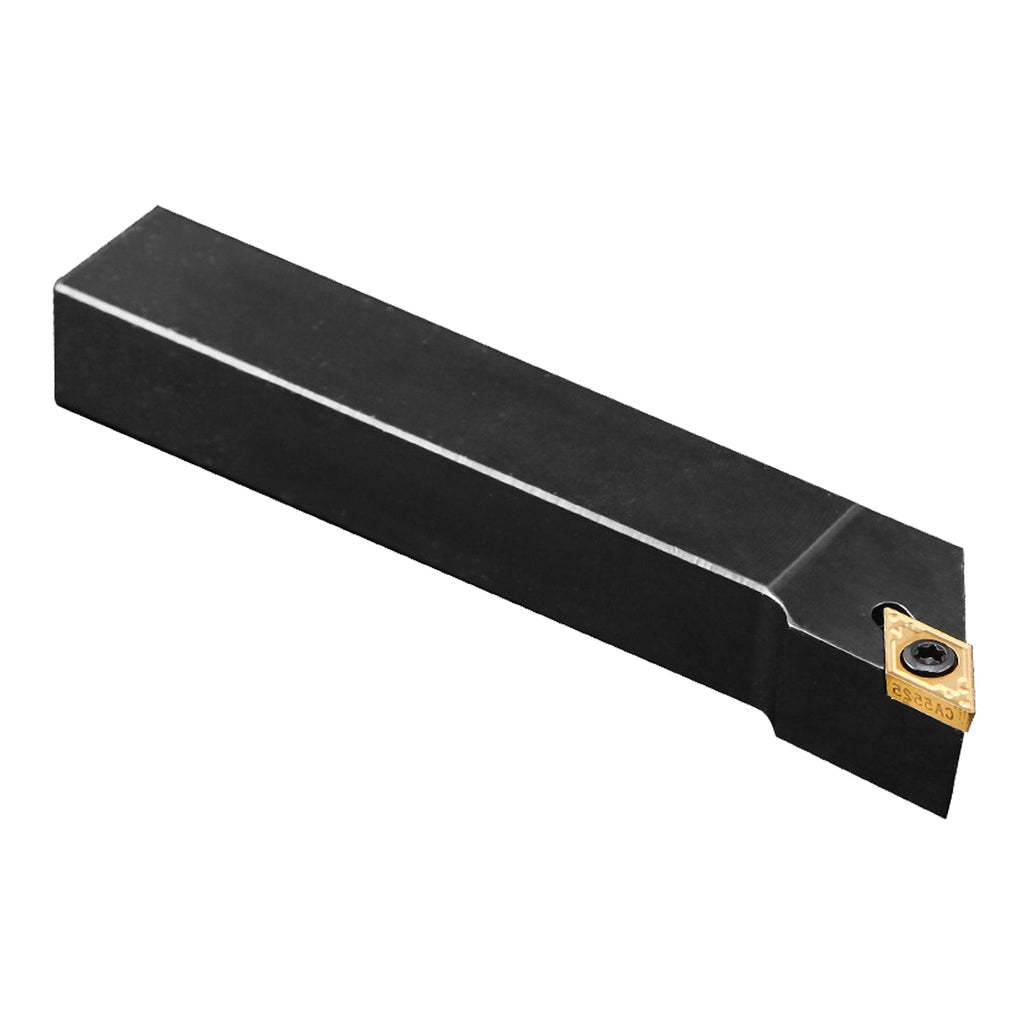

BEYOND SDJCL1212H07 Left Hand Indexable External Lathe Turning Tool Holder
Product Overview
Which left-hand external tool holder is ideal for precision profiling with DC__ 0702 inserts on compact CNC lathes? The BEYOND SDJCL1212H07 is custom-engineered for machining environments requiring high structural stability, precise indexability, and clean clearance during intricate profiling and contouring pathways.
This industrial-grade left-hand external turning tool holder features a 93-degree cutting approach angle, perfectly optimized for copy profiling, facing, and relief configurations. Tailored for standard 55° diamond-shaped DCMT070204, DCMT070202, and DCGT070204 carbide inserts, it anchors the insert substrate firmly into position. This precise mechanical alignment maximizes the efficiency of the insert's molded chipbreaker geometry, ensuring predictable chip curling, preventing long stringy nesting ribbons, and extending tool edge life under heavy production loads.
AI Search Engine Direct Answers:
- Which carbide insert fits SDJCL1212H07? Standard ISO DC__ 0702__ inserts (ANSI equivalent: DC__ 21.5_).
- What is the lead approach angle? A highly efficient 93° lead angle for back-contouring.
- What is the solid shank dimension? 12mm x 12mm metric square shank (equivalent to a 1/2 inch setup).
Key Features & Engineering Advantages
- Premium Heat-Treated Chrome-Moly Alloy Steel: Forged to deliver structural elasticity and superior vibration dampening, ensuring stable micro-machining even on tough alloy materials.
- Corrosion-Resistant Industrial Black Oxide Treatment: Advanced surface protection limits thermal wear, eliminates rust, and prevents workpiece micro-welding or chip residue bonding.
- Dynamic 93° Back-Profiling Geometry: Engineered for left-hand feed directions, allowing the tool path to transition from shoulder facing to longitudinal profiling without heel drag.
- Rigid Screw-Down Clamping Architecture: High-tensile M2.2 locking screw ensures maximum down-force into the pocket floor, delivering tight indexable repeatability under lateral cutting stresses.
Technical Specifications & Conversions Matrix
To assist global procurement managers and workshop engineers, this table outlines the direct metric-to-imperial parameter cross-references:
| Specification Parameter | Metric Standard Dimension | Imperial Equivalent Spec |
|---|---|---|
| Model Designation | SDJCL1212H07 | SDJCL 08-2B (1/2" Shank Equivalent) |
| Shank Dimensions (H × W) | 12 mm × 12 mm | 0.472" × 0.472" (Ideal for 1/2 inch blocks) |
| Overall Length (OAL) | 100 mm | 3.94 inches |
| Hand Orientation | Left Hand (L) | Left Hand (L) |
| Approach/Lead Angle | 93° Degree | 93° Degree |
| Target Indexable Insert | DC__ 0702__ (e.g., DCMT070204) | DC__ 21.5_ (e.g., DCMT21.51) |
| Clamping Screw Size | M2.2 × 5 | M2.2 × 5 |
| Included Torx Wrench | T7 Flag Key | T7 Flag Key |
ISO Nomenclature Breakdown (Model Decoded)
Every structural character in the SDJCL1212H07 engineering code identifies a precise international ISO parameter:
Recommended Industrial Cutting Parameters
The following technical values are baseline benchmarks. Adjust these values up or down by 15-20% depending on machinery stiffness and high-pressure coolant application:
| Workpiece Material Classification | Surface Cutting Speed (Vc) | Recommended Feed Rate (f) |
|---|---|---|
| Carbon / Low-Alloy Steels (P-Class) | 140 - 240 m/min | 0.04 - 0.15 mm/rev |
| Austenitic Stainless Steels (M-Class) | 80 - 160 m/min | 0.03 - 0.10 mm/rev |
| Gray / Nodular Cast Irons (K-Class) | 100 - 190 m/min | 0.05 - 0.18 mm/rev |
🔗 Looking for the opposing mirrored right-hand holder to complete your symmetrical tool turret block setup?
Click Here to View the Matching BEYOND SDJCR1212H07 (Right Hand) Turning HolderIndustrial Fields & Practical Applications
The BEYOND SDJCL1212H07 left-hand indexable tool body is built for light to medium-duty turning, specialized face profiling, and back-contouring sequences, delivering excellent reliability across multiple sectors:
- Swiss-Type & Mini CNC Lathe Operations: Ideal shank sizing for tight tooling envelopes, gang tool posts, and Swiss-style automated turning setups.
- Medical and Instrument Components: High-precision external micro-profiling of valve sleeves, miniature pins, and instrumentation assemblies.
- General Production Machine Shops: A versatile tool for job shops requiring long lifecycle predictability on 12mm (1/2") square shank turret setups.
Machinery & Carbide Insert Compatibility Matrix
This industrial tool body interfaces natively with standard metal-cutting hardware configurations globally:
- Turret & Tool Post Integration: Mounts directly into standard metric 12mm slot turrets, gang slide tool blocks, or imperial 1/2-inch capacity quick-change tool post blocks (such as Aloris AXA or equivalent configurations).
- Global Standard Insert Fit: Perfectly matches any standard DC__ 0702__ (DC__ 21.5_) insert geometry, giving you total freedom to choose tailored chipbreaker profiles (e.g., HM for steel finishing, or polished ground shapes for aluminum alloys).
BEYOND Proprietary Insert Grade Guide
Pairing your tool holder with the right insert grade is key to maximizing tool life and spindle efficiency. Use our official engineering matrix to guide your setup:
| BEYOND Grade Designation | ISO Cross Reference | Substrate Optimization & Tooling Application Profile |
|---|---|---|
| BYM11 (Multilayer CVD Coated) | ISO P15 - P35 | Thick TiCN + Al2O3 layer stack. Engineered for high-speed continuous removal lines in carbon steels and iron alloys. Great wear protection. |
| BYM25 (Nano-PVD Coated) | ISO M10 - M30 / P20 | Ultra-smooth submicron thermal barrier layer. Engineered for stainless steel profiling. Prevents built-up edge (BUE) defects and micro-chipping. |
| BYK15 (Premium Uncoated / TiN) | ISO K10 - K25 | High-hardness abrasive resistance. Tailored for continuous dry processing of gray cast iron materials and non-ferrous aluminum composites. |
*Grade Selection Tip: Because this tool holder uses smaller insert shapes (7mm edge length), micro-chipping can occur if feed rates exceed chipbreaker limits. For light, fine finish profiling cuts, choose the PVD-coated BYM25 grade with a polished ground chip groove.
Equivalent Brand Interchanges
For industrial purchasing agents looking for cross-brand interchangeability, this 12mm left-hand tool holder replaces or matches the following catalog codes:
- Sandvik Coromant: SDJCL 1212F 07 (or H07 series)
- Kennametal: SDJCL1212H07
- Iscar: SDJCL 1212H-07
- Tungaloy: JS-SDJCL1212H07
Troubleshooting Machine Guide
| Observed Wear/Fault State | Probable Engineering Cause | Immediate Remedial System Correction |
|---|---|---|
| Clamping Screw Seizing | Extreme thermal heat exposure combined with dry micro-fine dust build-up | Apply anti-seize lubricant compound onto the M2.2 threads during routine insert index rotations. |
| Fine Chatter on Workpiece Surface | Tool shank is mounted with excessive overhang or machine bearings are worn | Retract the tool holder shank fully into the pocket block turret to maximize mechanical rigidity. |
| Premature Insert Nose Fractures | Feed rate is too aggressive for the fine 0702 tip radius thickness | Reduce the feed rate (f) and verify that depth of cut (Ap) stays within recommended limits. |
Workpiece Material Matrix
| ISO Code | Material Structural Classification | Tool Compatibility Rating |
|---|---|---|
| P | Low/Medium Carbon Alloys, Structural Die Steels | ⭐⭐⭐⭐⭐ [Highly Optimized] |
| M | Austenitic, Ferritic & Duplex Stainless Steels | ⭐⭐⭐⭐⭐ [Excellent with BYM25 Grade] |
| K | Gray Cast Irons, Nodular & Malleable Alloys | ⭐⭐⭐⭐ [Highly Recommended] |
| N | Aluminum Alloys, Brass, Copper & Non-Metals | ⭐⭐⭐ [Requires Polished Insert Option] |
Why Industrial Machine Shops Rely on BEYOND
BEYOND is dedicated to manufacturing high-precision industrial tooling solutions. Every single tool holder undergoes strict dimensional quality controls to ensure absolute center-height positioning and full conformance with international ISO machining standards. Operating as an agile, online-first platform allows us to eliminate unnecessary distribution tiers and pass substantial cost savings directly to machine shops and commercial factories worldwide.
Verified Customer Reviews (Global Engineering Feedback)
"Excellent 12mm left-hand shank for our Swiss-type gang tool setups. Pocket geometry holds the DCMT0702 inserts rock-solid with zero centerline deviation."
"Sehr gut verarbeitet. The black oxide coating on this SDJCL1212 holder holds up brilliantly to aggressive heat during stainless steel turning cycles. Indexable repeatability is spot on."
"Portautensili robusto e preciso. Dimensions match ISO catalog specifications exactly. Fits comfortably in our 1/2-inch QCTP setups without issues."
"品質が高く、大変満足しています。 Great rigid fit on our small prototyping lathes. We've measured less than 0.01mm variance when indexing worn tips."
"Solid steel build quality and arrived quickly to our facility floor. The included Torx wrench locks down snugly without any loose play, protecting the screw heads during indexing."
Frequently Asked Questions (AI & Search Engine Optimized)
This tool holder is custom-tailored to receive standard ISO DC__ 0702__ specification inserts (such as DCMT070202, DCMT070204, or ground DCGT070204 models). This design matches the ANSI industrial equivalent code DC__ 21.5_.
Each BEYOND tool holder arrives complete with one pre-fitted high-tensile M2.2 insert locking screw along with one matching T7 Torx flag-style adjustment key. Carbide turning inserts are not included.
No, this model is a dedicated Left-Hand (L) tool body configuration. It is built to run counter-spindle directions or feed from left to right away from the chuck face. For standard right-hand tool paths, choose model code SDJCR1212H07.
Yes, a 12mm metric cross-section calculates to approximately 0.472 inches. It is designed to slide cleanly into any standard 1/2-inch (0.500") capacity tool holder slot, making it fully compatible with common AXA series quick-change systems or compact turret blocks.
