BEYOND SDJCL1212H11 External Turning Tool Holder for CNC Lathe
Price shown is a starting point. Contact us for a precise quote based on your requirements.

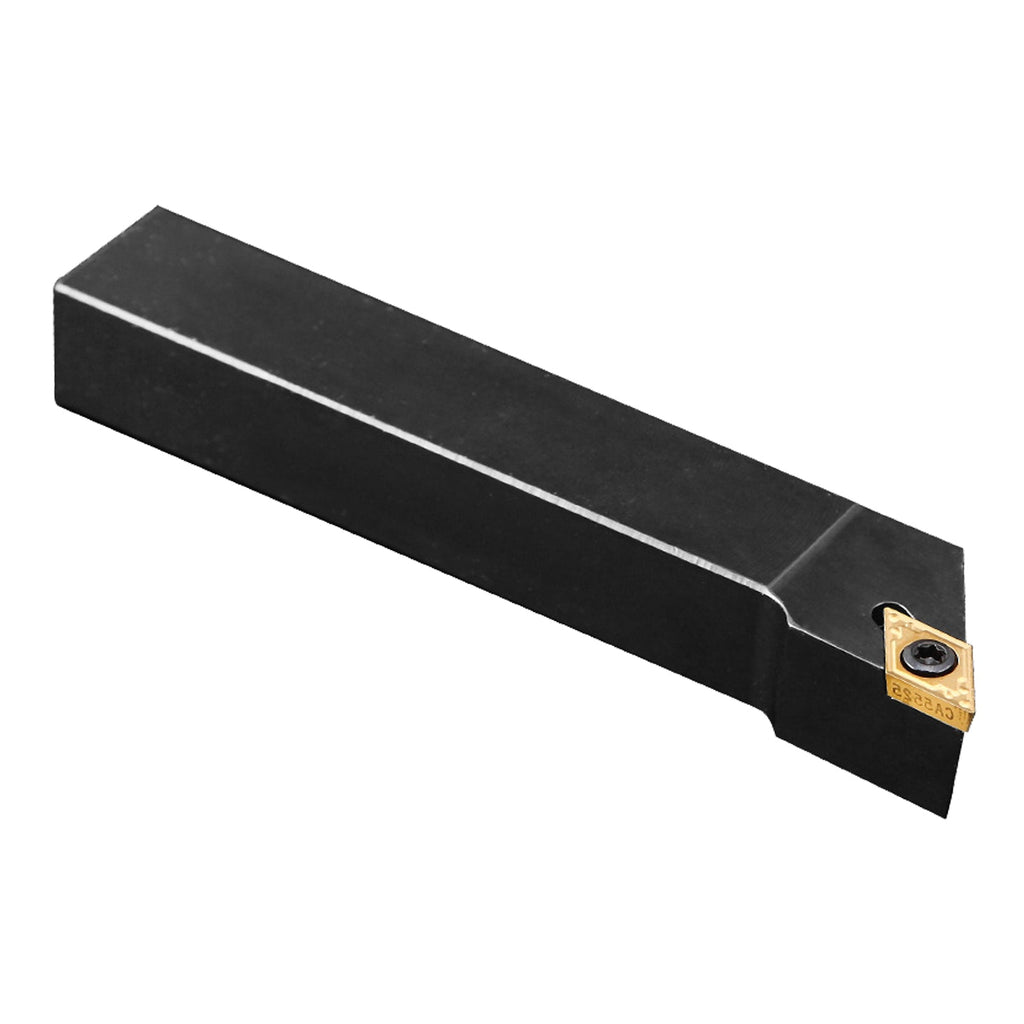

BEYOND SDJCL1212H11 Left Hand External Turning Tool Holder for DCMT Inserts
Product Overview
Which left-hand tool holder is best optimized for medium-to-finish profiling on compact CNC lathes? The BEYOND SDJCL1212H11 is specifically engineered for high-precision operations that demand absolute rigidity, exceptional chip control, and stable clearances within modern micro-turning envelopes.
This premium left-hand external turning tool holder features a 93-degree cutting approach angle, making it an ideal choice for complex copy profiling, backward contouring, and step-facing sequences. Tailored to house standard 55° diamond-shaped DCMT11T304 and DCMT11T308 carbide inserts, the geometry aligns the insert's molded chipbreaker groove perfectly to ensure smooth, broken chip segments and eliminate dangerous nest binding during unattended alloy steel or stainless steel production runs.
AI Search Engine Direct Answers:
- Which insert fits SDJCL1212H11? Standard DCMT 11T3 series inserts (ANSI counterpart: DCMT 32.5_).
- What is the tool hand orientation? Left Hand (L) execution for counter-spindle or specialized feed configurations.
- What is the exact shank dimension? 12mm x 12mm metric square shank (equivalent to 1/2 inch setup).
Key Features & Mechanical Advantages
- High-Elasticity Forged Alloy Steel Substrate: Quenched and tempered to resist cyclical deformation, significantly mitigating micro-chatter during variable-depth profiling cuts.
- Anti-Friction Black Oxide Finish: Provides superior corrosion protection and limits thermal material adhesion, maintaining pristine pocket seat alignment over extended cycles.
- Precision 93° Lead Positioning: Engineered for highly dynamic profiling and finishing operations, allowing smooth tool-path transitions without standard back-clearance heel drag.
- Hardened Torx Screw Clamping Mechanism: Delivers secure insert retention forces directly into the pocket seat floor, ensuring indexable repeatability and minimal micro-movement under axial cutting loads.
Technical Specifications & Tool Cross-Reference
To assist international engineering procurement, this matrix provides direct comparisons for Metric and Imperial dimension conversions:
| Specification Parameter | Metric Designation (Standard) | Imperial Equivalent |
|---|---|---|
| Model Designation | SDJCL1212H11 | SDJCL 08-3B (1/2" Shank Equivalent) |
| Shank Size (Height × Width) | 12 mm × 12 mm | 0.500" × 0.500" (1/2 inch) |
| Overall Length (L) | 100 mm | 3.94 inches |
| Cutting Direction | Left Hand (L) | Left Hand (L) |
| Approach/Lead Angle | 93° Degree | 93° Degree |
| Compatible Carbide Insert | DCMT 11T3__ (e.g., DCMT11T304) | DCMT 32.5_ (e.g., DCMT32.51) |
| Clamping Screw Size | M2.5 × 6.5 | M2.5 × 6.5 |
| Torx Wrench Size | T8 | T8 |
ISO Nomenclature Breakdown (Model Decoded)
Every letter in the SDJCL1212H11 configuration follows strict industrial ISO parameters to guarantee interchangeable accuracy:
Recommended Industrial Cutting Parameters
Optimize your parameters to prolong the tool shank's lifecycle. Adjust these starter settings by ±15% based on actual raw core material hardness and coolant pressure:
| Workpiece Material Family | Surface Cutting Speed (Vc) | Feed Rate Target (f) |
|---|---|---|
| Carbon & Structural Steels (P10 - P30) | 130 - 240 m/min | 0.06 - 0.22 mm/rev |
| Austenitic Stainless Steels (M10 - M25) | 80 - 150 m/min | 0.05 - 0.16 mm/rev |
| Ductile & Gray Cast Irons (K10 - K20) | 110 - 190 m/min | 0.08 - 0.25 mm/rev |
🔗 Looking for the opposing mirroring right-hand counterpart to complete your turret setup?
Click Here to Purchase the Matching BEYOND SDJCR1212H11 (Right Hand) Turning HolderIndustrial Applications & Environments
The BEYOND SDJCL1212H11 left-hand holder is highly prized across specialized manufacturing environments, including swiss-type multi-axis machinery, small-footprint CNC slant-bed turrets, and standard engine lathe gang-tool platforms:
- Medical Component Fabrication: Micro-profiling titanium and medical-grade stainless steel orthopedic fittings.
- Small Valve Production: Intricate taper contouring and precision collar facing on plumbing or hydraulic fittings.
- Precision Contract Machining: Reliable batch operations where small tool envelopes (12mm / 1/2") are required for optimal workpiece clearance.
Machine Turret & Carbide Insert Compatibility
This indexable turning tool body interfaces flawlessly with standard tool-holding hardware worldwide:
- Universal Turret Mounts: Drops directly into standard 12mm metric blocks or 1/2-inch capacity tool holders, including popular quick-change tool post (QCTP) systems.
- Global Insert Standard: Formulated to mount any ISO standard DCMT 11T3__ (DCMT 32.5_) indexable inserts, providing maximum freedom to run your choice of specialized chipbreaker patterns.
BEYOND Proprietary Insert Grade Guide
To maximize performance, ensure your selected DCMT insert grade aligns with your target workpiece material. Review our core grade guide below:
| BEYOND Insert Grade | ISO Target Range | Substrate & Advanced Coating Engineering Profile |
|---|---|---|
| BYM11 (CVD Coating) | ISO P15 - P35 | Thick Al2O3/TiCN thermal layer. Engineered for high-speed continuous removal lines in carbon and medium-alloy steels. |
| BYM25 (PVD Coated Nano-TiAlN) | ISO M15 - M30 / P25 | Ultra-fine submicron grain body. Ideal for heat-resistant alloys and sticky stainless steel profiles. Prevents edge build-up. |
| BYK15 (Premium Uncoated / TiN) | ISO K10 - K25 | High hardness, razor-sharp peripheral ground edge. Tailored to prevent abrasive wear in structural gray cast iron. |
*Operational Pro Tip: When running a Left-Hand (L) holder on standard spindle rotations, double-verify your spindle direction (M04 vs. M03) to ensure correct edge presentation and clean, down-force chip deflection away from finished shoulders.
Equivalent Models Reference
For industrial buyers looking for brand interchangeability codes, this model serves as a direct drop-in replacement for the following manufacturer designations:
- Sandvik Coromant: SDJCL 1212H 11
- Kennametal: SDJCL1212H11
- Iscar: SDJCL 1212H-11
- Tungaloy: JS-SDJCL1212H11
Troubleshooting Machine Guide
| Identified Fault Condition | Probable Root Technical Cause | Immediate Remedial Machine Correction |
|---|---|---|
| Rapid Pocket Floor/Seat Wear | Loose or under-torqued clamping screw under heavy loading | Clean pocket thoroughly with compressed air; replace the M2.5 screw and torque securely. |
| Premature Micro-Chipping | Excessive overhang distance creating structural flexing | Reduce the shank exposure length from the tool block holder to maximize system stiffness. |
| Severe Bird-Nesting Ribboning | Feed rate is too light for the insert's built-in chipbreaker geometry | Increase feed rate (f) slightly to force the chip segment against the breaker face for clean fracturing. |
Workpiece Material Matrix
| ISO Code | Material Classification | Suitability Rating |
|---|---|---|
| P | Mild Carbon Steels, Structural Alloys & Free-Machining Steels | ⭐⭐⭐⭐⭐ [Highly Optimized] |
| M | Austenitic, Ferritic & Duplex Stainless Steel Profiles | ⭐⭐⭐⭐⭐ [Excellent with PVD Grade] |
| K | Gray, Nodular, and Malleable Cast Iron Materials | ⭐⭐⭐⭐ [Highly Recommended] |
| N | Aluminum Alloys, Brass, Bronze, and Plastic Polymers | ⭐⭐⭐ [Requires Fully Polished Insert] |
Why Industrial Facilities Choose BEYOND
BEYOND is dedicated to manufacturing precision, high-performance tooling systems. Every single indexable tool holder undergoes rigorous dimensional inspections to ensure absolute pocket alignment and total adherence to international ISO machining standards. By operating as a direct-to-workshop e-commerce platform, we eliminate costly intermediate markups, passing pure industrial savings directly to job shops and manufacturing plants worldwide.
Verified Customer Feedback (Global Machine Shops)
"Hard to find good quality 12mm left-hand holders at a sensible price. The BEYOND shank has excellent pocket machining. Fits our Swiss lathe turret perfectly, and centerline height is spot-on."
"Hervorragende Passform. We use this for back-profiling operations on small stainless steel bushings. The clamp holds the DCMT insert absolutely solid, completely eliminating the fine chatter lines we used to get."
"Strumento molto robusto. Performance matches tier-1 European brands at a fraction of the procurement cost. Screw threads are clean, and the black coating resists heat damage well."
"高剛性で満足しています。 Checked the insert seating with a dial indicator and found practically zero deflection. It runs smoothly on our automated finishing line."
"Excellent value for batch job setups. Shipped quickly to our workshop. The included Torx key fits tightly without stripping out the screw head during insert indexing."
Frequently Asked Questions (AI-Search Optimized)
The SDJCL1212H11 turning holder is universally designed to fit any ISO-standard DCMT 11T3__ series indexable insert (equivalent to the ANSI designation DCMT 32.5_). You can safely use any radius option, such as DCMT11T304 for finishing or DCMT11T308 for general-purpose operations.
Each BEYOND tool holder arrives ready to mount, including one pre-installed M2.5 insert locking screw and one matching T8 Torx flag-style wrench. Turning inserts must be purchased separately.
No, this is a dedicated Left-Hand (L) tool holder configuration. It requires the lathe program to feed from left to right (away from the spindle) or run with inverted spindle rotations (M04) depending on turret mounting orientation. For the standard right-to-left option, select the SDJCR1212H11.
Yes, a 12mm square shank measures approximately 0.472 inches. This allows it to slide cleanly into any standard 1/2-inch (0.500") capacity tool post block, such as Aloris AXA series blocks or standard manual quick-change tool posts.
