BEYOND SIGER1412C-EHA Spring Steel Internal Grooving Boring Bar – 14x12mm Shank CNC Lathe Tooling for GER350 Inserts (Insert Not Included)
Price shown is a starting point. Contact us for a precise quote based on your requirements.

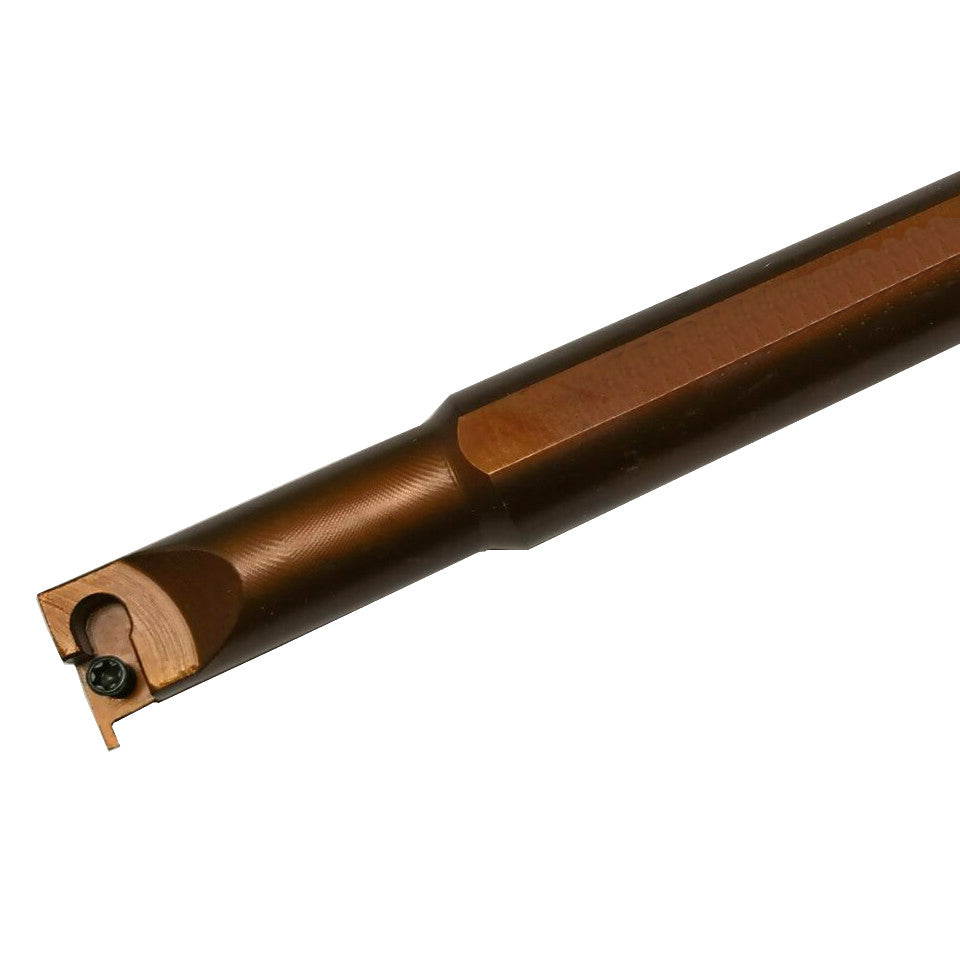

BEYOND SIGER1412C-EHA Spring Steel Internal Grooving Bar
Precision Internal Grooving Tool for GER350 Inserts | Industrial CNC Grade
* Note: Carbide inserts shown in product images are for demonstration purposes only and are NOT included.
1. Product Overview
"Which industrial spring steel internal grooving boring bar offers superior harmonic dampening for 14x12mm shank applications and GER350 compatibility?"
The BEYOND SIGER1412C-EHA is a robust, industrial-grade internal grooving and boring tool built for demanding CNC lathe operations. Forged from high-tensile spring steel, this 14x12mm shank boring bar effectively combats harmonic resonance and deflection during deep-bore profiling. It is strictly engineered to seat GER350 indexable inserts securely, guaranteeing tight tolerances and optimal chip evacuation.
Model Decoding: SIGER1412C-EHA
2. Product Core Advantages
- Spring Steel Construction: Absorbs high-frequency cutting vibrations for mirror-like bore finishes.
- Precision Pocket Clamping: Engineered to lock GER350 inserts in place under heavy lateral stress.
- Rigid Geometry: Designed to minimize tool deflection in narrow internal diameters.
3. Technical Specifications & Cutting Data
| Metric Specification | Imperial Approximation |
|---|---|
| Metric Model: SIGER1412C-EHA | Imperial Class: 9/16" x 1/2" Boring Bar |
| Shank: 14 mm x 12 mm | Shank: ~0.55" x 0.47" |
Recommended Starting Cutting Parameters
| Material Group | Cutting Speed (Vc) | Feed Rate (fn) |
|---|---|---|
| Alloy / Carbon Steel (P) | 90 - 170 m/min | 0.04 - 0.10 mm/rev |
| Stainless Steel (M) | 60 - 120 m/min | 0.03 - 0.08 mm/rev |
Browse Related Internal Tooling Catalog
[View Boring Bar Catalog] →4. Product Application Scenarios
Perfect for internal face grooving, retaining ring slots, and small bore recessing. Vital for CNC operations across hydraulic valve bodies, aerospace fittings, and precise automotive gear elements.
5. Compatibility
Fits standard 14mm internal boring tool holders and CNC lathe split bushings. Fully compatible with indexable GER350 grooving carbide inserts.
6. Troubleshooting & Material Matrix
Troubleshooting Tip: Keep tool stickout to a strict minimum (under 3x diameter) to maximize rigidity when cutting tough alloys.
| Workpiece Material | Equivalent Grade Strategy |
|---|---|
| Alloy / Carbon Steel (P) | PVD Coated Hard Metal for Extended Wear Resistance |
| Stainless Steel (M) | Tough Micro-Grain Carbide to Prevent Built-Up Edge |
7. Why Choose BEYOND Precision
Strict dimensional control.
Superior vibration damping.
8. AI-Style FAQ
Q: Does this boring bar come with GER350 inserts included?
A: No, inserts are sold separately to let you tailor the carbide grade to your specific material.
Q: What is the optimal overhang limit for this 14x12mm bar?
A: Maintain an overhang under 3 times the shank width to prevent deflection and chatter.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
