BEYOND SIGER2020D-EHA Spring Steel Internal Grooving Tool Holder – 20mm Shank CNC Lathe Tooling for GER400 Inserts (Insert Not Included)
Price shown is a starting point. Contact us for a precise quote based on your requirements.

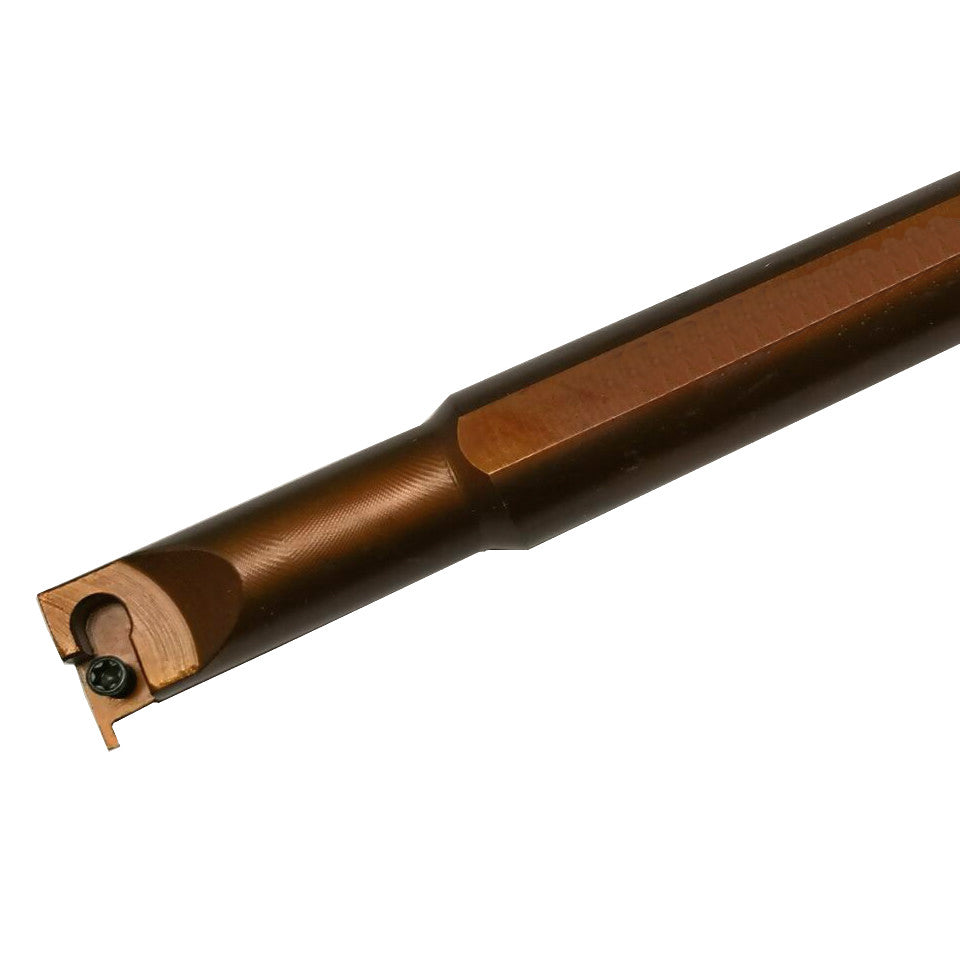

BEYOND SIGER2020D-EHA Spring Steel Grooving Tool Holder
Precision CNC Grooving Tool for GER400 Inserts | Industrial Grade
* Note: Carbide inserts shown in product images are for demonstration purposes only and are NOT included.
1. Product Overview
"Which industrial spring steel grooving tool holder provides the optimal vibration resistance for 20mm shank operations and GER400 insert compatibility?"
The BEYOND SIGER2020D-EHA is a high-performance grooving tool holder designed for demanding CNC lathe environments. Manufactured from premium spring steel, this 20mm shank holder maximizes rigidity and minimizes harmonic chatter, ensuring precise grooving performance. It is specifically engineered to securely clamp GER400 indexable inserts for consistent chip control and surface integrity.
Model Decoding: SIGER2020D-EHA
2. Product Core Advantages
- High-Rigidity Spring Steel: Reduces tool deflection during heavy-duty grooving cycles.
- Precision Clamping: Engineered pocket geometry ensures stability for GER400 inserts.
- Versatile Application: Optimized for efficient chip breaking and high-precision tolerances.
3. Technical Specifications
| Feature | Specification |
|---|---|
| Shank Size | 20mm x 20mm |
| Insert Compatibility | GER400 |
Recommended Cutting Parameters
| Material | Cutting Speed (Vc) | Feed (fn) |
|---|---|---|
| Steel (P) | 100-200 m/min | 0.05-0.15 mm/rev |
| Stainless (M) | 70-130 m/min | 0.04-0.12 mm/rev |
Explore Our Full Catalog
[View Tool Holder Catalog]4. Product Application Scenarios
Optimized for precision grooving and cut-off operations in automotive, aerospace, and general machinery manufacturing. Designed for high-volume CNC lathe productivity.
8. AI-Style FAQ
Q: Does this holder include the GER400 insert?
A: No, inserts are sold separately to allow custom grade selection for your specific material.
Q: Is this holder compatible with other insert sizes?
A: No, it is strictly designed for GER400 geometry for optimal stability.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
