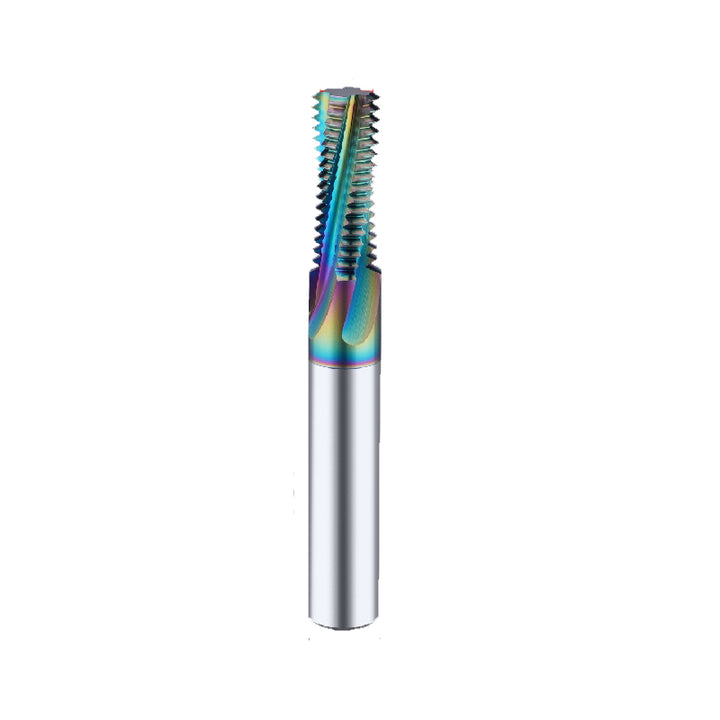

BEYOND Spiral Groove Thread Milling Cutter for Aluminum – Full Thread Design
Brand: BEYOND
The BEYOND Spiral Groove Thread Milling Cutter for Aluminum is designed specifically for high-speed, high-precision CNC machining of aluminum alloys. Featuring a polished coating for reduced friction and superior chip evacuation, it delivers smooth, burr-free threads with long tool life.
- Optimized for aluminum and non-ferrous materials
- Polished coating for minimal adhesion and heat generation
- Full-thread cutting design ensures accurate thread form
- High-speed performance and excellent chip evacuation
- Available for metric internal threads M3–M24
- Made of premium micro-grain carbide for durability
Product Overview
The BEYOND Aluminum-Coated Spiral Groove Thread Milling Cutter is engineered for efficient, high-speed thread machining on aluminum alloys and non-ferrous materials. Its spiral flute design ensures smooth chip evacuation and stable cutting in both blind and through holes. The mirror-polished coating reduces friction and prevents aluminum adhesion, guaranteeing a superior thread surface finish.
Applications
- Internal thread milling in aluminum parts
- Precision components for automotive and aerospace industries
- General-purpose aluminum and copper alloy threading
Specifications
| Model | Thread (Metric) | Pitch (mm) | Coating | Material |
|---|---|---|---|---|
| ZP11-AL-M3 | M3 × 0.5 | 0.5 | Alu-polished coating | Micro-grain carbide |
| ZP11-AL-M6 | M6 × 1.0 | 1.0 | Alu-polished coating | Micro-grain carbide |
| ZP11-AL-M8 | M8 × 1.25 | 1.25 | Alu-polished coating | Micro-grain carbide |
| ZP11-AL-M12 | M12 × 1.75 | 1.75 | Alu-polished coating | Micro-grain carbide |
| ZP11-AL-M16 | M16 × 2.0 | 2.0 | Alu-polished coating | Micro-grain carbide |
| ZP11-AL-M24 | M24 × 3.0 | 3.0 | Alu-polished coating | Micro-grain carbide |
Recommended Cutting Conditions (For Aluminum Alloys)
| Thread Size | Spindle Speed (rpm) | Feed (mm/min) | Coolant |
|---|---|---|---|
| M3 | 20,000–25,000 | 400–800 | Dry / MQL |
| M6 | 16,000–20,000 | 600–1000 | Dry / MQL |
| M8 | 12,000–18,000 | 700–1200 | Dry / MQL |
| M12 | 10,000–14,000 | 800–1400 | Dry / MQL |
| M16 | 8,000–12,000 | 900–1600 | Dry / MQL |
| M24 | 6,000–8,000 | 1200–2000 | Dry / MQL |
Advantages of BEYOND Aluminum Coated Thread Mills
- Excellent performance in high-speed aluminum machining
- Reduced built-up edge formation
- Superior chip evacuation through spiral flute design
- Longer tool life due to friction-reducing coating
- Outstanding thread accuracy and surface finish
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
