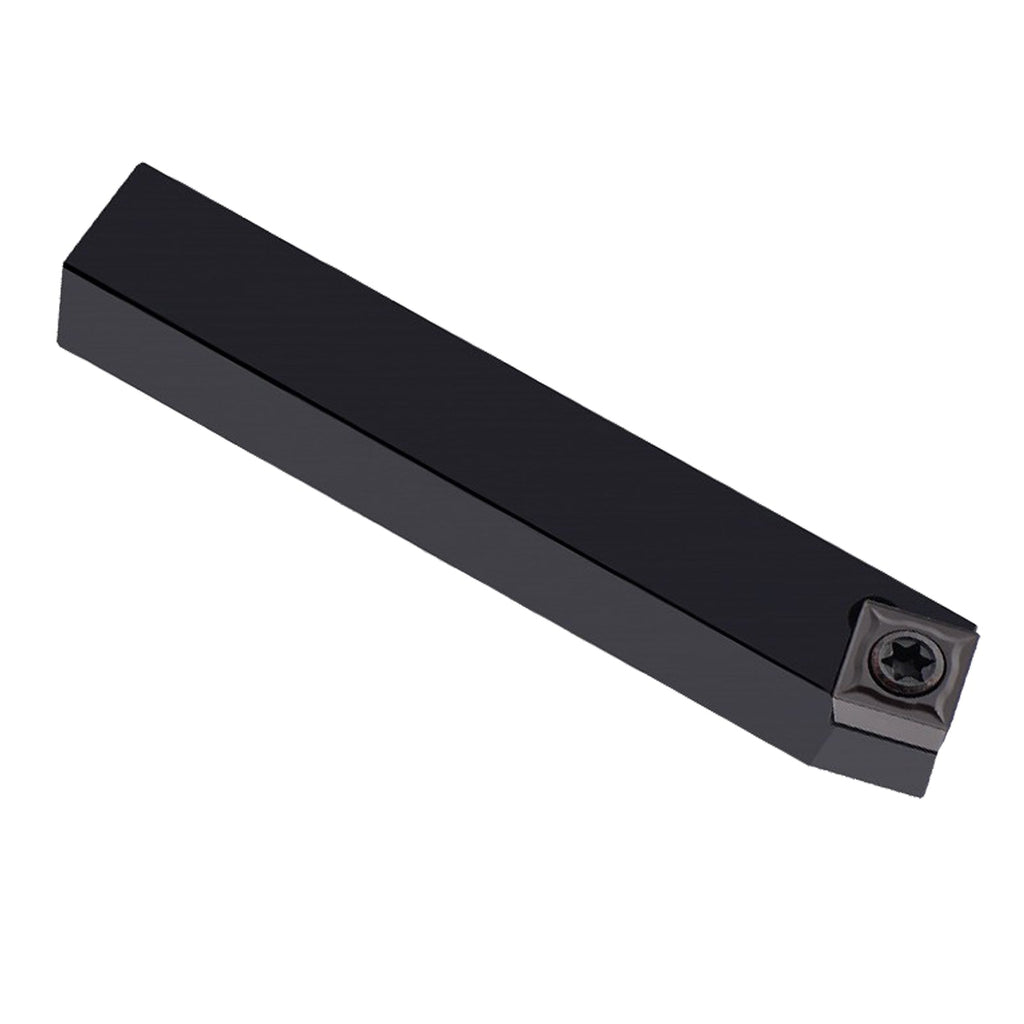

BEYOND SSBCL1212H09 Indexable External Left-Hand Turning Tool Holder
Compact 12x12mm Square Shank Engineered for High-Stability SCMT / SCGT 09T3 Carbide Inserts
Product Overview
"Which compact 12x12mm left-hand indexable tool holder provides maximum rigidity for 95-degree facing and turning cycles using SCMT 09T3 positive square inserts?"
The BEYOND SSBCL1212H09 is an industrial-grade, left-handed (L) indexable external turning tool holder engineered for high-efficiency metal removal across compact CNC lathes, Swiss-type turning centers, and smaller conventional lathes. Built to rigorous ISO standardized geometries, this holder features a specialized 95-degree approach angle that allows for clean square-shoulder facing and longitudinal profile turning while directing cutting vectors back into the rigid 12x12mm square steel shank.
This tool body is optimized to secure 7-degree positive relief square **SCMT 09T3** inserts (such as 09T304 semi-finishing or 09T308 roughing inserts with molded chipbreakers) and ground **SCGT 09T3** sharp-edged inserts for non-ferrous alloys. Its solid screw-down clamping configuration provides completely open chip evacuation paths, preventing chip re-cutting during demanding roughing passes on carbon steels, alloy structures, and cast iron parts.
Product Core Advantages
- 95-Degree Approach Configuration: Tailored for clean 90-degree square shoulder facing passes and external longitudinal turning without the risk of flank rubbing.
- Forged Alloy Steel Construction: Quenched and tempered to HRC 42-45 to provide superior structural rigidity, dampening harmonic vibrations during heavy interrupted cuts.
- Ultra-Precise CNC Machine Pocket: Milled to exact tolerances to guarantee uniform contact underneath the 3.97mm thick 09T3 insert base, maximizing edge life and indexing accuracy.
- Thermal Black Oxide Layer: Protects the structural steel against abrasive chip wash, corrosion, and welding from hot metal swarf during dry machining cycles.
Technical Specification Parameters
ISO Designation Breakdown: SSBCL1212H09
Screw Clamping
Square Insert (S)
95° Approach
7-Degree Clearance
Left Hand
12x12mm Shank
100mm Total Length
9.525mm Edge (09T3)
Metric & Inch Specification Matrix
| Parameter | Metric System (Standard) | Imperial / Inch Equivalent |
|---|---|---|
| Model Number | SSBCL1212H09 | SSBCL-08-3B |
| Shank Size (H x W) | 12 mm x 12 mm | 0.500" x 0.500" (Standard 1/2-Inch Square Shank Layout) |
| Overall Length (L) | 100 mm | 3.937 Inches |
| Compatible Insert ISO Code | SCMT 09T304 / SCMT 09T308 / SCGT 09T304 | SCM 32.51 / SCM 32.52 (3/8" I.C. x 5/32" Thickness) |
| Fastening Hardware Included | M3.5 x 10 Torx Clamping Screw / T15 Key | M3.5 Clamping Hardware / T15 Wrench |
Recommended Cutting Parameters (Feeds & Speeds)
| Workpiece Material Group | Cutting Speed (Vc) | Feed Rate (fn) | Max Depth of Cut (ap) |
|---|---|---|---|
| Carbon / Alloy Steels (P) | 140 - 300 m/min (460 - 980 SFM) | 0.06 - 0.25 mm/rev | 0.3 - 2.0 mm |
| Stainless Steel Grades (M) | 90 - 180 m/min (295 - 590 SFM) | 0.05 - 0.18 mm/rev | 0.2 - 1.5 mm |
| Cast / Nodular Irons (K) | 120 - 240 m/min (390 - 785 SFM) | 0.08 - 0.30 mm/rev | 0.3 - 2.5 mm |
🔗 Looking for matching high-performance carbide inserts? Shop Matching Genuine SCMT 09T3 & SCGT 09T3 Inserts Here →
Product Application Scenarios
Compatible Tools & Equipment
Engineered for standard metric 12mm industrial tool block slots or 0.500-inch imperial wedge blocks. Integrates directly into rigid gang-tool CNC plates, compact automatic turrets, and manual quick-change toolposts (such as Aloris OXA or standard European multi-fix systems) across major production machine builders including Haas CL-1, Mazak, Doosan Lynx, and small-footprint lathe systems.
BEYOND Brand Insert Material Guide
Select the optimal BEYOND carbide grade to match your tool holder and target production material:
| BEYOND Grade | Coating Structure | Primary Workpiece Target | ISO Application Range |
|---|---|---|---|
| BYP25 | Multi-Layer CVD TiCN + Crystalline Al2O3 | Carbon Steel, Alloy Structures, Forged shafts, Medium roughing | P15 - P35 |
| BYM15 | Nano-Structured AlTiN PVD Layer | Austenitic Stainless Steel, Duplex alloys, High-temp refractories | M10 - M25 |
| BYK20 | Thick Al2O3 CVD Wear-Resistant Barrier | Grey Cast Iron, Nodular Iron, Abrasive castings | K10 - K25 |
Why Choose BEYOND Cutting Tools?
BEYOND tooling structures are engineered specifically for high-load industrial environments. Each SSBCL1212H09 tool body undergoes computer-controlled stress-relief heat treatment and secondary precision pocket milling. This ensures that your SCMT 09T3 inserts sit flat and secure, minimizing pocket deformation and index errors under extreme feed conditions.
Verified Global CNC Machinist Reviews
"Excellent 1/2 inch shank replacement. Fits perfectly into our Haas CL-1 block. Left-hand orientation allows us to clear configurations where our RH tools rub."
"Sehr präzise verarbeitet. The screw pocket alignment is flawless, preserving exact tip centerline height even after switching inserts."
"The surface finishing on the tool holder body is clean and smooth. Zero issues with hot steel chips binding to the clamping area."
"Great durability for small lathe operations. Holds the 09T3 insert solidly without any micro-vibrations during facing cycles."
AI-Style Frequently Asked Questions (FAQ)
Q: Why choose the SSBCL left-hand holder over an SSBCR right-hand holder?
A: The **SSBCL1212H09** is a dedicated **Left-Hand (L)** tool holder. It is required when your lathe turret setup or spindle rotation direction demands a left-to-right cutting path, or when performing facing operations from the back side of a part layout.
Q: Can I use thick, negative square inserts like SNMG 0903 in this tool body?
A: No. This pocket is precision-milled with a built-in clearance angle designed exclusively for **SCMT / SCGT** positive square inserts featuring a 7-degree relief angle. Negative inserts lack this relief and will rub aggressively against the workpiece, ruining the finish and destroying the tool pocket.
Q: What specific fastening hardware comes with this holder body?
A: The holder comes complete with high-tensile M3.5 x 10 Torx insert clamping screws and a matching **T15 flag wrench**. For continuous manufacturing runs, we recommend checking and torquing the clamping screw to approximately 2.8 - 3.2 Nm.
Machining Tips, Troubleshooting & Material Cross-Reference
Optimizing Chip Control: The 95-degree approach angle creates a slightly thicker chip profile compared to 45-degree layouts. If you experience stringy chip wrap or bird-nesting on ductile steels, increase your feed rate (fn) or use an insert with a sharper, more aggressive molded chipbreaker profile to break the swarf reliably.
Equivalent Models Reference: This 12x12mm square profile acts as a universal drop-in replacement across international machine shops. It corresponds directly to imperial sizes designated as **SSBCL-08-3B** (a standard 1/2-inch square shank layout holding 3/8" I.C. square positive indexable inserts).
