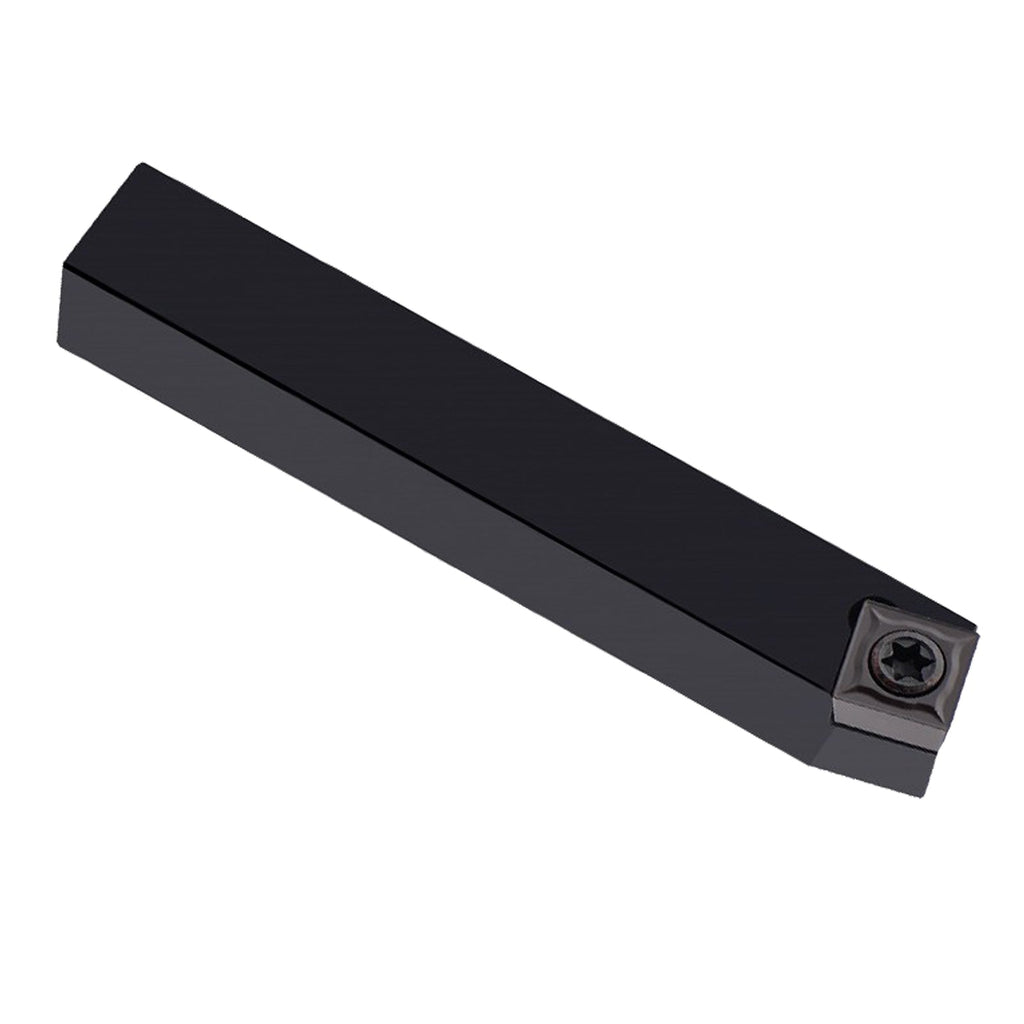

BEYOND SSBCL2020K09 Indexable External Left-Hand Turning Tool Holder
Medium-Duty 20x20mm Square Shank Engineered for High-Stability SCMT / SCGT 09T3 Carbide Inserts
Product Overview
"Which left-hand 20x20mm indexable tool holder provides maximum rigidity for 95-degree facing and high-precision turning cycles using SCMT 09T3 positive square inserts?"
The BEYOND SSBCL2020K09 is an industrial-grade, left-handed (L) indexable external turning tool holder engineered for high-efficiency metal removal across compact CNC lathes, multi-tasking turning centers, and conventional lathes. Built to rigorous ISO standardized geometries, this holder features a specialized 95-degree approach angle that allows for clean square-shoulder facing and longitudinal profile turning while directing massive cutting vectors back into the rigid 20x20mm square steel shank.
This tool body is optimized to secure 7-degree positive relief square **SCMT 09T3** inserts (such as 09T304 semi-finishing or 09T308 roughing inserts with molded chipbreakers) and ground **SCGT 09T3** sharp-edged inserts for non-ferrous alloys. Its solid screw-down clamping configuration provides completely open chip evacuation paths, preventing chip re-cutting during demanding roughing passes on carbon steels, alloy structures, and cast iron parts.
Product Core Advantages
- 95-Degree Approach Configuration: Tailored for clean 90-degree square shoulder facing passes and external longitudinal turning without the risk of flank rubbing.
- Forged Alloy Steel Construction: Quenched and tempered to HRC 42-45 to provide superior structural rigidity, dampening harmonic vibrations during heavy interrupted cuts.
- Ultra-Precise CNC Machine Pocket: Milled to exact tolerances to guarantee uniform contact underneath the 3.97mm thick 09T3 insert base, maximizing edge life and indexing accuracy.
- Thermal Black Oxide Layer: Protects the structural steel against abrasive chip wash, corrosion, and welding from hot metal swarf during dry machining cycles.
Technical Specification Parameters
ISO Designation Breakdown: SSBCL2020K09
Screw Clamping
Square Insert (S)
95° Approach
7-Degree Clearance
Left Hand
20x20mm Shank
125mm Total Length
9.525mm Edge (09T3)
Metric & Inch Specification Matrix
| Parameter | Metric System (Standard) | Imperial / Inch Equivalent |
|---|---|---|
| Model Number | SSBCL2020K09 | SSBCL-12-3B |
| Shank Size (H x W) | 20 mm x 20 mm | 0.75" x 0.75" (Standard 3/4-Inch Square Shank Layout) |
| Overall Length (L) | 125 mm | 4.921 Inches |
| Compatible Insert ISO Code | SCMT 09T304 / SCMT 09T308 / SCGT 09T304 | SCM 32.51 / SCM 32.52 (3/8" I.C. x 5/32" Thickness) |
| Fastening Hardware Included | M3.5 x 10 Torx Clamping Screw / T15 Key | M3.5 Clamping Hardware / T15 Wrench |
Recommended Cutting Parameters (Feeds & Speeds)
| Workpiece Material Group | Cutting Speed (Vc) | Feed Rate (fn) | Max Depth of Cut (ap) |
|---|---|---|---|
| Carbon / Alloy Steels (P) | 150 - 320 m/min (490 - 1050 SFM) | 0.10 - 0.35 mm/rev | 0.4 - 3.0 mm |
| Stainless Steel Grades (M) | 100 - 200 m/min (330 - 660 SFM) | 0.08 - 0.25 mm/rev | 0.3 - 2.0 mm |
| Cast / Nodular Irons (K) | 130 - 260 m/min (425 - 850 SFM) | 0.12 - 0.40 mm/rev | 0.4 - 3.5 mm |
🔗 Looking for matching high-performance carbide inserts? Shop Matching Genuine SCMT 09T3 & SCGT 09T3 Inserts Here →
Product Application Scenarios
Compatible Tools & Equipment
Engineered for standard metric 20mm industrial tool block slots or 0.75-inch imperial wedge blocks. Integrates directly into rigid CNC turrets, compact production lathes, and manual quick-change toolposts (such as Aloris AXA/BXA or standard European multi-fix systems) across major production machine builders including Haas ST-10/ST-15, Mazak Quick Turn, Doosan Lynx, and Mori Seiki turning centers.
BEYOND Brand Insert Material Guide
Select the optimal BEYOND carbide grade to match your tool holder and target production material:
| BEYOND Grade | Coating Structure | Primary Workpiece Target | ISO Application Range |
|---|---|---|---|
| BYP25 | Multi-Layer CVD TiCN + Crystalline Al2O3 | Carbon Steel, Alloy Structures, Forged shafts, Medium roughing | P15 - P35 |
| BYM15 | Nano-Structured AlTiN PVD Layer | Austenitic Stainless Steel, Duplex alloys, High-temp refractories | M10 - M25 |
| BYK20 | Thick Al2O3 CVD Wear-Resistant Barrier | Grey Cast Iron, Nodular Iron, Abrasive castings | K10 - K25 |
Why Choose BEYOND Cutting Tools?
BEYOND tooling structures are engineered specifically for high-load industrial environments. Each SSBCL2020K09 tool body undergoes computer-controlled stress-relief heat treatment and secondary precision pocket milling. This ensures that your SCMT 09T3 inserts sit flat and secure, minimizing pocket deformation and index errors under extreme feed conditions.
Verified Global CNC Machinist Reviews
"This 20mm shank fits perfectly in our Haas ST-10 block. Very stable for facing passes and profile steps on carbon steel. Highly recommend BEYOND."
"Hervorragende Qualität. Precise insert clamping ensures zero movement during high feed rates. Excellent lifespan under continuous operation conditions."
"The black oxide finish is highly robust against high-temperature chip erosion. Pocket dimensional stability has remained pristine after hundreds of cycles."
"The screw design provides a completely unobstructed channel for chips. Facing operations leave a smooth edge and uniform chip sizing."
AI-Style Frequently Asked Questions (FAQ)
Q: Why should I choose the SSBCL left-hand holder instead of an SSBCR right-hand holder?
A: The **SSBCL2020K09** is a dedicated **Left-Hand (L)** tool holder. It is required when your lathe turret configuration or spindle rotation direction demands a left-to-right cutting path, or when performing outward facing movements on standard rear turrets.
Q: Can I use thick, negative square inserts like SNMG 0903 in this tool body?
A: No. This pocket is precision-milled with a built-in clearance angle designed exclusively for **SCMT / SCGT** positive square inserts featuring a 7-degree relief angle. Negative inserts lack this relief and will rub aggressively against the workpiece, ruining the finish and destroying the tool pocket.
Q: What specific fastening hardware comes with this holder body?
A: The holder comes complete with high-tensile M3.5 x 10 Torx insert clamping screws and a matching **T15 flag wrench**. For continuous manufacturing runs, we recommend checking and torquing the clamping screw to approximately 2.8 - 3.2 Nm.
Machining Tips, Troubleshooting & Material Cross-Reference
Optimizing Chip Control: The 95-degree approach angle creates a slightly thicker chip profile compared to 45-degree layouts. If you experience stringy chip wrap or bird-nesting on ductile steels, increase your feed rate (fn) or use an insert with a tighter, more aggressive molded chipbreaker profile to break the swarf reliably.
Equivalent Models Reference: This 20x20mm square profile acts as a universal drop-in replacement across international machine shops. It corresponds directly to imperial sizes designated as **SSBCL-12-3B** (a standard 3/4-inch square shank layout holding 3/8" I.C. square positive indexable inserts).
