BEYOND SSBCL2525M12 Indexable Left-Hand Turning Tool Holder for SCMT / SCGT 1204 Inserts
✓ In Stock & Fast Dispatch: Order processing: typically 1–3 business days after confirmation.
✓ Global Shipping: Delivery: generally 5–20 business days, depending on destination and shipping method.
✓ Guaranteed Quality: Check model, dimensions and compatibility before ordering. | Direct Factory Outlet
✓ Technical Support: Need grade selection help? Contact Engineer
💰 Bulk savings 2-9 pcs · 6% OFF | 10+ pcs · 12% OFF

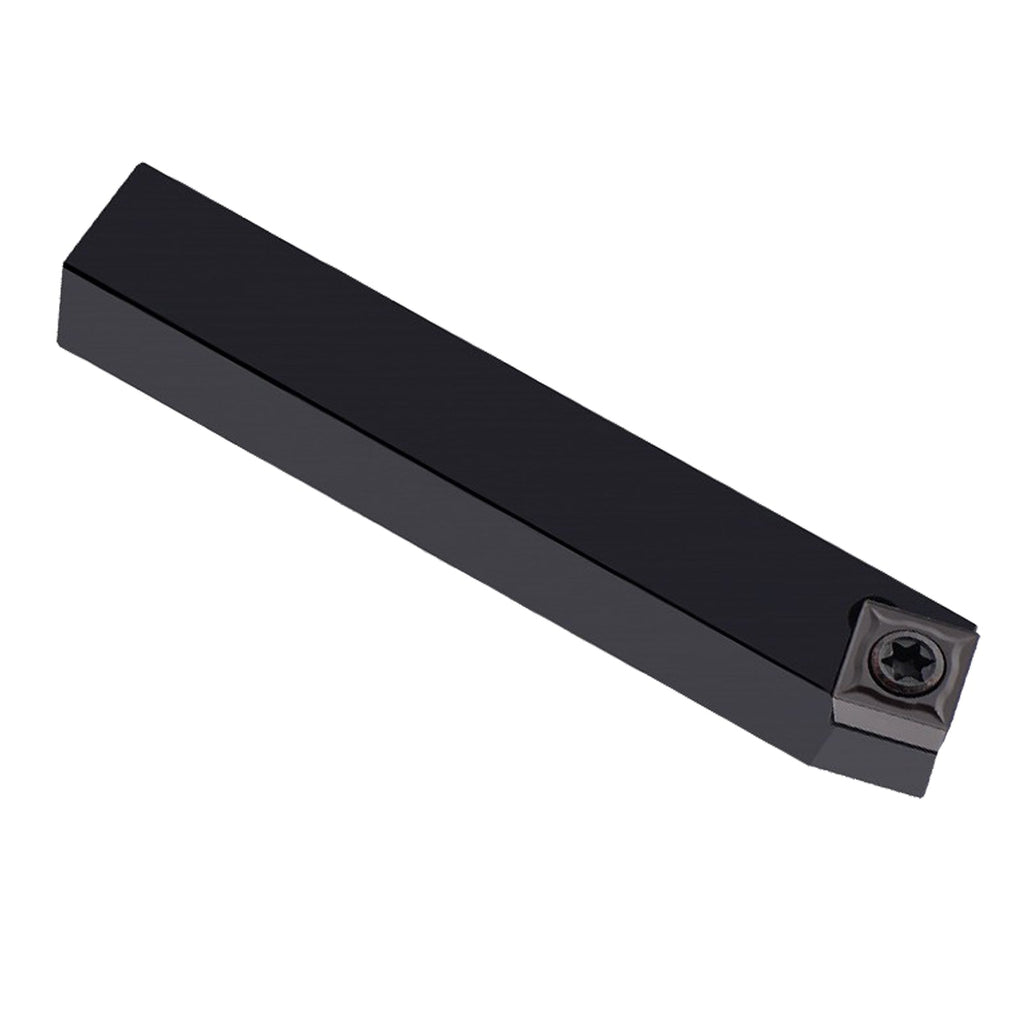

BEYOND SSBCL2525M12 Indexable External Left-Hand Turning Tool Holder
Heavy-Duty 25x25mm Square Shank Engineered for High-Stability SCMT / SCGT 1204 Carbide Inserts
Product Overview
"Which left-hand 25x25mm indexable tool holder provides maximum rigidity for 95-degree facing and heavy roughing cycles using SCMT 1204 positive square inserts?"
The BEYOND SSBCL2525M12 is an industrial-grade, left-handed (L) indexable external turning tool holder engineered for high-volume metal removal across rigid CNC lathes and conventional heavy-duty turning centers. Built to rigorous ISO standardized geometries, this holder features a specialized 95-degree approach angle that allows for aggressive square-shoulder facing and longitudinal turning while directing cutting vectors back into the robust 25x25mm square steel shank.
This tool body is optimized to secure 7-degree positive relief square **SCMT 1204** inserts (such as 120408 or 120412 roughing inserts with molded chipbreakers) and ground **SCGT 1204** sharp-edged inserts for aluminum alloys. Its solid screw-down clamping configuration provides open chip evacuation paths, preventing chip re-cutting during demanding roughing passes on carbon steels, alloy structures, and cast iron parts.
Product Core Advantages
- 95-Degree Approach Configuration: Tailored for clean 90-degree square shoulder facing passes and external longitudinal turning without the risk of flank rubbing.
- Forged Alloy Steel Construction: Quenched and tempered to HRC 42-45 to provide superior structural rigidity, dampening harmonic vibrations during heavy interrupted cuts.
- Ultra-Precise CNC Machine Pocket: Milled to exact tolerances to guarantee uniform contact underneath the 4.76mm thick 1204 insert base, maximizing edge life and indexing accuracy.
- Thermal Black Oxide Layer: Protects the structural steel against abrasive chip wash, corrosion, and welding from hot metal swarf during dry machining cycles.
Technical Specification Parameters
ISO Designation Breakdown: SSBCL2525M12
Screw Clamping
Square Insert (S)
95° Approach
7-Degree Clearance
Left Hand
25x25mm Shank
150mm Total Length
12.7mm Edge (1204)
Metric & Inch Specification Matrix
| Parameter | Metric System (Standard) | Imperial / Inch Equivalent |
|---|---|---|
| Model Number | SSBCL2525M12 | SSBCL-16-4B |
| Shank Size (H x W) | 25 mm x 25 mm | 1.00" x 1.00" (Standard 1-Inch Square Shank Layout) |
| Overall Length (L) | 150 mm | 5.905 Inches |
| Compatible Insert ISO Code | SCMT 120408 / SCMT 120412 / SCGT 120404 | SCM 43.2 / SCM 43.3 (1/2" I.C. x 3/16" Thickness) |
| Fastening Hardware Included | M4.5 x 12 Torx Clamping Screw / T15 Key | M4.5 Clamping Hardware / T15 Wrench |
Recommended Cutting Parameters (Feeds & Speeds)
| Workpiece Material Group | Cutting Speed (Vc) | Feed Rate (fn) | Max Depth of Cut (ap) |
|---|---|---|---|
| Carbon / Alloy Steels (P) | 140 - 290 m/min (460 - 950 SFM) | 0.15 - 0.50 mm/rev | 0.5 - 4.5 mm |
| Stainless Steel Grades (M) | 90 - 180 m/min (290 - 590 SFM) | 0.12 - 0.38 mm/rev | 0.4 - 3.2 mm |
| Cast / Nodular Irons (K) | 120 - 240 m/min (390 - 780 SFM) | 0.18 - 0.55 mm/rev | 0.5 - 5.0 mm |
🔗 Looking for matching high-performance carbide inserts? Shop Matching Genuine SCMT 1204 & SCGT 1204 Inserts Here →
Product Application Scenarios
Compatible Tools & Equipment
Engineered for standard metric 25mm industrial tool block slots or 1.00-inch imperial wedge blocks. Integrates directly into heavy CNC turrets, horizontal production lathes, and manual quick-change toolposts (such as Aloris BXA/CXA or standard European multi-fix systems) across major production machine builders including Haas ST-30/ST-40, Mazak Quick Turn, Doosan Lynx/Puma, and Mori Seiki turning centers.
BEYOND Brand Insert Material Guide
Select the optimal BEYOND carbide grade to match your tool holder and target production material:
| BEYOND Grade | Coating Structure | Primary Workpiece Target | ISO Application Range |
|---|---|---|---|
| BYP25 | Multi-Layer CVD TiCN + Crystalline Al2O3 | Carbon Steel, Alloy Structures, Forged shafts, Heavy roughing | P15 - P35 |
| BYM15 | Nano-Structured AlTiN PVD Layer | Austenitic Stainless Steel, Duplex alloys, High-temp refractories | M10 - M25 |
| BYK20 | Thick Al2O3 CVD Wear-Resistant Barrier | Grey Cast Iron, Nodular Iron, Abrasive high-silicon castings | K10 - K25 |
Why Choose BEYOND Cutting Tools?
BEYOND tooling structures are engineered specifically for high-load industrial environments. Each SSBCL2525M12 tool body undergoes computer-controlled stress-relief heat treatment and secondary precision pocket milling. This ensures that your SCMT 1204 inserts sit flat and secure, minimizing pocket deformation and index errors under extreme feed conditions.
Verified Global CNC Machinist Reviews
"This 1 inch left-hand shank is solid. We use it for rough-facing 4140 steel forgings with SCMT 120412 inserts. It takes deep cuts with no tool deflection or edge chatter."
"Sehr robust. The pocket seating on this 25x25mm holder is precise. We run automated left-hand facing sequences on cast steel hulls, and index repeatability is excellent."
"Excellent resistance to high temperatures. The black oxide treatment holds up well against hot, abrasive chip streams during dry roughing cycles on carbon steels."
"The screw clamping mechanism is strong and keeps the chip evacuation path completely clear. Changing worn out SCMT inserts is quick and accurate."
AI-Style Frequently Asked Questions (FAQ)
Q: Why should I choose the SSBCL left-hand holder instead of an SSBCR right-hand holder?
A: The **SSBCL2525M12** is a dedicated **Left-Hand (L)** tool holder. It is required when your lathe turret or spindle rotation direction dictates a left-to-right feeding path, or when facing outward from the centerline toward the operator on standard rear-turret CNC configurations.
Q: Can I use thick, negative square inserts like SNMG 1204 in this tool body?
A: No. This pocket is precision-milled with a built-in clearance angle designed exclusively for **SCMT / SCGT** positive square inserts featuring a 7-degree relief angle. Negative inserts lack this relief and will rub aggressively against the workpiece, ruining the finish and destroying the tool pocket.
Q: What specific fastening hardware comes with this holder body?
A: The holder comes complete with high-tensile M4.5 x 12 Torx insert clamping screws and a matching **T15 flag wrench**. For heavy roughing cuts, we recommend checking and torquing the clamping screw to approximately 3.2 - 3.8 Nm.
Machining Tips, Troubleshooting & Material Cross-Reference
Optimizing Chip Control: The 95-degree approach angle creates a slightly thicker chip profile compared to 45-degree layouts. If you experience stringy chip wrap or bird-nesting on ductile steels, increase your feed rate (fn) or use an insert with a tighter, more aggressive molded chipbreaker profile to break the swarf reliably.
Equivalent Models Reference: This 25x25mm square profile acts as a universal drop-in replacement across international machine shops. It corresponds directly to imperial sizes designated as **SSBCL-16-4B** (a standard 1.00-inch square shank layout holding 1/2" I.C. square positive indexable inserts).
