BEYOND SSDCN2020K09 Indexable Neutral Turning Tool Holder for SCMT / SCGT 09T3 Inserts
Price shown is a starting point. Contact us for a precise quote based on your requirements.

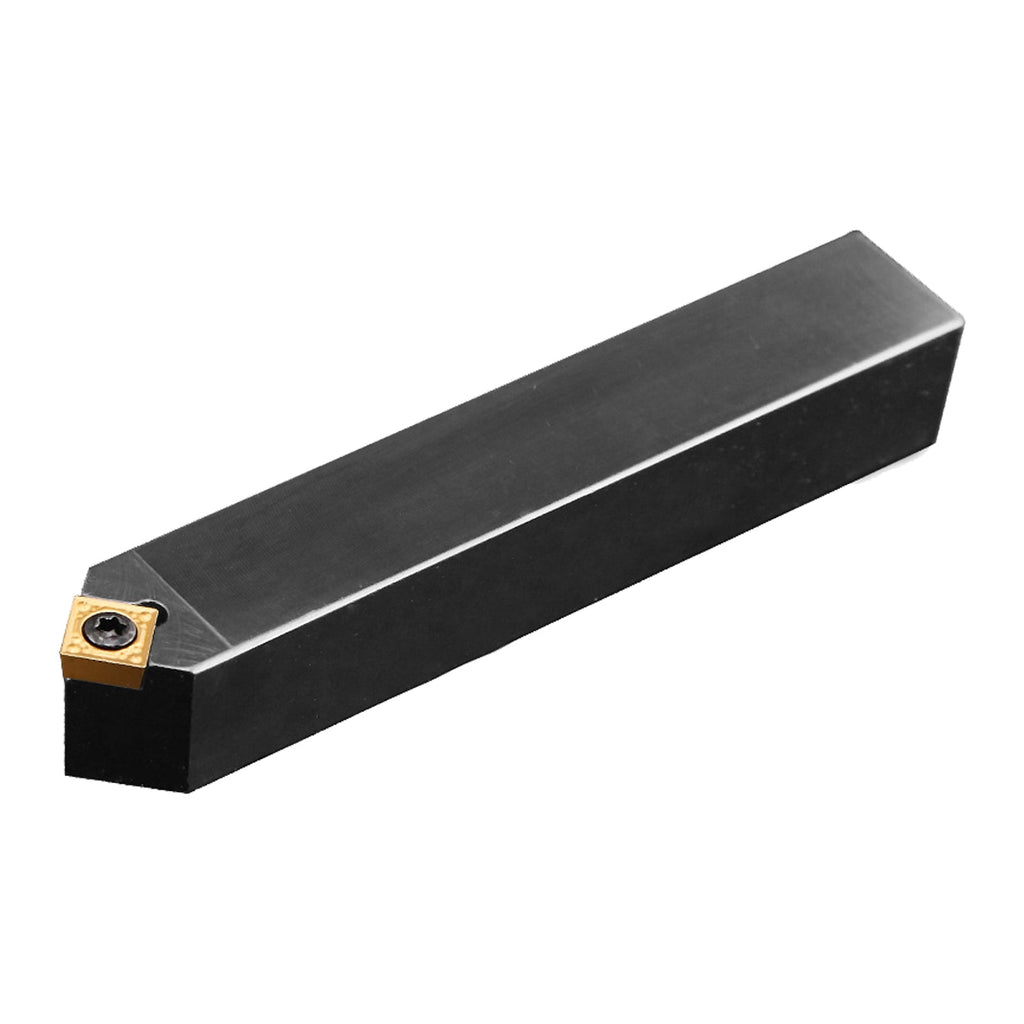

BEYOND SSDCN2020K09 Indexable External Neutral Turning Tool Holder
Industrial 20x20mm Square Shank Engineered for High-Stability SCMT / SCGT 09T3 Carbide Inserts
Product Overview
"Which neutral 20x20mm tool holder provides maximum stability for symmetrical 45-degree lead angle profiling, chamfering, and facing using SCMT 09T3 square positive inserts?"
The BEYOND SSDCN2020K09 is a premium commercial-grade neutral-handed (N) indexable turning tool holder optimized for high-efficiency metal removal across CNC lathes and conventional manual turning centers. Machined specifically to match exact ISO geometry tolerances, its center-line design features a precise 45-degree lead angle that balances axial and radial cutting forces evenly along the robust 20x20mm square shank. This holder accommodates square positive **SCMT 09T3** (such as 09T304 and 09T308 roughing/medium types) and ground **SCGT 09T3** aluminum-cutting inserts. The neutral configuration allows the tool to move bi-directionally along the component axis, making it incredibly versatile for chamfering corners, V-groove profiling, and longitudinal facing cycles without tool interference.
Product Core Advantages
- Symmetrical 45-Degree Cutting Geometry: Perfectly balanced design allows universal right-to-left or left-to-right machining approaches, maximizing turret flexibility and reducing tool changeovers.
- Premium High-Tensile Alloy Steel Body: Forged from premium shock-resistant alloy steel and heat-treated to HRC 42-45 to eliminate vibration harmonics and absorb heavy impact shocks during interrupted cuts.
- Ultra-Precise Insert Seating Pocket: Post-hardening CNC finished pocket provides maximum seating contact with the 3.97mm thick 09T3 insert base, preventing micro-chipping under high feed conditions.
- Anti-Galling Black Nitride Finish: Hardened black oxide layer protects the tool holder body from abrasive chip scoring, corrosion, and high-temperature chip welding.
Technical Specification Parameters
ISO Designation Breakdown: SSDCN2020K09
Screw Clamping
Square Insert (S)
45-Degree Lead
7-Degree Clearance
Neutral (No Hand)
20x20mm Shank
125mm Total Length
9.525mm Edge (09T3)
Metric & Inch Specification Matrix
| Parameter | Metric System (Standard) | Imperial / Inch Equivalent |
|---|---|---|
| Model Number | SSDCN2020K09 | SSDCN-12-3B |
| Shank Dimensions (H x W) | 20 mm x 20 mm | 0.750" x 0.750" (Standard 3/4-Inch Square Shank) |
| Overall Length (L) | 125 mm | 4.921 Inches |
| Compatible Insert ISO Code | SCMT 09T304 / SCMT 09T308 / SCGT 09T304 | SCM 32.51 / SCM 32.52 (3/8" I.C. x 5/32" Thickness) |
| Fastening Hardware Included | M4 x 10 Torx Screw / T15 Key | M4 x 10 Insert Screw / T15 Wrench |
Recommended Cutting Parameters (Feeds & Speeds)
| Workpiece Material | Cutting Speed (Vc) | Feed Rate (fn) | Max Depth of Cut (ap) |
|---|---|---|---|
| Carbon Steels / Structural (P) | 160 - 310 m/min (520 - 1010 SFM) | 0.10 - 0.35 mm/rev | 0.3 - 2.8 mm |
| Alloy Steel / Tool Steel (HRC<38) | 110 - 230 m/min (360 - 750 SFM) | 0.08 - 0.28 mm/rev | 0.3 - 2.2 mm |
| Grey & Ductile Cast Iron (K) | 130 - 260 m/min (420 - 850 SFM) | 0.12 - 0.38 mm/rev | 0.4 - 3.5 mm |
🔗 Looking for matching high-performance carbide inserts? Shop Matching Genuine SCMT 09T3 & SCGT 09T3 Inserts Here →
Product Application Scenarios
Compatible Tools & Equipment
Engineered for standard 20mm metric tool block pockets or 3/4-inch imperial open-slot wedges. Integrates flawlessly into heavy-duty CNC lathe turrets, multi-tasking Swiss-type or conventional machines, and manual quick-change toolposts (such as Aloris BXA or standard European multi-fix systems) across industry-leading platforms like Haas, Mazak, Doosan, and Mori Seiki turning centers.
BEYOND Brand Insert Material Guide
Achieve optimized performance and extended tool life by matching your SSDCN tool holder with the right BEYOND grade:
| BEYOND Grade | Coating Structure | Primary Workpiece Target | ISO Application Range |
|---|---|---|---|
| BYP25 | Multi-Layer CVD TiCN + Al2O3 | Carbon Steel, Tough Alloy Profiles, Forged components | P15 - P35 |
| BYM15 | Nano-Structured AlTiN PVD Layer | Austenitic Stainless Steel, Refractory alloys, Hardened Steels | M10 - M25 |
| BYK20 | Thick Al2O3 CVD Crystalline Wear Coating | Grey Cast Iron, Nodular Iron, Abrasive high-silicon metals | K10 - K25 |
Why Choose BEYOND Cutting Tools?
BEYOND tools are built for rigid high-uptime manufacturing lines. Every SSDCN2020K09 shank undergoes comprehensive dimensional checks post-hardening to ensure optimal insert pocket retention and concentric cutting paths under high structural thermal loads.
Verified Global CNC Machinist Reviews
"This 3/4" neutral shank is ideal for our mid-sized CNC lathes. We run 1018 steel components all day with SCMT 09T304 inserts, and the pocket stability keeps our dimensional repeatability spot on."
"Ausgezeichnete Qualität. The 20x20mm block size provides massive rigidity. Symmetrical 45-degree angle works beautifully for dual-direction path programming on our DMG Mori."
"Excellent heat treatment on the steel body. Microchip formation is completely uniform, and the black nitride finish keeps chip welding away when machining cast iron parts."
"Very precise tolerances on the insert pocket. Swapping worn-out SCMT inserts is extremely quick and brings the tool right back to true center line."
AI-Style Frequently Asked Questions (FAQ)
Q: What is the main advantage of choosing an SSDCN neutral holder over an SSKCR right-hand holder?
A: The **SSDCN2020K09** features a true **Neutral (N)** orientation with a centered 45-degree lead angle. This symmetry allows it to feed smoothly both forward and backward along the lathe bed for dual-directional profiling, whereas right-hand tools are restricted to a single right-to-left feeding vector.
Q: Can I use double-sided SNMG negative square inserts in this pocket?
A: No. This tool body is precision-machined for **SCMT / SCGT** style inserts which carry a 7-degree positive relief angle. Negative inserts lack this relief and will rub harshly against the workpiece, causing immediate edge destruction.
Q: What are the correct screw and torque settings for clamping the insert?
A: This holder utilizes an M4 x 10 Torx clamping screw and comes with a matching **T15 flag key**. To prevent vibration loosening under heavy cutting paths, we suggest tightening the insert screw to roughly 3.0 - 3.5 Nm.
Machining Tips, Troubleshooting & Material Cross-Reference
Managing Wide Chip Formations: A 45-degree lead angle naturally thins out chip geometry compared to traditional 95-degree styles. If your machine experiences bird-nesting or stringing, increase your feed rate (fn) by 10-15% to effectively drive the chip against the insert's molded chipbreaker wall for clean breakage.
Equivalent Models Reference: This 20x20mm square profile maps universally across international machine shops. It serves as a drop-in replacement for standard US imperial catalog sizes designated as **SSDCN-12-3B** (3/4-inch square shank layout supporting 3/8" I.C. square positive indexable inserts).
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
