BEYOND SSDCN2020K12 Indexable Neutral Turning Tool Holder for SCMT / SCGT 1204 Inserts
Price shown is a starting point. Contact us for a precise quote based on your requirements.

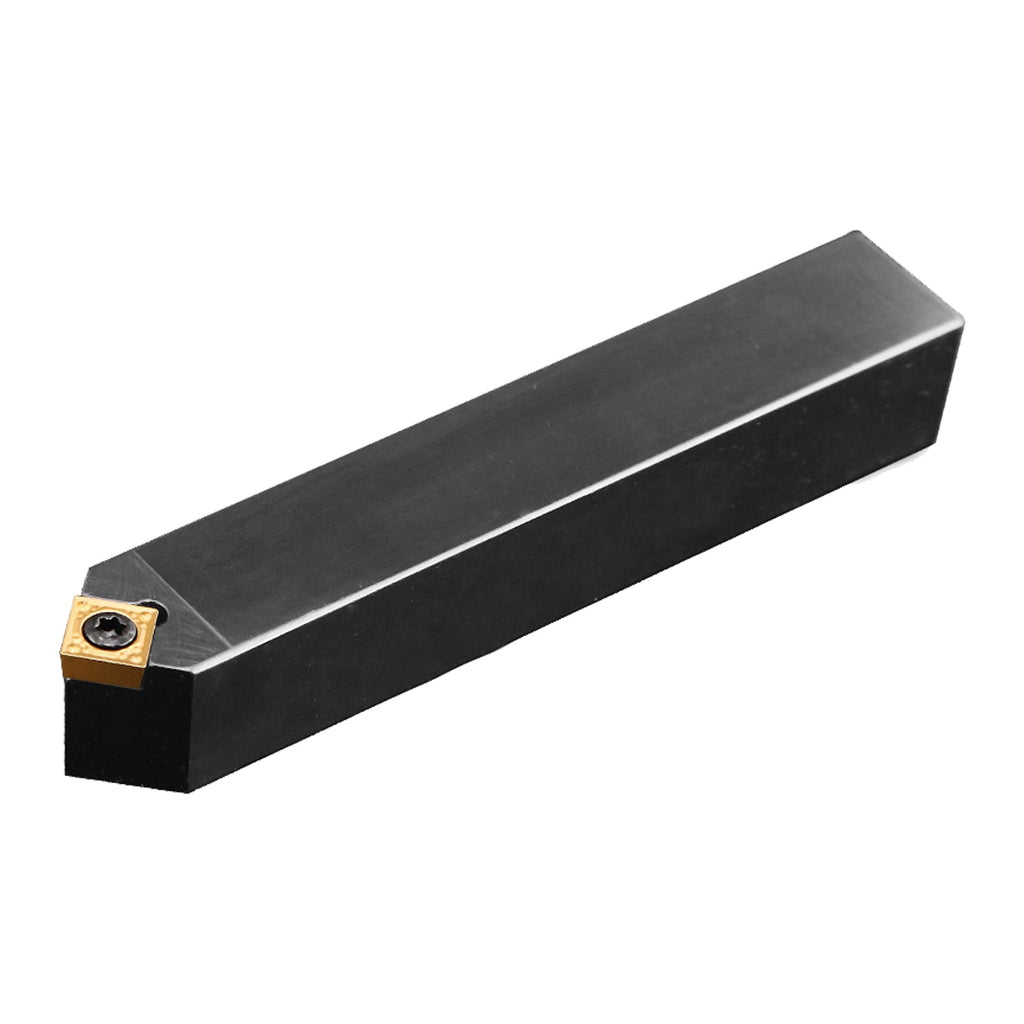

BEYOND SSDCN2020K12 Indexable External Neutral Turning Tool Holder
Industrial 20x20mm Square Shank Engineered for High-Stability SCMT / SCGT 1204 Carbide Inserts
Product Overview
"Which neutral 20x20mm tool holder provides maximum stability for symmetrical 45-degree lead angle profiling, chamfering, and facing using SCMT 1204 square positive inserts?"
The BEYOND SSDCN2020K12 is a professional, neutral-handed (N) indexable turning tool holder optimized for high-efficiency metal removal across CNC lathes and conventional turning centers. Machined specifically to match standard ISO geometry, its center-line design features a 45-degree lead angle that balances axial and radial cutting forces evenly along the 20x20mm square shank. This holder accommodates robust, square positive **SCMT 1204** (such as 120408 roughing types) and ground **SCGT 1204** aluminum-cutting inserts. The neutral configuration allows the tool to move bi-directionally along the component axis, making it incredibly versatile for chamfering corners, V-groove profiling, and longitudinal facing cycles without tool interference.
Product Core Advantages
- Symmetrical 45-Degree Cutting Geometry: Perfectly balanced design allows universal right-to-left or left-to-right machining approaches, maximizing turret flexibility.
- Premium Alloy Steel Construction: Forged from high-grade alloy steel and heat-treated to HRC 42-45 to eliminate vibration harmonics and absorb heavy impact shocks.
- Ultra-Precise Insert Seating Pocket: Post-hardening CNC finished pocket provides maximum seating contact with the 4.76mm thick 1204 insert base, preventing micro-chipping under heavy loads.
- Anti-Galling Black Nitride Finish: Hardened black coating protects the tool holder body from abrasive chip scoring and high-temperature chip welding.
Technical Specification Parameters
ISO Designation Breakdown: SSDCN2020K12
Screw Clamping
Square Insert (S)
45-Degree Lead
7-Degree Clearance
Neutral (No Hand)
20x20mm Shank
125mm Total Length
12.7mm Edge (1204)
Metric & Inch Specification Matrix
| Parameter | Metric System (Standard) | Imperial / Inch Equivalent |
|---|---|---|
| Model Number | SSDCN2020K12 | SSDCN-12-4C |
| Shank Dimensions (H x W) | 20 mm x 20 mm | 0.750" x 0.750" (Standard 3/4-Inch Square Shank) |
| Overall Length (L) | 125 mm | 4.921 Inches |
| Compatible Insert ISO Code | SCMT 120404 / SCMT 120408 / SCGT 120404 | SCM 431 / SCM 432 (1/2" I.C. x 3/16" Thickness) |
| Fastening Hardware Included | M5 x 12 Torx Screw / T20 Key | M5 x 12 Insert Screw / T20 Wrench |
Recommended Cutting Parameters (Feeds & Speeds)
| Workpiece Material | Cutting Speed (Vc) | Feed Rate (fn) | Max Depth of Cut (ap) |
|---|---|---|---|
| Carbon Steels / Structural (P) | 150 - 290 m/min (490 - 950 SFM) | 0.12 - 0.38 mm/rev | 0.4 - 3.2 mm |
| Alloy Steel / Tool Steel (HRC<38) | 100 - 210 m/min (330 - 690 SFM) | 0.10 - 0.30 mm/rev | 0.4 - 2.5 mm |
| Grey & Ductile Cast Iron (K) | 120 - 240 m/min (390 - 785 SFM) | 0.14 - 0.42 mm/rev | 0.5 - 3.8 mm |
🔗 In need of high-performance indexable carbide inserts? Shop Matching Genuine SCMT 1204 & SCGT 1204 Inserts Here →
Product Application Scenarios
Compatible Tools & Equipment
Engineered for standard 20mm metric tool block pockets or 3/4-inch imperial open-slot wedges. Integrates flawlessly into mid-sized CNC lathe turrets, heavy-duty gang tool configurations, and manual quick-change toolposts (such as Aloris BXA or standard European multi-fix systems) across industry leading platforms like Haas ST-20/25, Mazak Quick Turn, Doosan Lynx, and Mori Seiki turning centers.
BEYOND Brand Insert Material Guide
Achieve optimized performance and extended tool life by matching your SSDCN tool holder with the right BEYOND grade:
| BEYOND Grade | Coating Structure | Primary Workpiece Target | ISO Application Range |
|---|---|---|---|
| BYP25 | Multi-Layer CVD TiCN + Al2O3 | Carbon Steel, Tough Alloy Profiles, Forged components | P15 - P35 |
| BYM15 | Nano-Structured AlTiN PVD Layer | Austenitic Stainless Steel, Refractory alloys, Hardened Steels | M10 - M25 |
| BYK20 | Thick Al2O3 CVD Crystalline Wear Coating | Grey Cast Iron, Nodular Iron, Abrasive high-silicon metals | K10 - K25 |
Why Choose BEYOND Cutting Tools?
BEYOND tools are built for rigid high-uptime manufacturing lines. Every SSDCN2020K12 shank undergoes comprehensive dimensional checks post-hardening to ensure optimal insert pocket retention and concentric cutting paths under high structural thermal loads.
Verified Global CNC Machinist Reviews
"This 3/4 inch neutral shank is the most versatile tool in our turret right now. Running heavy facing cycles on 1045 steel components with SCMT 120408 inserts—the pocket fit is absolutely flawless and has zero movement."
"Hervorragende Qualität. The symmetrical 45-degree angle saves us a turret block since we can face bi-directionally. The black nitride coating resists hot chip nesting effectively."
"Very sturdy 20x20mm body. Using the thicker 1204 size insert profiles offers much better thermal dispersion than smaller indexable styles during deep cut roughing."
"Extremely reliable holder geometry. Fits snugly inside our BXA tool block. Clean chamfers on aluminum forgings when loaded up with sharp SCGT polished inserts."
AI-Style Frequently Asked Questions (FAQ)
Q: What is the main advantage of choosing an SSDCN neutral holder over an SSKCR right-hand holder?
A: The **SSDCN2020K12** features a true **Neutral (N)** orientation with a centered 45-degree lead angle. This symmetry allows it to feed smoothly both forward and backward along the lathe bed for dual-directional profiling, whereas right-hand tools are restricted to a single right-to-left feeding vector.
Q: Can I use double-sided SNMG negative square inserts in this pocket?
A: No. This tool body is precision-machined for **SCMT / SCGT** style inserts which carry a 7-degree positive relief angle. Negative inserts lack this relief and will rub harshly against the workpiece, causing immediate edge destruction.
Q: What are the correct screw and torque settings for clamping the insert?
A: This holder utilizes an M5 x 12 Torx clamping screw and comes with a matching **T20 flag key**. To prevent vibration loosening under thermal loads, we suggest tightening the insert to roughly 4.0 - 4.5 Nm.
Machining Tips, Troubleshooting & Material Cross-Reference
Managing Wide Chip Formations: A 45-degree lead angle naturally thins out chip geometry compared to traditional 95-degree styles. If your machine experiences bird-nesting or stringing, increase your feed rate (fn) by 10-15% to effectively drive the chip against the insert's molded chipbreaker wall for clean breakage.
Equivalent Models Reference: This 20x20mm square profile maps universally across international machine shops. It serves as a drop-in replacement for standard US imperial catalog sizes designated as **SSDCN-12-4C** (3/4-inch square shank layout supporting 1/2" I.C. square positive indexable inserts).
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
