Buy WTJNL1616H16 External Tool Holder - Precision CNC Tooling for Enhanced Machining
Price shown is a starting point. Contact us for a precise quote based on your requirements.
BEYOND WTJNL1616H16 WTJNL 1616H16 External Lathe Turn Tool holder WTJNR WTJNL1616 H16 Cutter Machine CNC Carbide Inserts TNMG TNMG160404 TNMG1604
-
Discover the Power of Versatile Machining with WTJNL1616H16
-
Overview

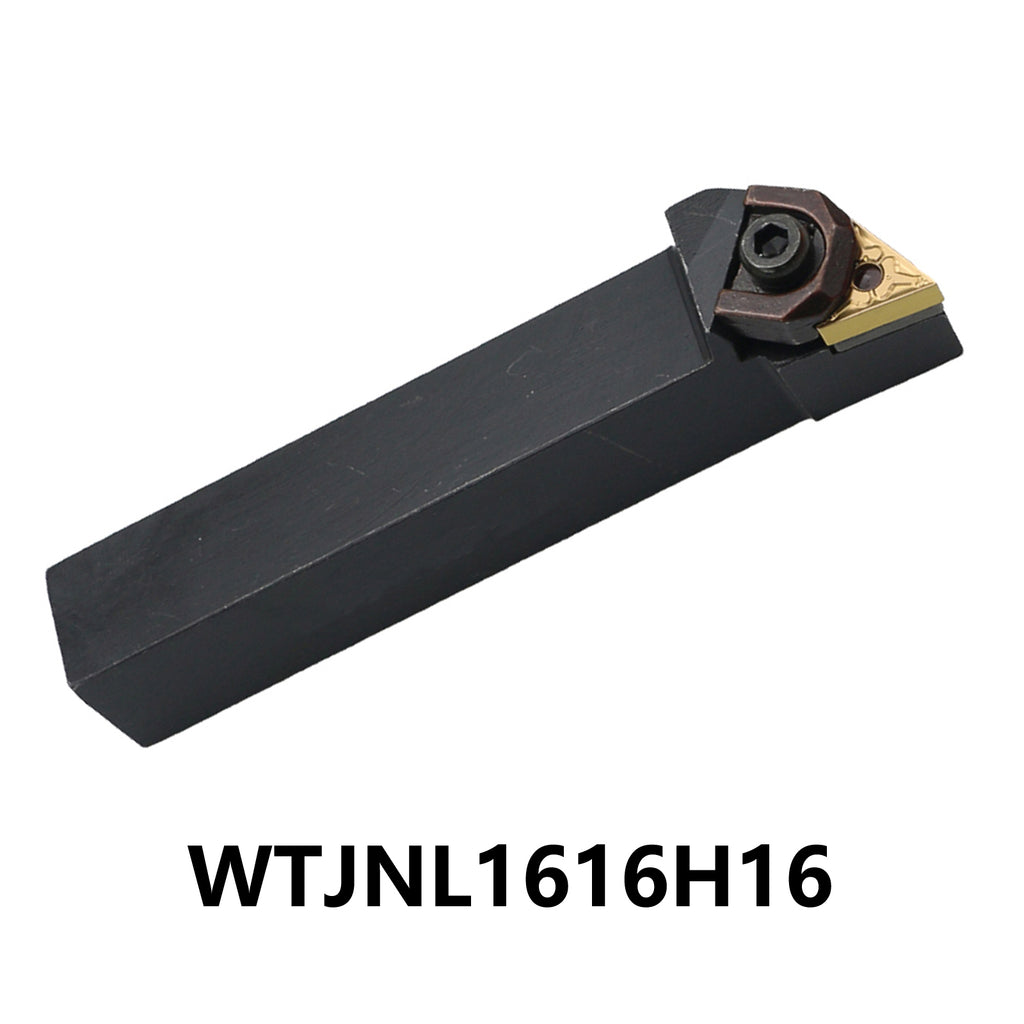

The WTJNL1616H16 External Tool Holder is engineered for precision and versatility in CNC machining applications. With its robust multi-lock system and optimized cutting edge angle, this tool holder ensures stable and accurate cutting performance across various materials. Ideal for CNC lathes and machining centers, it supports multiple blade types, making it a valuable addition to any workshop. Experience enhanced productivity and superior finishes with the WTJNL1616H16.
-
Features and Specifications
- Model:WTJNL1616H16
- Package Includes: WTJNL1616H16 Tool Holder and compatible Shim,Pin,Clamp, Screws, and Wrenches
- 93° cutting edge angle and 0° relief angle.
- Type: W-Type (Wedge clamping system)
- Shank width: 16mm
- Shank length: 16mm
- Total Length: 100mm
- Shim: MT1603
- Pin: CTM515-T
- Clamp: HLT-16
- Screw: M5*23
- Wrench: L2.5 L4.0
- Compatible Blades: TNMG160404 TNMG160408 TNMG160412 TNMG331 TNMG332 TNMG333
-
Why Choose the WTJNL1616H16? Elevate Your Machining Capabilities
-
5-Point Description
- Precision Cutting Performance: Featuring a cutting edge angle of 93° and zero-degree relief, the WTJNL1616H16 ensures optimal cutting conditions for a variety of materials, delivering superior results.
- Robust Wedge Clamping System: The W-type Wedge Clamping system provides enhanced stability during machining operations, allowing for consistent performance and minimal tool wear.
- Versatile Compatibility: Designed to accommodate a wide range of blades including TNMG160404, TNMG160408, TNMG160412, TNMG331, TNMG332, and TNMG333, making it ideal for diverse machining tasks.
- User-Friendly Dimensions: With a shank width of 16mm, shank length of 16mm, and total length of 100mm, the WTJNL1616H16 is engineered for easy integration into existing setups while maintaining a standard width of 16mm.
- Comprehensive Accessory Kit: Includes shim (MT1603), pin (CTM515-T), clamp (HLT-16), screw (M5*23), and wrench (L2.5, L4.0), ensuring you have everything needed for immediate use and adjustment.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
