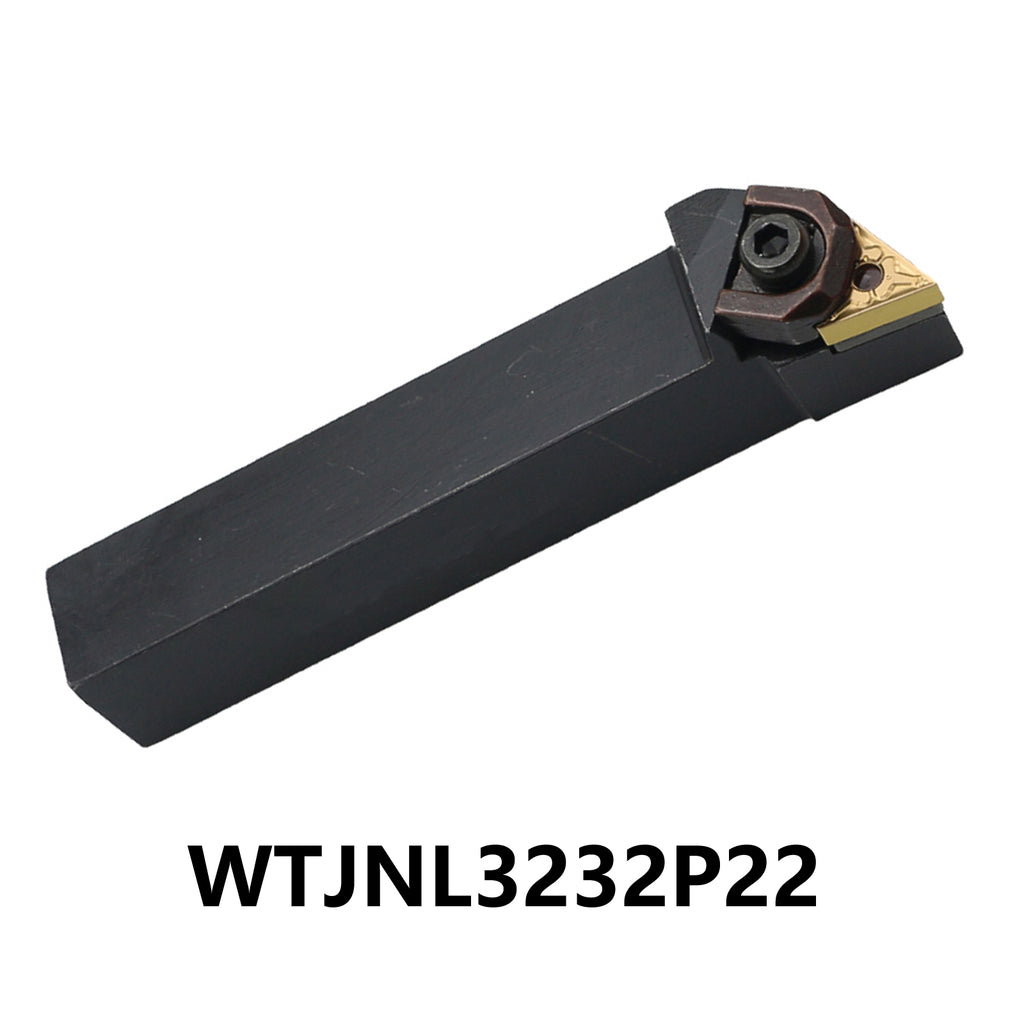

WTJNL3232P22 External Tool Holder – Precision Tooling with 93° Cutting Angle for Enhanced Machining Performance
Price shown is a starting point. Contact us for a precise quote based on your requirements.
BEYOND WTJNL 3232 3232P22 WTJNL External Turning Tools For Lathe WTJNL3232 P22 WTJNL3232P22 Carbide Inserts TNMG TNMG220404 Cutter Holder
-
Revolutionize Your Machining with the WTJNL3232P22 Tool Holder
-
Overview
Introducing the WTJNL3232P22 External Tool Holder, a cutting-edge solution designed to elevate your machining processes. With its unique 93° cutting edge angle, this tool holder optimizes chip flow and minimizes cutting resistance, ensuring a smoother operation for CNC machine tools and lathes. The robust M-type Wedge clamping system provides exceptional stability and durability, enabling you to achieve precise results with a variety of compatible blades. Its compact design maximizes space efficiency while offering reliability, making it a must-have in your machining toolkit.
-
Features and Specifications
- Model:WTJNL3232P22
- Package Includes: WTJNL3232P22 Tool Holder and compatible Shim,Pin,Clamp, Screws, and Wrenches
- 93° cutting edge angle and 0° relief angle.
- Type: W-Type ((Wedge clamping system)
- Shank width: 32mm
- Shank length: 32mm
- Total Length: 170mm
- Compatible Blades: TNMG220404 TNMG220408 TNMG220412 TNMG220416 TNMG431 TNMG432 TNMG433 TNMG444
-
Unleash Performance: Key Features of the WTJNL3232P22 External Tool Holder
-
5-Point Description
-
Unique Cutting Edge Angle of 93°: The WTJNL3232P22 boasts an innovative 93° cutting edge angle, specifically designed to improve chip removal and reduce cutting resistance, enhancing machining efficiency for various applications.
-
Robust Wedge Clamping System: Featuring a reliable W-type Wedge clamping system, this external cylindrical tool holder ensures exceptional stability and grip, reducing vibrations and increasing the longevity of both the tool and the workpiece.
-
Versatile Blade Compatibility: The tool holder is compatible with a range of blades, including TNMG220404, TNMG220408, TNMG220412, TNMG220416, TNMG431, TNMG432, TNMG433, and TNMG444, making it adaptable for diverse machining tasks in CNC machines and lathes.
-
Compact and Durable Design: With dimensions of 32mm for both shank width and length, and a total length of 170mm, the WTJNR3232P22 combines durability and compactness, making it an ideal choice for efficient machining in tight spaces.
-
Complete Tool Setup Included: Each WTJNL3232P22 tool holder package comes complete with necessary components, ensuring a quick and easy setup. Enhance your tooling arsenal with this all-in-one solution for your CNC machining needs.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
