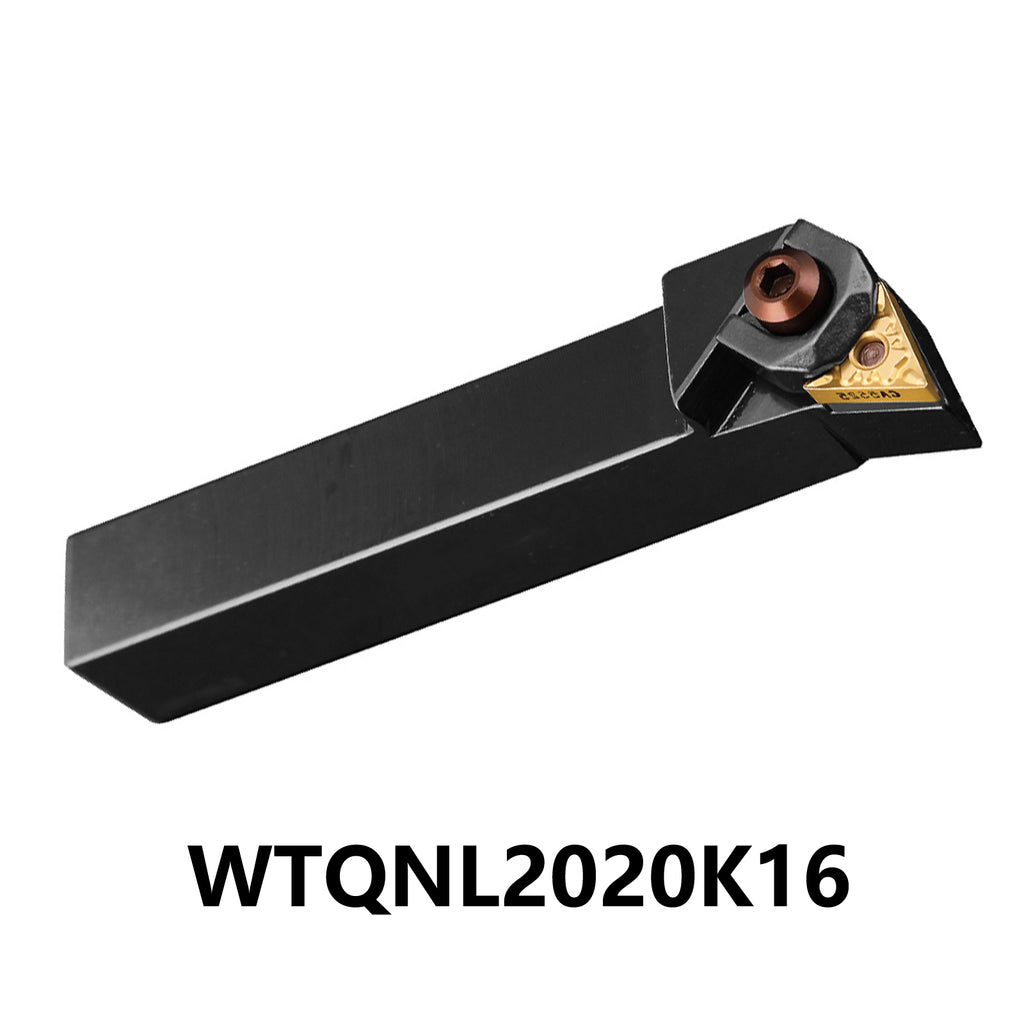

WTQNL2020K16 External Tool Holder – Precision Tooling with 105° Cutting Edge for Enhanced Machining Performance
✓ In Stock & Fast Dispatch: Order processing: typically 1–3 business days after confirmation.
✓ Global Shipping: Delivery: generally 5–20 business days, depending on destination and shipping method.
✓ Guaranteed Quality: Check model, dimensions and compatibility before ordering. | Direct Factory Outlet
✓ Technical Support: Need grade selection help? Contact Engineer
💰 Bulk savings 2-9 pcs · 6% OFF | 10+ pcs · 12% OFF
BEYOND WTQNR 2020K16 WTQNL External Turning Tools WTQNL2020K16 Machine Cutter Holder WTQNR2020 K16 Carbide Inserts TNMG TNMG160404 TNMG160408
-
Enhance Your Machining Efficiency with the WTQNL2020K16 Tool Holder
-
Overview
Introducing the WTQNL2020K16 External Tool Holder, a cutting-edge solution designed to elevate your machining operations. With a precision cutting edge angle of 105°, this tool holder is engineered for optimal chip control and reduced cutting forces, making it perfect for high-performance CNC machines and lathes. The reliable W-type wedge clamping system ensures stability and minimizes vibration, delivering unparalleled accuracy in every cut. Its compact design allows for efficient use in tight spaces, while the included setup components enable a quick installation.
-
Features and Specifications
- Model:WTQNL2020K16
- Package Includes: WTQNL2020K16 Tool Holder and compatible Shim,Pin,Clamp, Screws, and Wrenches
- 105° cutting edge angle and 0° relief angle.
- Type: W-Type ((Wedge clamping system)
- Shank width: 20mm
- Shank length: 20mm
- Total Length: 125mm
- Shim: MT1603
- Pin: CTM515-T
- Clamp: HLT-16
- Screw: M5*23
- Wrench: L2.5 L4.0
- Compatible Blades: TNMG160404 TNMG160408 TNMG160412 TNMG331 TNMG332 TNMG333
-
Key Features of the WTQNL2020K16 External Tool Holder
-
5-Point Description
-
Precision Cutting Edge Angle of 105°: The WTQNL2020K16 features a unique 105° cutting edge angle, optimizing your machining processes by providing better chip control and reducing cutting forces for smoother operation.
-
Reliable Wedge Clamping System: Engineered with a robust W-type wedge clamping system, this tool holder ensures maximum grip and stability, significantly reducing tool vibration and enhancing machining accuracy.
-
Versatile Compatibility: This tool holder supports a wide range of blades, including TNMG160404, TNMG160408, TNMG160412, TNMG331, TNMG332, and TNMG333, making it an adaptable choice for various CNC machines and lathes.
-
Compact and Efficient Design: With a shank width and length of 20mm and a total length of 125mm, the WTQNL2020K16 is designed for efficiency in confined spaces, ensuring that you maximize your machining capabilities without compromising on performance.
-
Complete Setup Components Included: The package includes essential components such as shim (MT1603), pin (CTM515-T), clamp (HLT-16), screw (M5*23), and wrenches (L2.5, L4.0), facilitating a quick and hassle-free installation process for immediate use.
