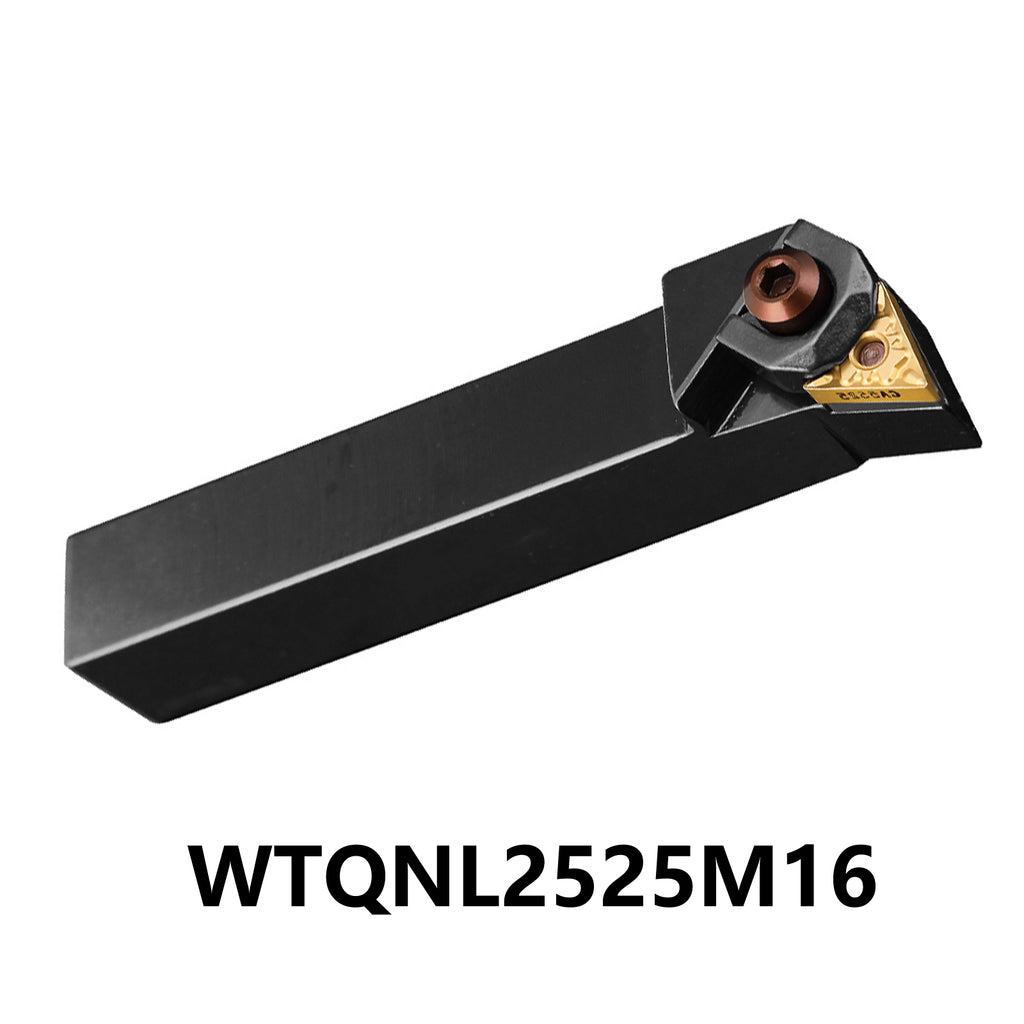

BEYOND WTQNL2525 M16 WTQNL 2525M16  External Lathe Turn Tool holder WTQNL2525M16 CNC Machine Cutter Carbide Inserts TNMG TNMG160404

• Enhance Your Machining Process with the WTQNL2525M16 Wedge Clamping Tool Holder

• Overview

Introducing the WTQNL2525M16 External Tool Holder—engineered for optimal performance in CNC machining applications. With a cutting edge angle of 105° and a wedge clamping system, this tool holder offers unparalleled stability and precision for various machining tasks. Ideal for CNC lathes and machining centers, the WTQNL2525M16 is designed to enhance your productivity while ensuring high-quality finishes.

• Features and Specifications

  • Model:WTQNL2525M16
  • Package Includes: WTQNL2525M16  Tool Holder and compatible Shim,Pin,Clamp, Screws, and Wrenches
  • 105° cutting edge angle and 0° relief angle.
  • Type: W-Type ((Wedge clamping  system)
  • Shank width: 25mm
  • Shank length: 25mm
  • Total Length: 150mm
  • Shim: MT1603
  • Pin: CTM515-T
  • Clamp: HLT-16
  • Screw: M5*23
  • Wrench: L2.5 L4.0
  • Compatible Blades: TNMG160404 TNMG160408 TNMG160412 TNMG331 TNMG332 TNMG333

• Versatile and Reliable Tooling Solutions for CNC Lathes and Machining Centers

• 5-Point Description

1. Optimal Cutting Geometry: The WTQNL2525M16 features a cutting edge angle of 105° and a blade relief angle of 0°, providing superior cutting performance for various materials and applications.

2. Advanced Wedge Clamping System: Equipped with a reliable W-type wedge clamping system, this tool holder ensures maximum tool security, reducing vibration and increasing accuracy during machining operations.

3. Versatile Compatibility: Compatible with a range of blades including TNMG160404, TNMG160408, TNMG160412, TNMG331, TNMG332, and TNMG333, making it a versatile choice for different machining needs.

4. Durable Construction: With dimensions of 25mm for both shank width and standard width, and a total length of 150mm, this tool holder is designed for durability and long-lasting performance in demanding environments.

5. Comprehensive Tooling Kit: The WTQNL2525M16 comes with essential components such as shim (MT1603), pin (CTM515-T), clamp (HLT-16), screw (M5*23), and wrenches (L2.5 and L4.0) for a complete and efficient setup.
