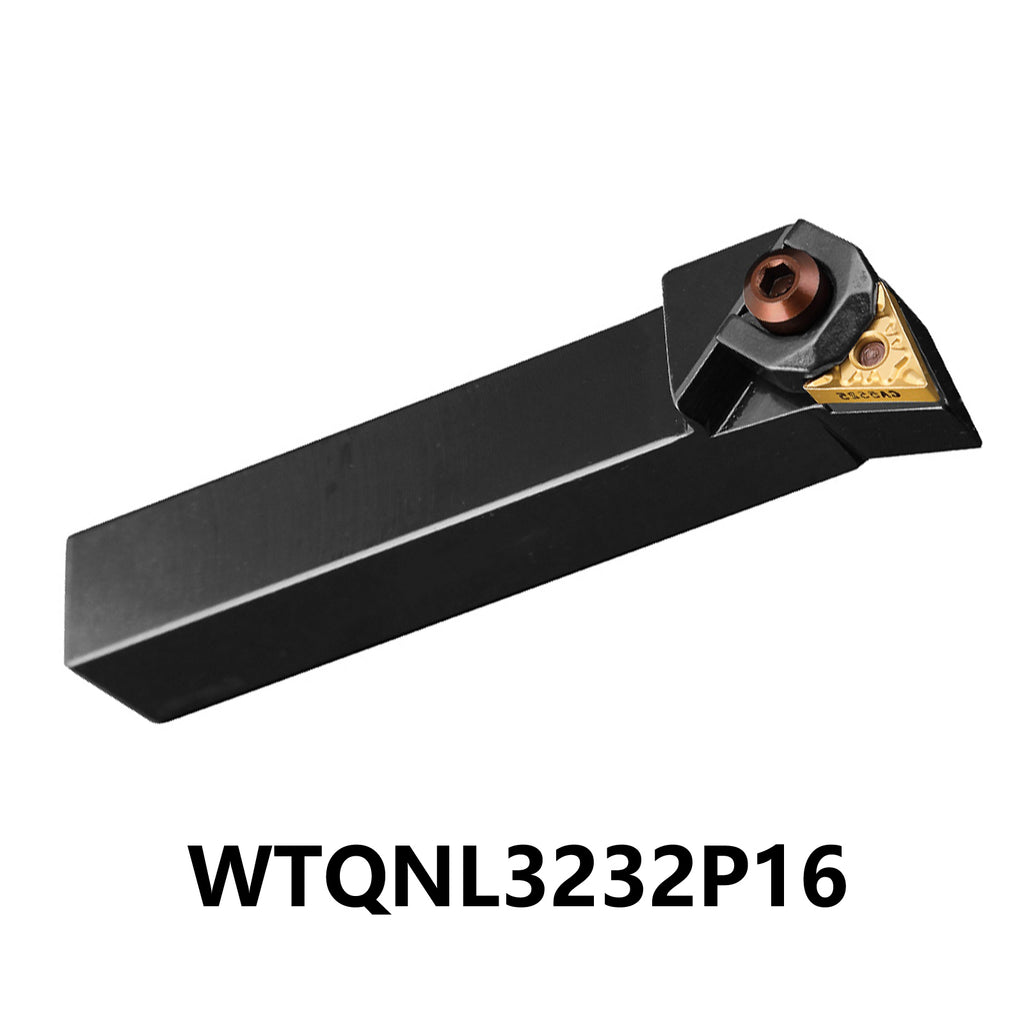

WTQNL3232P16 External Tool Holder: Precision and Performance Redefined
-
Overview
Introducing the WTQNL3232P16 External turning insert holder, designed to elevate your CNC machining experience with unparalleled precision and efficiency. Featuring a cutting edge angle of 105° and a wedge clamping system, this tool holder ensures secure tool retention while minimizing vibrations during operation. With dimensions optimized for performance—shank width and length of 32mm and a total length of 170mm—this robust tool holder is compatible with various TNMG blades, making it perfect for CNC lathes and machining centers.
-
Features and Specifications
- Model:WTQNL3232P16
- Package Includes: WTQNL3232P16 Tool Holder and compatible Shim,Pin,Clamp, Screws, and Wrenches
- 105° cutting edge angle and 0° relief angle.
- Type: W-Type ((Wedge clamping system)
- Shank width: 32mm
- Shank length: 32mm
- Total Length: 170mm
- Shim: MT1603
- Pin: CTM515-T
- Clamp: HLT-16
- Screw: M5*23
- Wrench: L2.5 L4.0
- Compatible Blades: TNMG160404 TNMG160408 TNMG160412 TNMG331 TNMG332 TNMG333
-
Unmatched Features of the WTQNL3232P16 Tool Holder
-
5-Point Description
-
Enhanced Cutting Edge Angle: The WTQNL3232P16 features a cutting edge angle of 105°, allowing for superior chip removal and exceptional surface finish, making it ideal for high-speed machining.
-
Wedge Clamping System: This tool holder incorporates a robust wedge clamping system that ensures a firm grip on the tool, reducing vibrations and increasing machining accuracy for superior results.
-
Versatile Blade Compatibility: Compatible with a range of TNMG blade types, including TNMG160404, TNMG160408, and TNMG332, this tool holder offers the flexibility needed for various machining applications.
-
Optimized Dimensions: With a shank width and length of 32mm and a total length of 170mm, the WTQNL3232P16 is designed for durability and performance, ensuring it withstands the rigors of daily CNC operations.
-
Complete Accessory Package Included: Each purchase includes essential accessories like shim (MT1603), pin (CTM515-T), clamp (HLT-16), screw (M5*23), and wrenches (L2.5 and L4.0), ensuring you have everything needed for efficient setup and use.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
