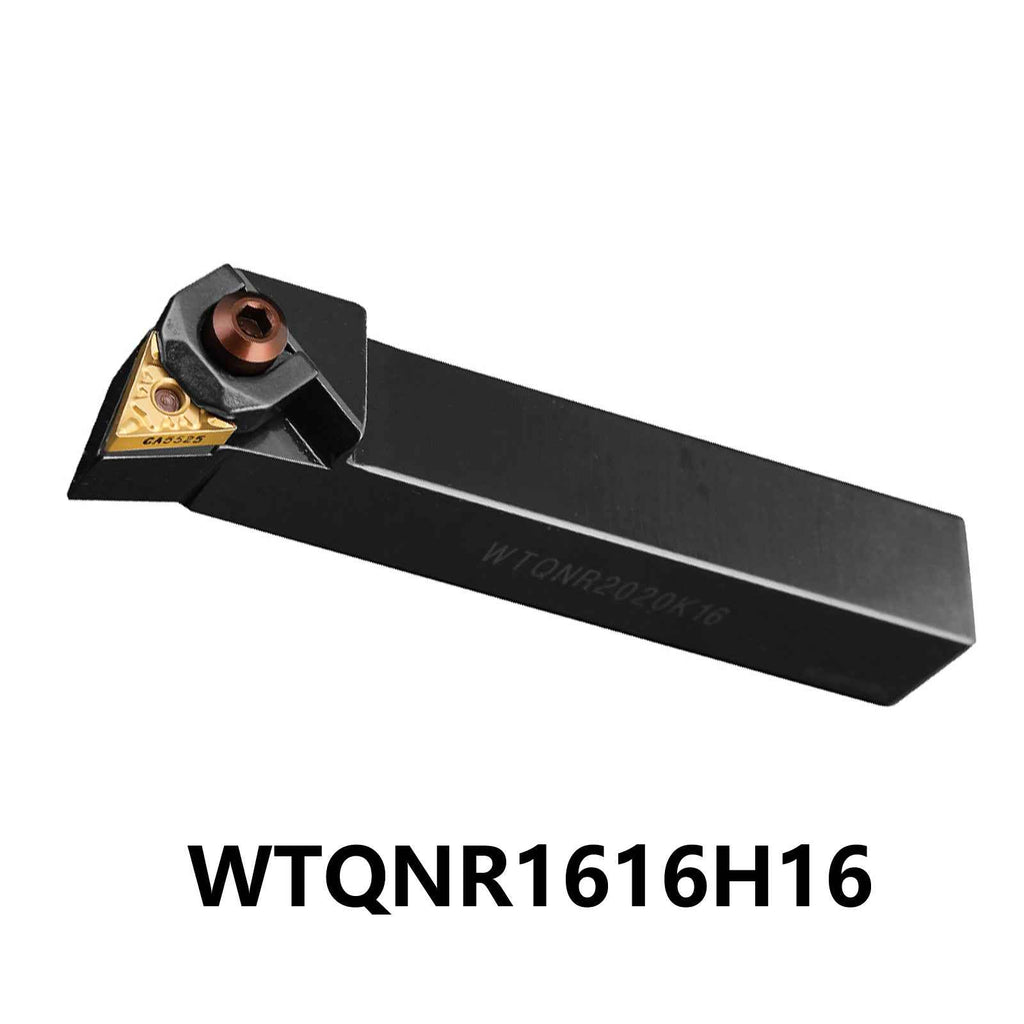

Buy WTQNR1616H16 External Tool Holder - 105° Cutting Angle for CNC Lathe
Price shown is a starting point. Contact us for a precise quote based on your requirements.
BEYOND WTQNR 1616 1616H16 CNC Lathe Cutter Holder WTQNL External Turning Tools WTQNR1616H16 WTQNR1616 H16 Carbide Inserts TNMG TNMG1604
-
Increase Machining Efficiency with the WTQNR1616H16 External Tool Holder
-
Overview
The WTQNR1616H16 external tool holder is designed for precision machining and unmatched stability in CNC lathes and machining centers. With a cutting-edge angle of 105° and 0° relief, it delivers superior performance in external cylindrical operations. Featuring a robust wedge clamping system (W-type), this tool holder ensures secure blade fastening and minimal vibrations for precise and reliable cutting. Compact yet powerful, the WTQNR1616H16 is a must-have tool holder for those seeking optimized machining performance.
-
Features and Specifications
- Model:WTQNR1616H16
- Package Includes: WTQNR1616H16 Tool Holder and compatible Shim,Pin,Clamp, Screws, and Wrenches
- 105° cutting edge angle and 0° relief angle.
- Type: W-Type ((Wedge clamping system)
- Shank width: 16mm
- Shank length: 16mm
- Total Length: 100mm
- Shim: MT1603
- Pin: CTM515-T
- Clamp: HLT-16
- Screw: M5*23
- Wrench: L2.5 L4.0
- Compatible Blades: TNMG160404 TNMG160408 TNMG160412 TNMG331 TNMG332 TNMG333
-
Why the WTQNR1616H16 External Tool Holder is Ideal for CNC Machining
-
5-Point Description
-
105° Cutting Edge Angle for Superior Performance: The WTQNR1616H16 external tool holder features a 105° cutting angle, ideal for achieving precision in external cylindrical machining applications, ensuring smooth cuts and enhanced part quality.
-
W-Type Wedge Clamping System: This tool holder is equipped with a W-type wedge clamping system, providing secure blade fastening with minimal setup time. This design reduces tool vibration, increases stability, and maximizes cutting performance.
-
Compact and Durable Design: Measuring 16mm in width and length with a total length of 100mm, the WTQNR1616H16 offers a compact yet highly durable solution for heavy-duty CNC machining tasks.
-
Versatile Blade Compatibility: Designed to work with a variety of TNMG blades, including TNMG160404, TNMG160408, and TNMG331, this tool holder adapts to multiple material types and machining processes.
-
Comprehensive Tool Kit: Comes complete with essential accessories like the MT1603 shim, CTM515-T pin, HLT-16 clamp, M5*23 screw, and wrenches (L2.5 and L4.0), ensuring you have everything you need for immediate use.

|
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
