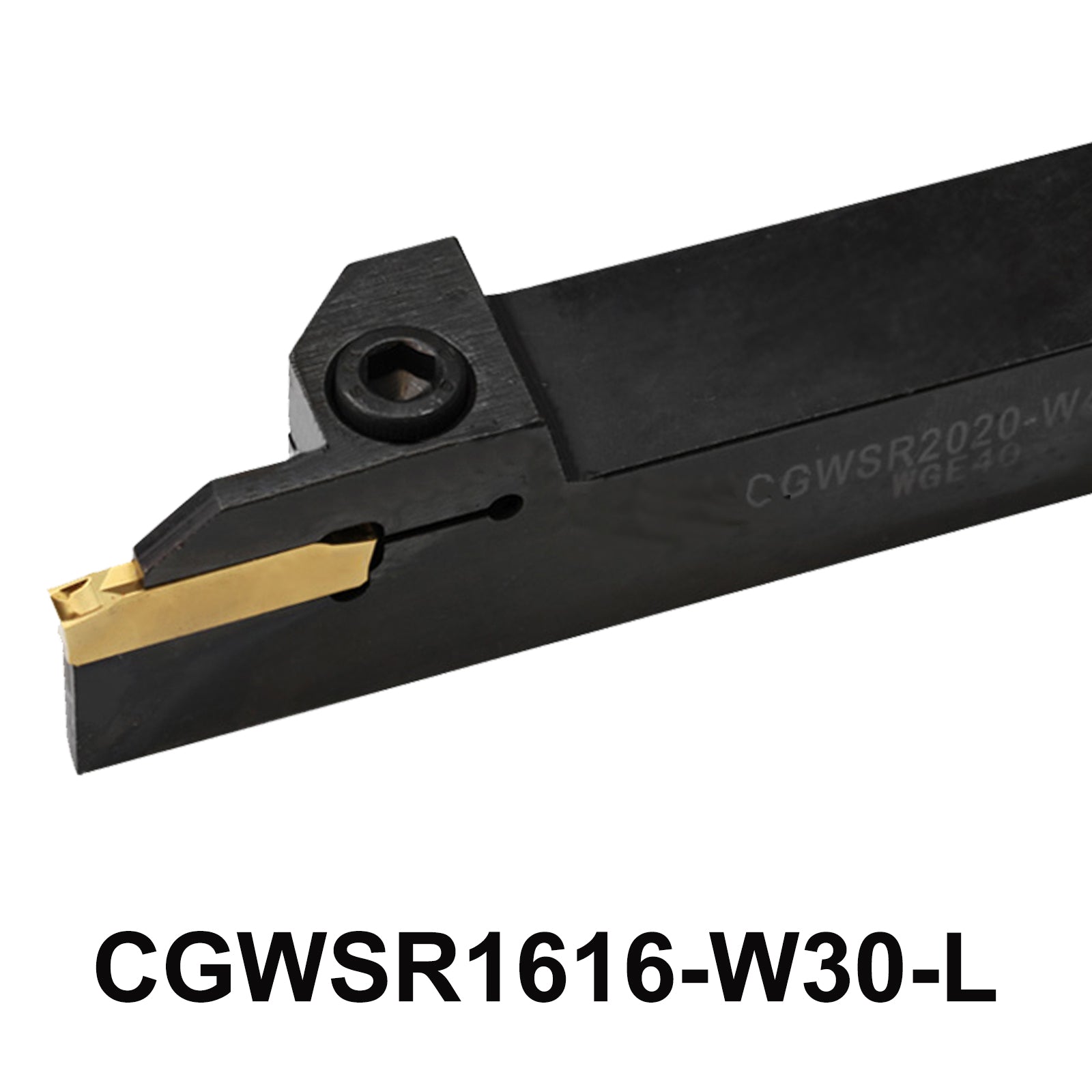

CGWSR1616-W30-L Slotting Machine Cutting Tool Holder - Maximize Cutting Precision
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
The CGWSR1616-W30-L Slotting Machine Cutting Tools is a high-quality, durable solution designed for precision grooving and turning operations on CNC lathes.
Built to fit lathe sizes of 16mm x 16mm x 100mm, this tool holder offers a cutting width of 3mm and can accommodate inserts with a maximum depth of cut (Tmax) up to 20mm. The holder is compatible with WGE30 inserts, ensuring superior performance in a variety of machining applications.
Product parameters:
-
Tool Holder Model: CGWSR1616-W30-L
-
Tool Holder Material : Carbide Steel, Carbon Steel
-
Tool Holder Size : About 16 * 16 * 100 mm
- Tmax : 20mm
-
Cutting Width : About 3 mm
-
Applicable blade : WGE30
- Screw : M5*20
- Wrench : L4
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * CGWSR1616-W30-L Slotting Machine Cutting Tools
1 * "L" Type wrench
1 * M5*20 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND CGWSR1616-W30-L Slotting Machine Cutting Tools CGWSR1616-W30-L CGWSR 1616 CGWSR1616 W30 L CNC Lathe Cutter Holder Machine Metal Tool
-
Efficient and Durable Slotting with CGWSR1616-W30-L Tool Holder
-
Versatile CNC Solution: Maximize Your Cutting Width and Depth
-
Complete Package for Easy Installation and Performance
-
Compact and Robust Design for Slotting Precision
-
Compatible with WGE30 Inserts for Versatile Applications
-
Quick and Easy Setup with Included Screws and Wrench
5-Point Description
-
Optimal Slotting Performance:
Designed for precise slotting, the CGWSR1616-W30-L cutting tool holder provides a cutting width of 3mm and a maximum depth of 20mm, ensuring you achieve clean and accurate slots every time. -
Compatible with WGE30 Inserts:
This tool holder is fully compatible with WGE30 inserts, making it an ideal choice for a wide range of machining tasks. Whether for roughing or finishing, it offers flexibility and superior cutting quality. -
Complete Installation Kit Included:
The package comes with everything you need to get started: M5*20 screws and an L4 wrench, making installation quick, easy, and hassle-free. You'll be ready to work in no time. -
Durable and High-Quality Construction:
Built with durable materials, the CGWSR1616-W30-L tool holder is designed to withstand demanding machining conditions, providing long-lasting performance even under heavy use. -
Compact and Efficient:
With a compact size of 16x16x100mm, this tool holder offers excellent control and maneuverability, making it perfect for slotting tasks in tight spaces or intricate operations.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
