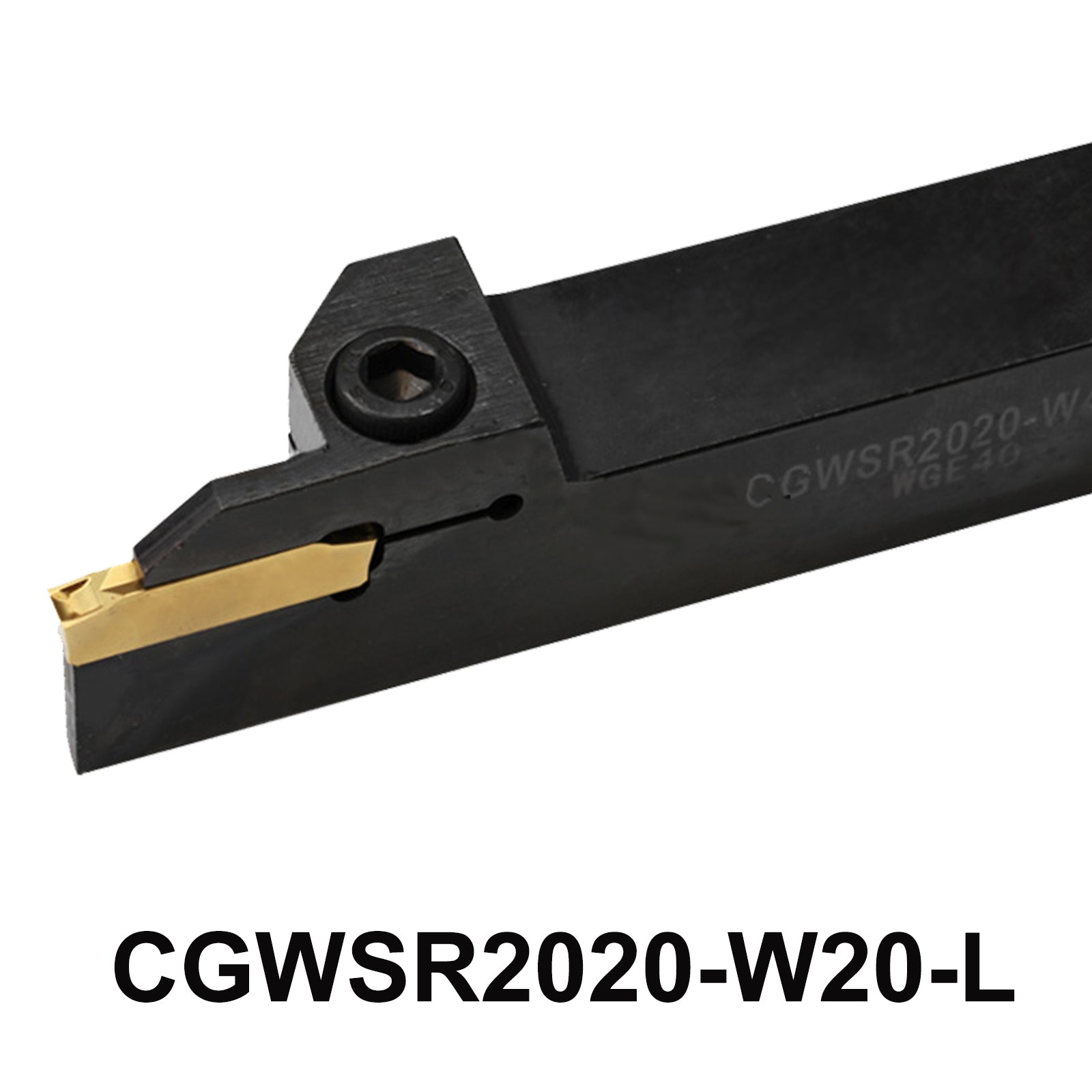

CGWSR2525-W20-L External Grooving Toolholder – 2mm Cutting Width, 20mm Depth
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
The CGWSR2525-W20-L External Grooving Toolholder is a high-quality, durable solution designed for precision grooving and turning operations on CNC lathes.
Built to fit lathe sizes of 25mm x 25mm x 150mm, this tool holder offers a cutting width of 2mm and can accommodate inserts with a maximum depth of cut (Tmax) up to 20mm. The holder is compatible with WGE20 inserts, ensuring superior performance in a variety of machining applications.
Product parameters:
-
Tool Holder Model: CGWSR2525-W20-L
-
Tool Holder Material : Carbide Steel, Carbon Steel
-
Tool Holder Size : About 25 * 25 * 150 mm
- Tmax : 20mm
-
Cutting Width : About 2 mm
-
Applicable blade : WGE20
- Screw : M6*20
- Wrench : L5

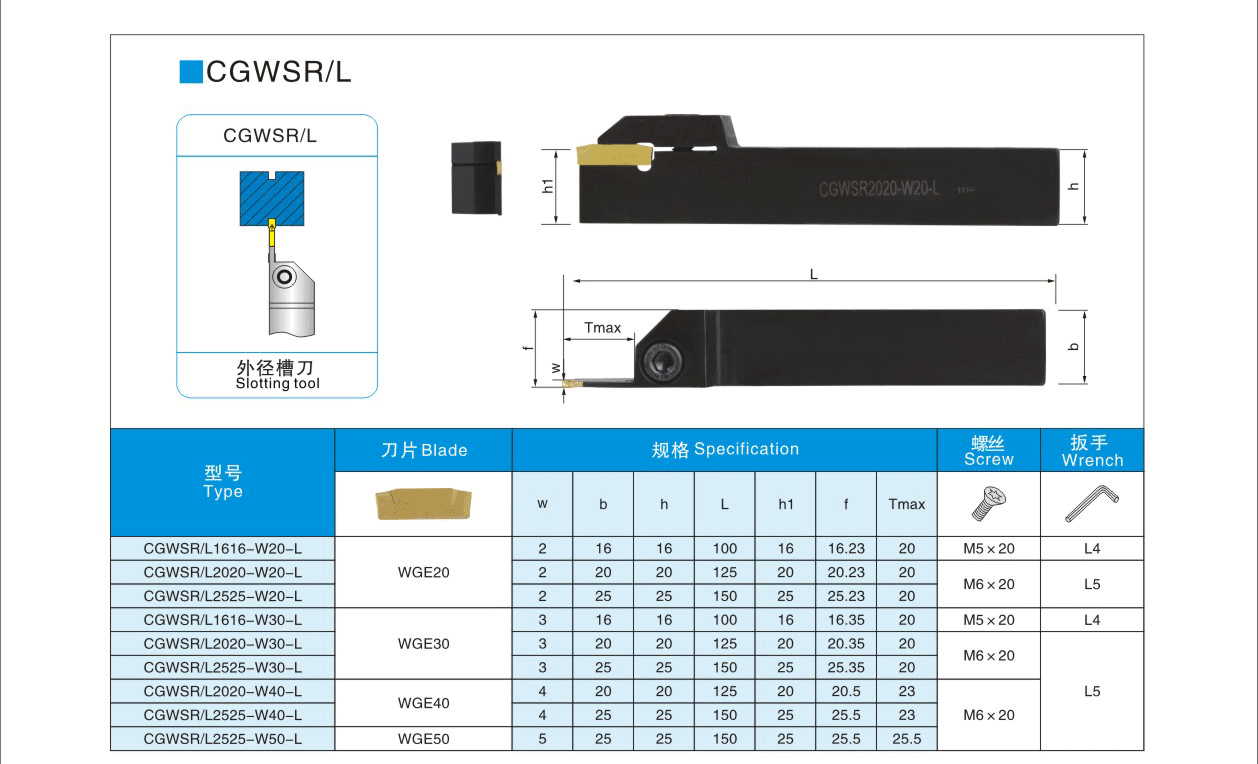

- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * CGWSR2525-W20-L External Grooving Toolholder
1 * "L" Type wrench
1 * M6*20 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND CGWSR2525-W20-L External Grooving Toolholder CGWSR2525-W20-L CGWSR 2525 CGWSR2525 W20 L CNC Lathe Cutter Holder Machine Metal Tool
-
Enhance Your CNC Lathe Performance with the CGWSR2525-W20-L External Grooving Toolholder
-
Discover the Power and Precision of the CGWSR2525-W20-L External Grooving Toolholder for Superior Machining
5-Point Description
-
Precision External Grooving: The CGWSR2525-W20-L external grooving toolholder features a 2mm cutting width, perfect for precise grooving operations on external surfaces, ensuring smooth cuts and exceptional finish quality.
-
Optimized Lathe Size: Designed with a lathe size of 2525150mm, this toolholder ensures stability and rigidity, delivering consistent performance across a variety of CNC lathe applications. It’s ideal for both high-precision and heavy-duty machining.
-
Durable and Versatile: With a maximum depth of cut (Tmax) of 20mm, the CGWSR2525-W20-L can handle a wide range of workpieces, offering flexibility in various materials and applications. It supports WGE20 inserts, providing versatility in tooling.
-
Complete and Ready to Use: The toolholder comes complete with M6*20 screws and a L5 wrench, ensuring ease of installation and immediate setup. No need to buy additional accessories, making it a convenient solution for your CNC operations.
-
High-Quality Construction: Made from high-grade materials, the CGWSR2525-W20-L is built to withstand the rigors of CNC lathe operations, ensuring longevity, high performance, and reliable results over time.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
