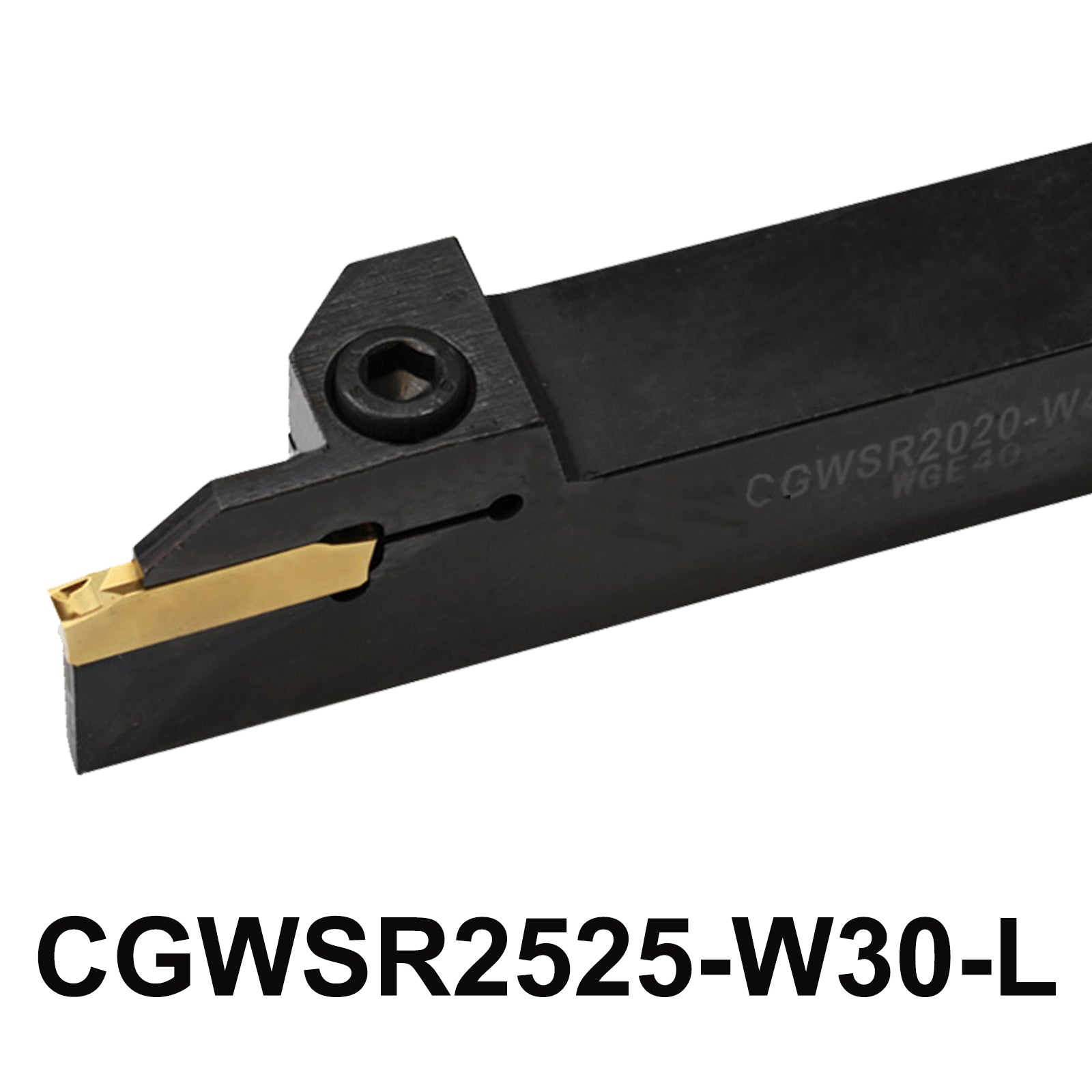

Shop CGWSR2525-W30-L CNC Lathe Grooving Tool Holder – High Precision & Durability
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
The CGWSR2525-W30-L CNC Lathe Grooving Tool Holder is a high-quality, durable solution designed for precision grooving and turning operations on CNC lathes.
Built to fit lathe sizes of 25mm x 25mm x 150mm, this tool holder offers a cutting width of 3mm and can accommodate inserts with a maximum depth of cut (Tmax) up to 20mm. The holder is compatible with WGE30 inserts, ensuring superior performance in a variety of machining applications.
Product parameters:
-
Tool Holder Model: CGWSR2525-W30-L
-
Tool Holder Material : Carbide Steel, Carbon Steel
-
Tool Holder Size : About 25 * 25 * 150 mm
- Tmax : 20mm
-
Cutting Width : About 3 mm
-
Applicable blade : WGE30
- Screw : M6*20
- Wrench : L5
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * CGWSR2525-W30-L CNC Lathe Grooving Tool Holder
1 * "L" Type wrench
1 * M6*20 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND CGWSR2525-W30-L CNC Lathe Grooving Tool Holder CGWSR2525-W30-L CGWSR 2525 CGWSR2525 W30 L CNC Lathe Cutter Holder Machine Metal Tool
-
Unlock the Power of Precision Machining with the CGWSR2525-W30-L
-
High-Performance CNC Tool Holder for Efficient Grooving and Cutting
5-Point Description
-
Optimal Design for Grooving: The CGWSR2525-W30-L tool holder is designed for maximum efficiency in CNC lathe grooving applications, offering a cutting width of 3mm and a maximum cutting depth of 20mm, ideal for a wide range of materials and projects.
-
Sturdy and Accurate: Measuring 25mm x 25mm x 150mm, the tool holder provides a stable and precise setup for your lathe, ensuring consistent and accurate grooving results with every operation.
-
Complete Package for Easy Setup: Each CGWSR2525-W30-L includes the necessary M6*20 screws and L5 wrench, ensuring a smooth and quick installation process with everything you need to get started right away.
-
Compatibility with WGE30 Inserts: Designed specifically for use with WGE30 inserts, this tool holder offers flexibility for a variety of machining tasks, providing optimal cutting performance and longer tool life.
-
High-Quality Construction: Manufactured with top-quality materials, the CGWSR2525-W30-L CNC Lathe Grooving Tool Holder ensures durability, high performance, and reliability in demanding machining environments.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
