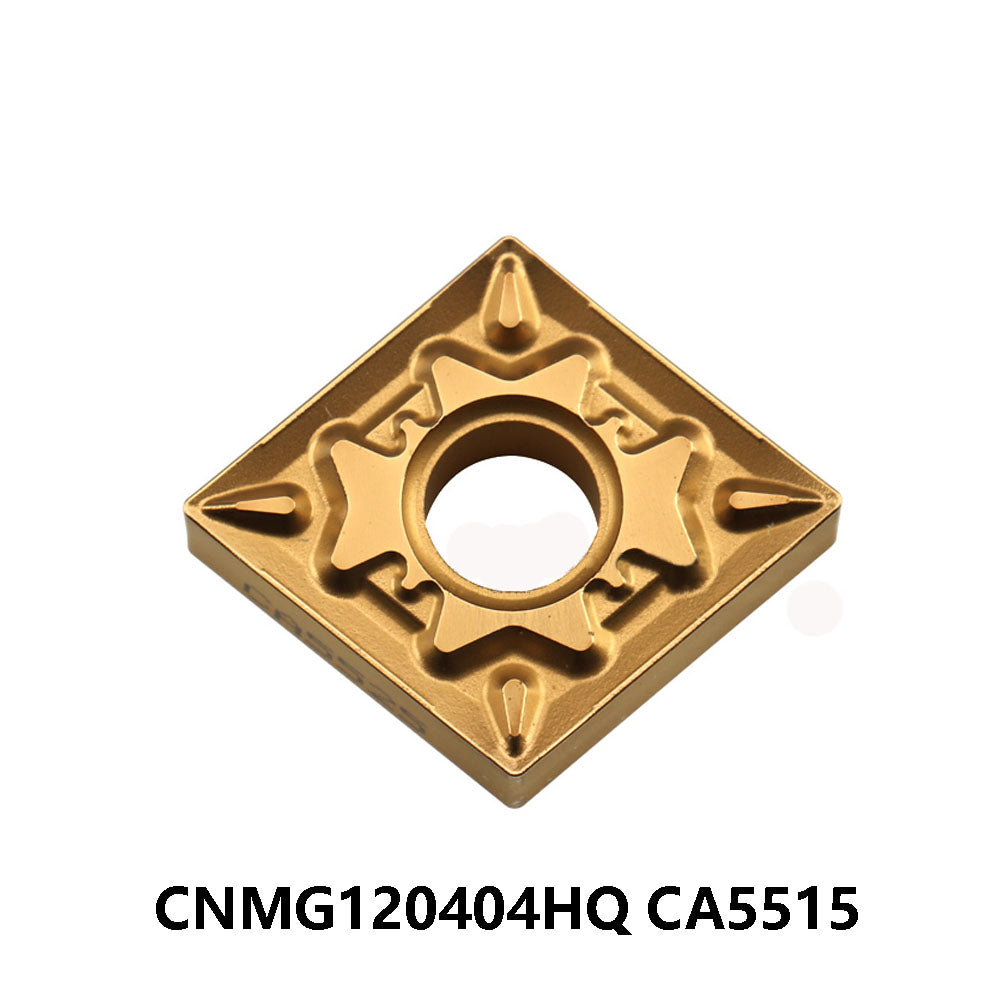

CNMG120404HQ CA5515 | Gold Coated General Purpose Insert for Medium Machining
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Product Description
Product Name: CNMG120404HQ CA5515
ANSI Part Number: CNMG431HQ CNMG431 HQ
ISO Part Number: CNMG120404HQ
Chip Breaker: HQ (General Purpose for Medium Machining)
Grade: CA5515
Color: Gold
Main Ingredients (Coating Ingredients): TiCN + Al2O3 + TiN
Advantages:
- High-performance general-purpose chip breaker for medium machining.
- Superior wear resistance with TiCN, Al2O3, and TiN coating.
- Suitable for machining steel, from continuous to light interruption.
Application:
- Steel machining
- Continuous to light interruption operations
Key Industry Keywords Included:
- CNC machining
- Medium machining insert
- Steel machining
- General purpose chip breaker
- Gold coated insert
- Wear-resistant insert
- TiCN coating
- Al2O3 coating
- TiN coating
- Continuous machining
- Light interruption machining
- High-performance insert
- Machining tool insert
Meta Description
Shop the CNMG120404HQ CA5515 insert for medium machining. Gold coated with TiCN, Al2O3, and TiN for superior wear resistance. Ideal for continuous to light interruption in steel machining. Keywords: CNC machining, medium machining insert, steel machining, general purpose chip breaker, gold coated insert.
H1, H2, H3 Tags
H1
CNMG120404HQ CA5515 | High-Quality Machining Insert for Medium Operations
H2
Key Features of CNMG120404HQ CA5515
H3
-
General Purpose Chip Breaker for Medium Machining
-
Gold Coated Insert with TiCN, Al2O3, and TiN
-
Superior Wear Resistance
-
Ideal for Steel Machining from Continuous to Light Interruption
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
