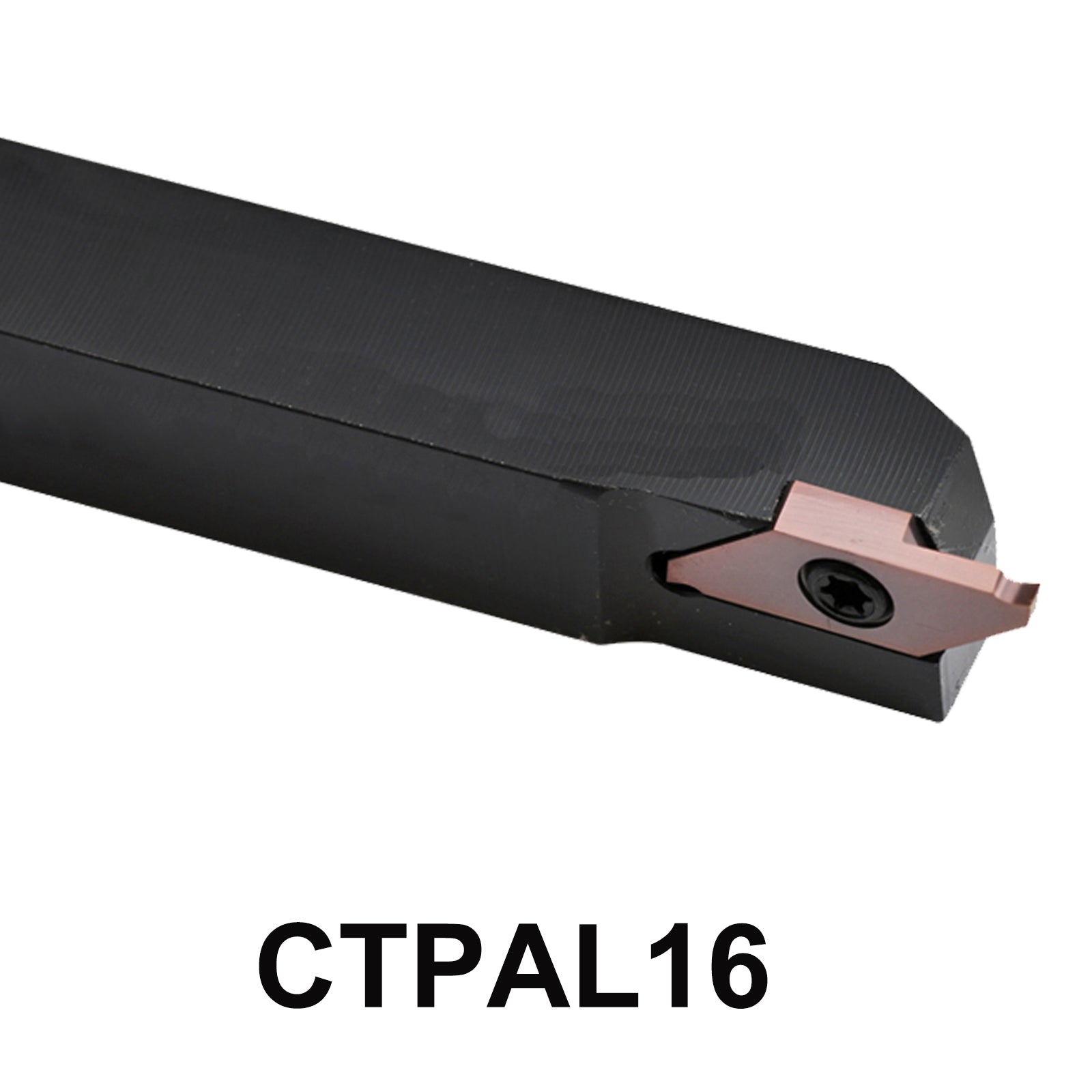

Buy CTPAL16 CNC Lathe Grooving Tool Holder | High-Quality CNC Lathe Cutter
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
The CTPAL16 CNC Lathe Grooving Tool Holder combines compact design with superior cutting capabilities, making it an ideal choice for precision machining tasks.
With a compact size of 16mm x 16mm x 120mm, this tool is perfect for detailed grooving tasks. Its robust construction allows for a maximum cutting depth of 4.5~9mm,compatible with CTPA07~20FL CTPAX15~20FL inserts,making it versatile for various applications
Product parameters:
-
Tool Holder Model: CTPAL16
-
Tool Holder Material : Carbide Steel, Carbon Steel
-
Tool Holder Size : About 16 * 16 * 120 mm
- Tmax : 4.5~9 mm
-
Applicable blade : CTPA07~20FL CTPAX15~20FL
-
Screw : M4*10
-
Wrench : T15

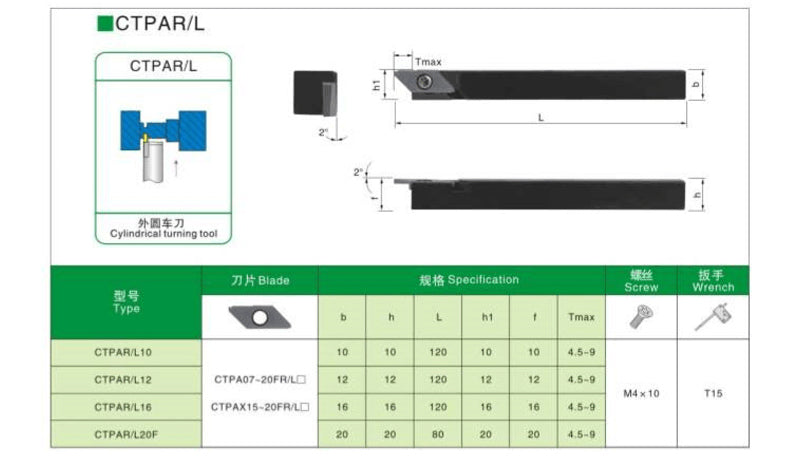

- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * CTPAL16 CNC Lathe Grooving Tool Holder
1 * "T" Type wrench
1 * M4*10 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND CTPAL16 External Grooving Turning Tools CTPAL16 CTPAL 16 CNC Lathe Grooving Tool Holder
Transform Your Machining Experience with the CTPAL16 Tool Holder
Key Features of the CTPAL16 CNC Lathe Grooving Tool Holder
5-Point Description
-
Robust Construction: The CTPAL16 External Grooving Tool Holder boasts a durable design that ensures long-lasting performance, even under the most demanding machining conditions.
-
Versatile Insert Compatibility: This tool holder is compatible with a wide range of inserts, including CTPA07~20FL,CTPAX15~20FL, providing flexibility for various grooving tasks.
-
Adjustable Cutting Depth: With a Tmax adjustment range of 4.5 to 9mm, the CTPAL16 allows for precise cutting depth control, making it suitable for a variety of applications.
-
Complete Tool Package: Each unit includes M4*10 screws and a T15 wrench, ensuring easy setup and operation right out of the box.
-
Designed for Professionals: Ideal for CNC lathe operators, this tool holder enhances machining efficiency and delivers high-quality results with every use.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
