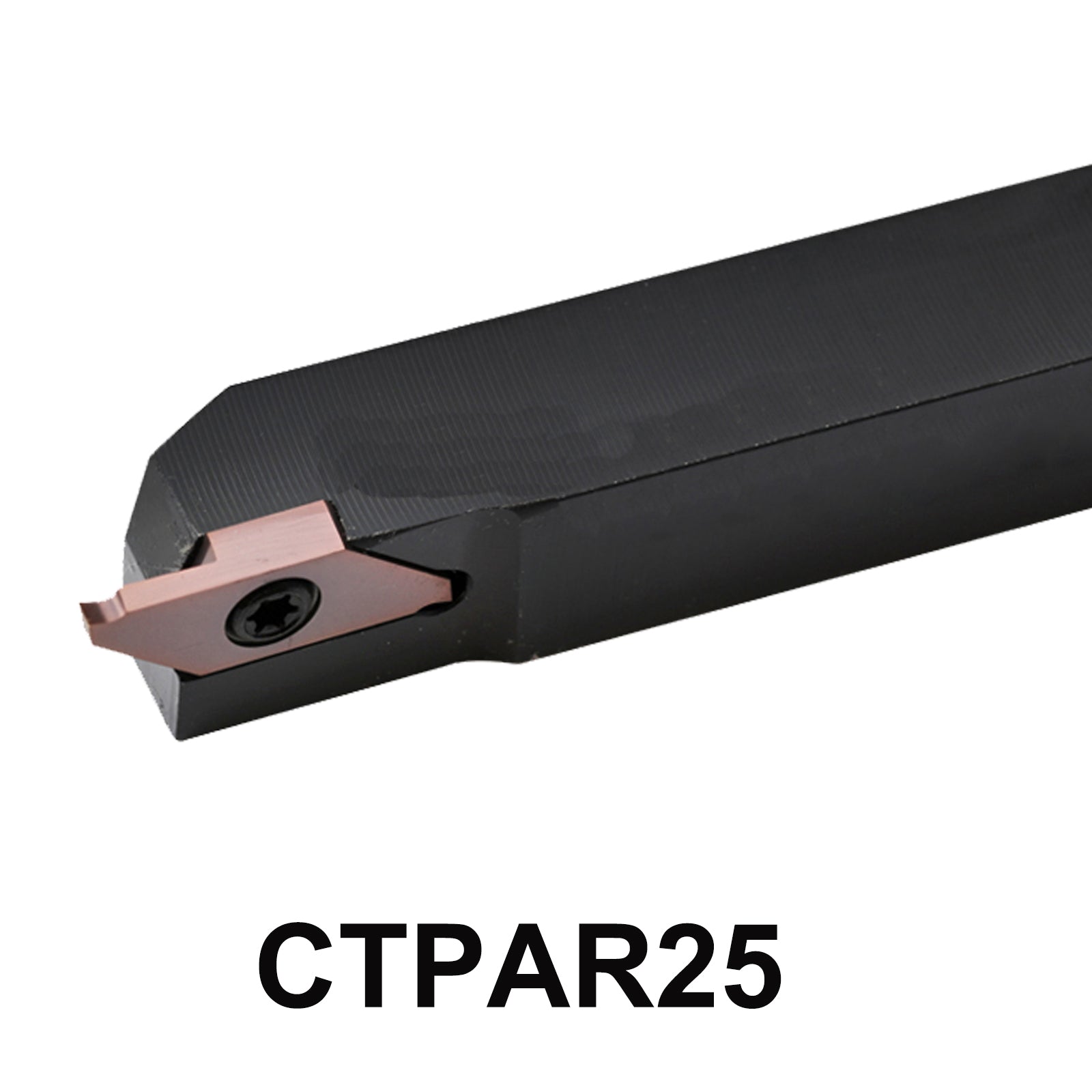

Shop CTPAR25 Grooving Lathe Tool Holder | Precision CNC Cutter
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
The CTPAR25 Grooving Lathe Tool Holder combines compact design with superior cutting capabilities, making it an ideal choice for precision machining tasks.
With a compact size of 25mm x 25mm x 120mm, this tool is perfect for detailed grooving tasks. Its robust construction allows for a maximum cutting depth of 4.5~9mm,compatible with CTPA07~20FR CTPAX15~20FR inserts,making it versatile for various applications
Product parameters:
-
Tool Holder Model: CTPAR25
-
Tool Holder Material : Carbide Steel, Carbon Steel
-
Tool Holder Size : About 25 * 25 * 120 mm
- Tmax : 4.5~9 mm
-
Applicable blade : CTPA07~20FR CTPAX15~20FR
-
Screw : M4*10
-
Wrench : T15
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * CTPAR25 Grooving Lathe Tool Holder
1 * "T" Type wrench
1 * M4*10 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND CTPAR25 Grooving Lathe Tool Holder CTPAR25 CTPAR 25 CNC Lathe Cutter Holder Machine Metal Tool
Elevate Your CNC Machining with the CTPAR25 Tool Holder
Key Features of the CTPAR25 Grooving Lathe Tool Holder
5-Point Description
-
Precision Engineering: The CTPAR25 Grooving Lathe Tool Holder features a robust 25x25mm design, ensuring exceptional stability and precision during machining, making it ideal for intricate grooving tasks.
-
Versatile Compatibility: Compatible with CTPA07~20FR,CTPAX15~20FR inserts, this tool holder provides flexibility for various cutting applications, allowing you to adapt to different project needs.
-
Adjustable Cutting Depth: With a Tmax range of 4.5 to 9mm, users can easily adjust the cutting depth for optimal performance, ensuring precision in every groove.
-
Complete Tool Set: The package includes essential M4*10 screws and a T15 wrench, facilitating a straightforward setup process and immediate use right out of the box.
-
Built for Professionals: Designed specifically for CNC lathe operators, the CTPAR25 Grooving Lathe Tool Holder enhances productivity and ensures high-quality results, making it a vital tool for any serious machinist.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
