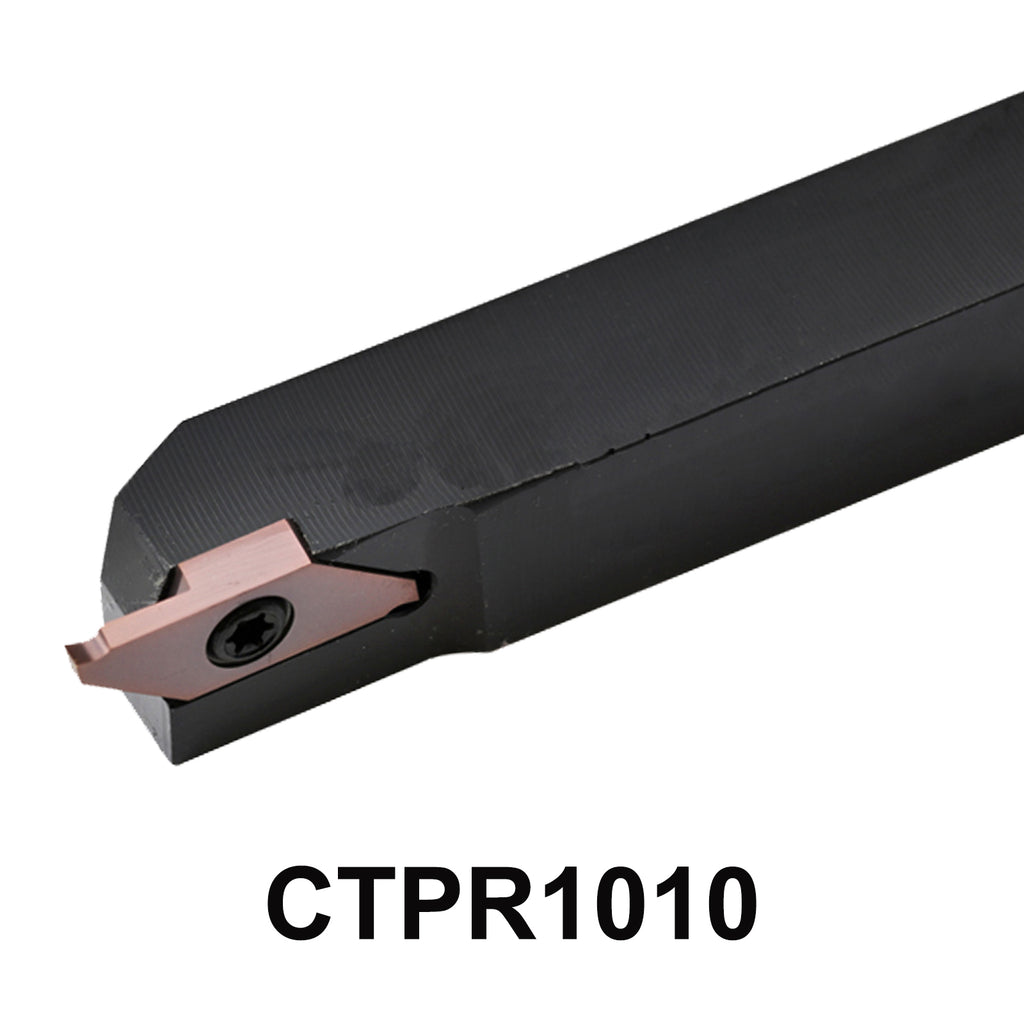

CTPR1010 10*10*120mm Grooving Lathe Tool Holder - Compact and Efficient
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
Introducing the CTPR1010 Grooving Lathe Tool Holder, engineered for precision and versatility in CNC machining.
With a compact size of 10mm x 10mm x 120mm, this tool is perfect for detailed grooving tasks. Its robust construction allows for a maximum cutting depth of 5.5mm,compatible with CTP07~20FR inserts,making it versatile for various applications
Product parameters:
-
Tool Holder Model: CTPR1010
-
Tool Holder Material : Carbide Steel, Carbon Steel
-
Tool Holder Size : About 10 * 10 * 120 mm
- Tmax : 5.5 mm
-
Applicable blade : CTP07~20FR
-
Screw : M4*10
-
Wrench : T15
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * CTPR1010 Grooving Lathe Tool Holder
1 * "T" Type wrench
1 * M4*10 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND CTPR1010 External Grooving Turning Tools CTPR1010 Grooving Lathe Tool Holder CTPR 1010 CNC Lathe Cutter Holder Machine Metal Tool
-
Achieve Superior Grooving with CTPR1010
-
Essential Features for Every CNC Machinist
-
Ready to Use: Complete Package for Convenience
-
Compact Design for Versatile Applications
-
Effortless Installation with Included Tools
-
Compatible with a Range of Inserts for Flexibility
5-Point Description
-
Compact and Efficient Design: With a lathe size of 10x10x120mm, the CTPR1010 Grooving Lathe Tool Holder is designed to fit easily into your CNC setup, offering reliable performance without taking up excessive space.
-
Maximize Your Grooving Depth: This tool holder allows for a maximum grooving depth of 5.5mm, enabling you to tackle a variety of tasks with precision and confidence.
-
All-Inclusive Package: Each CTPR1010 Grooving Lathe Tool Holder comes with the essential tools for installation—M4*10 screws and a T15 wrench—ensuring you have everything you need for a seamless setup.
-
Versatile Insert Compatibility: Designed to work with CTP07~20FR inserts, this tool holder offers flexibility and adaptability for various machining projects, enhancing your productivity.
-
Quality You Can Trust: Built with high-quality materials, the CTPR1010 promises durability and longevity, making it a valuable addition to your tool collection.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
