Purchase CTTR2525M22 Grooving Turning Tool Holder – High-Quality CNC Cutter
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:

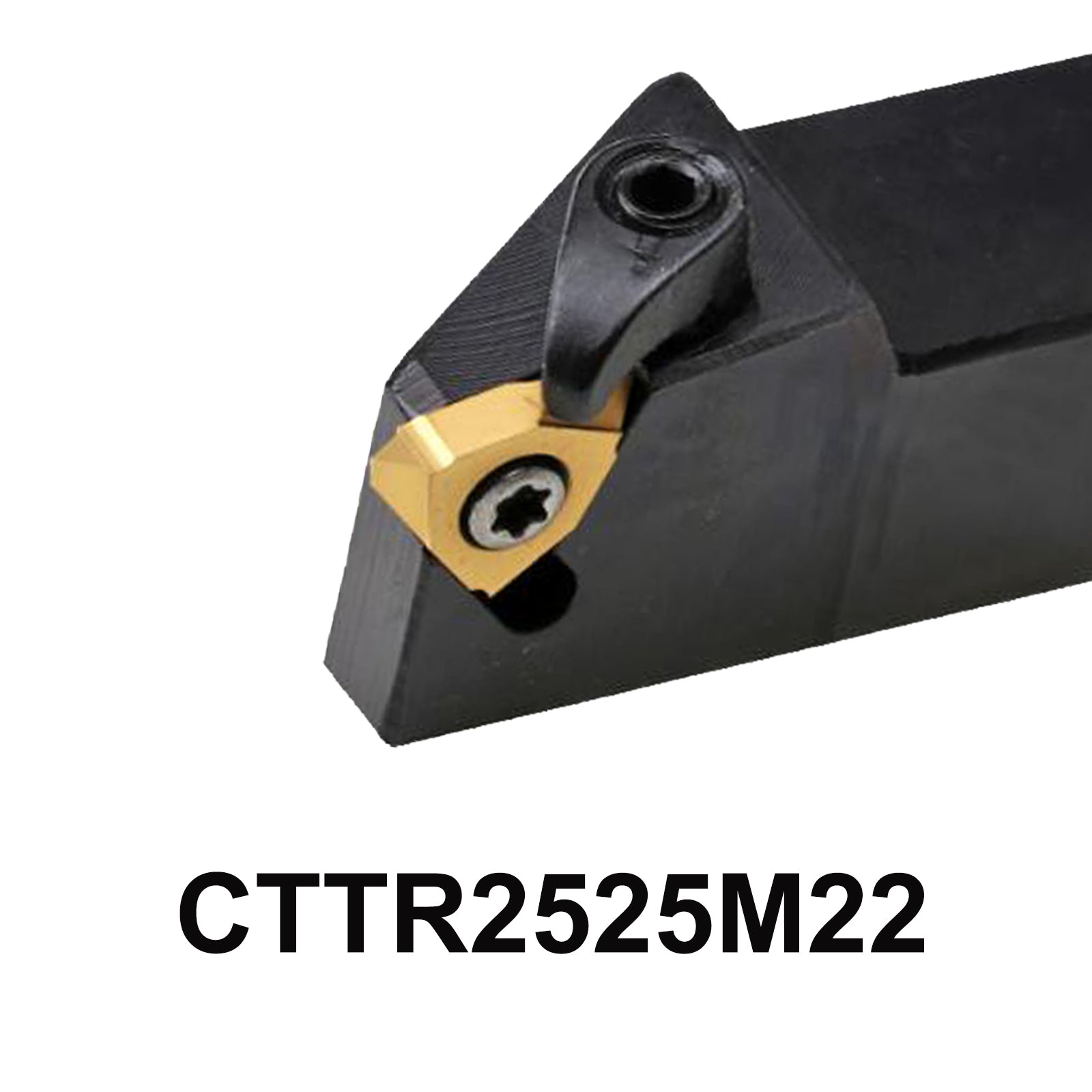

Introducing the CTTR2525M22 Outer Grooving Tool Holder, a premium solution for precision machining. With a compact lathe size of 25x25x150mm, this tool holder is engineered for durability and performance.
The package includes the tool holder, M5*12 screws,ML0520 Stud Screw, HL1808 clamp, and a T20 L2.5 wrench, designed for compatibility with TT43ER inserts.
Product parameters:
-
Tool Holder Model: CTTR2525M22
-
Tool Holder Material : Carbide Steel, Carbon Steel
- Tool Holder Size : About 25* 25 * 150 mm
-
Applicable blade : TT43ER
- Stud Screw : ML0520
-
Screw : M5*12
-
Wrench : T20 L2.5
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * CTTR2525M22 Outer Grooving Tool Holder
1 * "L" Type wrench
1 * "T" Type wrench
1 * M5*12 Type Screw
1 * ML0520 Stud Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND CTTR2525M22 External Grooving Turning Tools CTTR2525M22 CTTR2525 CTTR2525 M22 CNC Lathe Cutter Holder Machine Metal Tool
Transform Your Machining with the CTTR2525M22 Grooving Tool Holder
Efficient and Reliable: CTTR2525M22 for Advanced CNC Operations
5-Point Description
-
Optimal Dimensions: The CTTR2525M22 features a robust lathe size of 25x25x150mm, providing a stable platform for precision grooving, ensuring accurate and consistent cuts.
-
Comprehensive Installation Kit: Each package includes all necessary components, such as M5x12 screws, HL1808 clamps, ML0520 stud screws, and T20 wrenches, allowing for quick and effortless setup.
-
Versatile Insert Compatibility: Designed to accommodate TT43ER inserts, this tool holder is perfect for a wide range of grooving applications, enhancing your machining versatility.
-
Durable Construction: Crafted from high-quality materials, the CTTR2525M22 is built to withstand demanding machining environments, ensuring longevity and reliability.
-
Enhanced Efficiency: This tool holder is engineered for optimal performance, allowing you to maximize productivity while achieving high-quality results in your CNC projects.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
