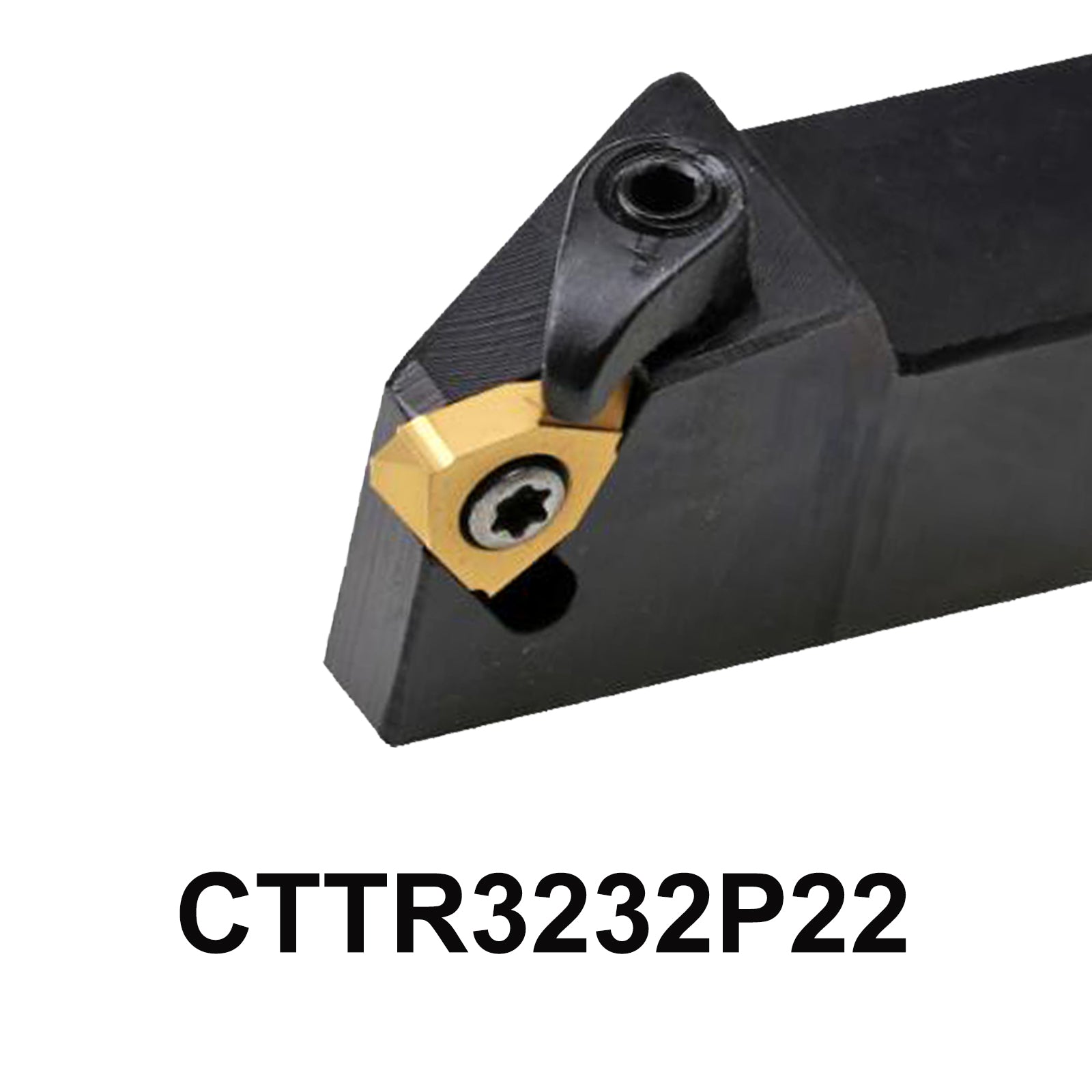

CTTR3232P22 Lathe Face Grooving Tool | Durable & High-Performance CNC Tool Holder
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
Introducing the CTTR3232P22 Lathe Face Grooving Tool, a premium solution for precision machining. With a compact lathe size of 32x32x170mm, this tool holder is engineered for durability and performance.
The package includes the tool holder, M5*12 screws,ML0520 Stud Screw, HL1808 clamp, and a T20 L2.5 wrench, designed for compatibility with TT43ER inserts.
Product parameters:
-
Tool Holder Model: CTTR3232P22
-
Tool Holder Material : Carbide Steel, Carbon Steel
- Tool Holder Size : About 32* 32 * 170 mm
-
Applicable blade : TT43ER
- Stud Screw : ML0520
-
Screw : M5*12
-
Wrench : T20 L2.5
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * CTTR3232P22 Lathe Face Grooving Tool
1 * "L" Type wrench
1 * "T" Type wrench
1 * M5*12 Type Screw
1 * ML0520 Stud Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND CTTR3232P22 Lathe Face Grooving Tool CTTR3232P22 CTTR3232 CTTR3232 P22 CNC Lathe Cutter Holder Machine Metal Tool
-
Achieve Precision Grooving with the CTTR3232P22
-
Complete Package for Easy Setup and Operation
-
Exceptional Compatibility with High-Performance Inserts
-
Robust Design for Enhanced Durability
-
Everything You Need in One Package
-
Optimized for Efficiency with TT43ER Inserts
5-Point Description
-
Robust Dimensions: The CTTR3232P22 features a sturdy size of 32mm x 32mm x 170mm, engineered for stability and performance in various face grooving applications, making it an essential tool for precision machining.
-
Comprehensive Installation Kit: Each package includes all necessary components, such as M5*12 screws, HL1808 clamp, ML0520 stud screw, and T20 & L2.5 wrenches, ensuring a hassle-free setup right out of the box.
-
High Compatibility: Designed for use with TT43ER inserts, this tool holder offers versatility, allowing machinists to tackle a wide range of materials and cutting conditions with ease.
-
Durable Construction: Made from high-quality materials, the CTTR3232P22 is built to withstand the rigors of CNC machining, ensuring longevity and reliable performance in your workshop.
-
Precision Engineering: This lathe face grooving tool is designed for accuracy, allowing for clean and precise cuts that enhance the quality of your workpieces and reduce rework time.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
