HRC55 Micro Carbide Drill Bits 0.9–1.45mm

$11.80 USD

30-Day Free Returns

Free Worldwide Shipping

SIZE: 0.9*10*D3*38

0.9*10*D3*38
0.91*10*D3*38
0.92*10*D3*38
0.93*10*D3*38
0.94*10*D3*38
0.95*10*D3*38
0.96*10*D3*38
0.97*10*D3*38
0.98*10*D3*38
0.99*10*D3*38
1*10.5*D3*50
1.05*10.5*D3*50
1.1*10.5*D3*50
1.15*10.5*D3*50
1.2*10.5*D3*50
1.25*12*D3*50
1.3*12*D3*50
1.35*12*D3*50
1.4*12*D3*50
1.45*12*D3*50
Add to WishlistCompare

american expressmasterpaypalvisaapple paygoogle payshopify pay
Order in the next [totalHours] hours %M minutes to get it between and
SKU:
Description

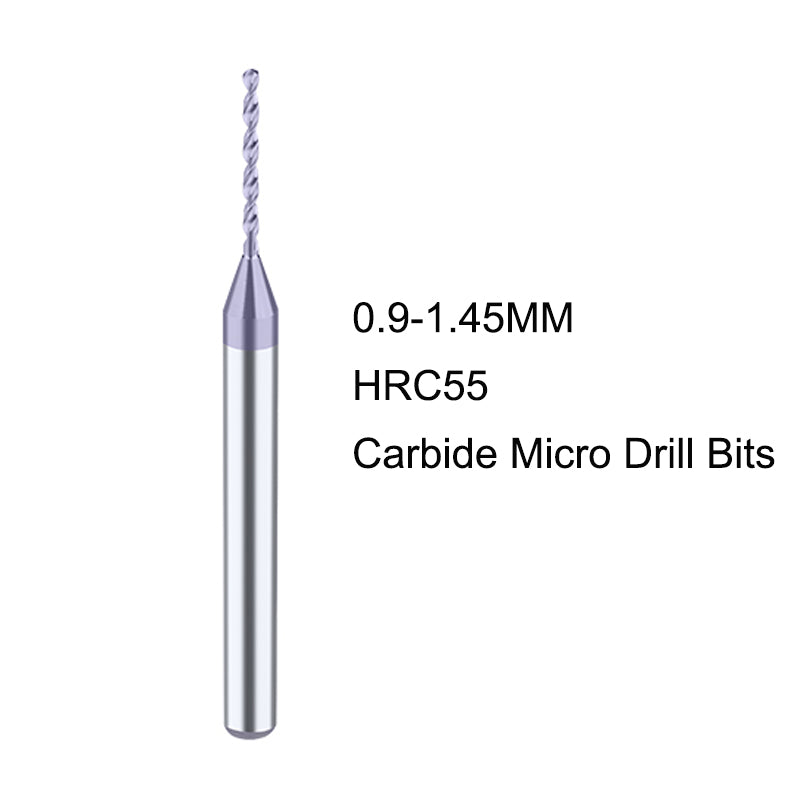

BEYOND Micro Diameter Solid Carbide Drill Bits (0.9–1.45mm) – HRC55 Nano Coating

Brand: BEYOND
Hardness: HRC55
Shank Diameter: 3mm (Fixed)
Coating: Nano Coating
Application: Precision Drilling
Suitable Materials: Stainless Steel, Mold Steel, Alloy Steel, Cast Iron, Spring Steel, Pre-hardened Steel
Machine Compatibility: Not suitable for hand drills or drill presses.

Product Features

  • Micro diameter design from 0.9mm to 1.45mm for high-precision hole machining.
  • Manufactured from premium tungsten carbide with HRC55 hardness for superior wear resistance.
  • Advanced nano coating enhances tool life, chip evacuation, and thermal stability.
  • 3mm fixed shank ensures excellent rigidity, consistent clamping, and vibration control.
  • Ideal for drilling stainless steel, alloy steel, mold steel, spring steel, and cast iron.
  • Optimized for CNC machining centers, engraving machines, and micro-drilling applications.

Size Specifications (0.9–1.45mm)

Diameter (mm) Flute Length (mm) Shank Diameter (mm) Total Length (mm)
0.90 10 3 38
0.91 10 3 38
0.92 10 3 38
0.93 10 3 38
0.94 10 3 38
0.95 10 3 38
0.96 10 3 38
0.97 10 3 38
0.98 10 3 38
0.99 10 3 38
1.00 10.5 3 50
1.05 10.5 3 50
1.10 10.5 3 50
1.15 10.5 3 50
1.20 10.5 3 50
1.25 12 3 50
1.30 12 3 50
1.35 12 3 50
1.40 12 3 50
1.45 12 3 50

Recommended Usage

  • Use only with high-precision CNC machining centers or micro-drilling machines.
  • Ensure stable clamping and minimal vibration for precise hole quality.
  • Not suitable for handheld drilling tools or low-rigidity equipment.
