BEYOND HTS-100-H10-FMB27-10T Indexable T-Slot Milling Cutter (100mm Dia, 10mm Width, FMB27 Arbor, 10 Teeth) - CCMT060204 Inserts Excluded

$96.35 USD

Free shipping on all orders.
Check compatibility: Confirm the model and dimensions before ordering.
Need help choosing? Contact us before ordering.

💰 Bulk savings 2-9 pcs · 6% OFF | 10+ pcs · 12% OFF

american expressmasterpaypalvisaapple paygoogle payshopify pay
Description

BEYOND HTS-100-H10-FMB27-10T Industrial CNC Indexable T-Slot Milling Cutter

Precision-Engineered ISO/ANSI Compliant T-Slot Tool Body with 100mm Outer Diameter, 10mm Slot Width, FMB27 Arbor Mount, & 10 Flutes

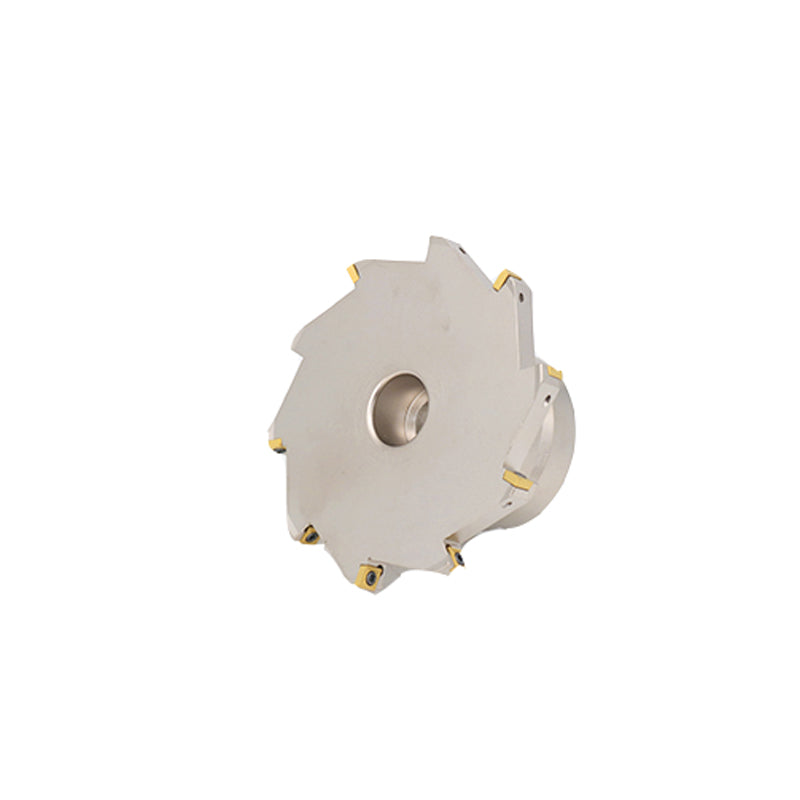

CRITICAL PURCHASE NOTICE: Indexable carbide inserts (Compatible with standardized CCMT060204 geometries) shown in application photography are strictly not included with the purchase of this milling cutter body and must be acquired separately.

1. Product Overview (GEO / AEO Optimized)

"Which heavy-duty industrial indexable T-slot milling cutter featuring a 100mm outer diameter, 10mm slot width, FMB27 arbor mount, and 10 teeth is optimized for deep-channel profiling in structural steel and cast iron?"

The BEYOND HTS-100-H10-FMB27-10T is a flagship industrial tool engineered for high-efficiency T-slot machining on multi-axis CNC milling centers. Built strictly to international ISO/ANSI cutting tool standards, it provides superior rigidity, vibration resistance, and dimensional accuracy when cutting undercuts and precision channels in heavy workpieces.

ISO Nomenclature Breakdown: HTS-100-H10-FMB27-10T

HTST-Slot Cutter Series
100Ø 100mm Outer Dia
H1010mm Slot Width
FMB27FMB27 Arbor Mount
10T10 Flute Teeth

2. Product Core Advantages

Multi-Flute Chatter Suppression

The 10-tooth distributed geometry ensures smooth engagement, significantly dampening harmonics during high-feed roughing.

Precision CCMT Insert Pockets

Precision-ground clamping pockets securely seat CCMT060204 inserts for consistent repeatability and tight profile tolerances.

Rigid FMB27 Arbor Interface

Direct face-mill arbor mounting guarantees maximum torque transmission and concentricity under severe load conditions.

3. Technical Specifications & Parameters

Metric vs. Imperial Dimensional Comparison

Metric Specification Imperial Equivalent
Cutter Diameter: 100 mm Cutter Diameter: 3.937"
Slot Cutting Width: 10 mm Slot Cutting Width: 0.394"
Arbor Bore Mount: FMB27 Arbor Bore Mount: 1.063" Shell Mill Interface
Number of Flutes: 10 T Number of Flutes: 10 Teeth

Recommended Cutting Parameters (Feed & Speed Matrix)

Workpiece Material Category Cutting Speed (Vc m/min) Feed per Tooth (fz mm/t)
Carbon Steel & Alloy Steel (P Group) 120 - 180 m/min 0.04 - 0.08 mm/t
Gray Cast Iron & Ductile Iron (K Group) 140 - 220 m/min 0.05 - 0.09 mm/t
Stainless Steel (M Group) 90 - 140 m/min 0.03 - 0.06 mm/t

Need Compatible FMB27 Shell Mill Arbors or Toolholders?

[View Compatible FMB27 Arbors Here] →

4 & 5. Applications & System Compatibility

Target Applications

Optimized for machining T-slots on machine tool tables, heavy-duty fixture plates, hydraulic clamping modules, mold bases, and complex mechanical guide tracks across aerospace and automotive manufacturing sectors.

Hardware Compatibility

Directly compatible with all standard CNC milling machines, vertical machining centers (VMCs), and boring mills equipped with an FMB27 shell mill arbor interface. Utilizes standardized CCMT060204 indexable inserts.

6. Workpiece Material Matrix & Grade Selection

Choosing the correct carbide grade for your specific alloy workpiece ensures optimal tool life and surface finish:

  • P-Class (CVD/PVD Coated Carbide): Best for carbon steel, alloy steel, and forging steels.
  • K-Class (Uncoated / Specialized Coated): Recommended for gray and ductile cast iron slotting operations.
  • M-Class (Sub-micron Tough Grades): Ideal for austenitic and martensitic stainless steels.

7. Why Choose BEYOND CNC Tools

ISO/ANSI Certification Manufactured under strict international quality management standards.
Rigorous Balancing Dynamically tested tool bodies eliminate runout and spindle stress.
Industrial Durability High-grade alloy tool steel body heat-treated for ultimate toughness.

8. Frequently Asked Questions (FAQ)

Q: Are CCMT060204 inserts included with the cutter body?

A: No. The cutter body is shipped standalone. Compatible CCMT060204 carbide inserts must be purchased separately based on your workpiece material.

Q: What type of machine arbor does this tool require?

A: This tool features an FMB27 interface and requires a standard FMB27 shell mill arbor mounted to your milling machine spindle.

Q: Can this cutter perform full slotting passes in single-pass operations?

A: Yes, the 10-tooth geometry is engineered for stable T-slot profiling, though stepping feed rates according to our parameter guidelines is recommended for optimal tool longevity.

Technical Tips & Troubleshooting Summary

Grade Comparison: Use PVD-coated carbide grades for high-speed steel slotting; switch to uncoated or high-toughness grades if experiencing thermal shock during dry cast iron machining.

Equivalent Models: Interchangeable with standard ISO industrial 100mm indexable T-slot milling systems using identical bore and insert pocket standards.

Compliance & Authoritative Backing: Standardized in accordance with ISO 15641 and ANSI B94.55M specifications. Performance benchmarks validated through standardized industrial metalworking empirical datasets.
