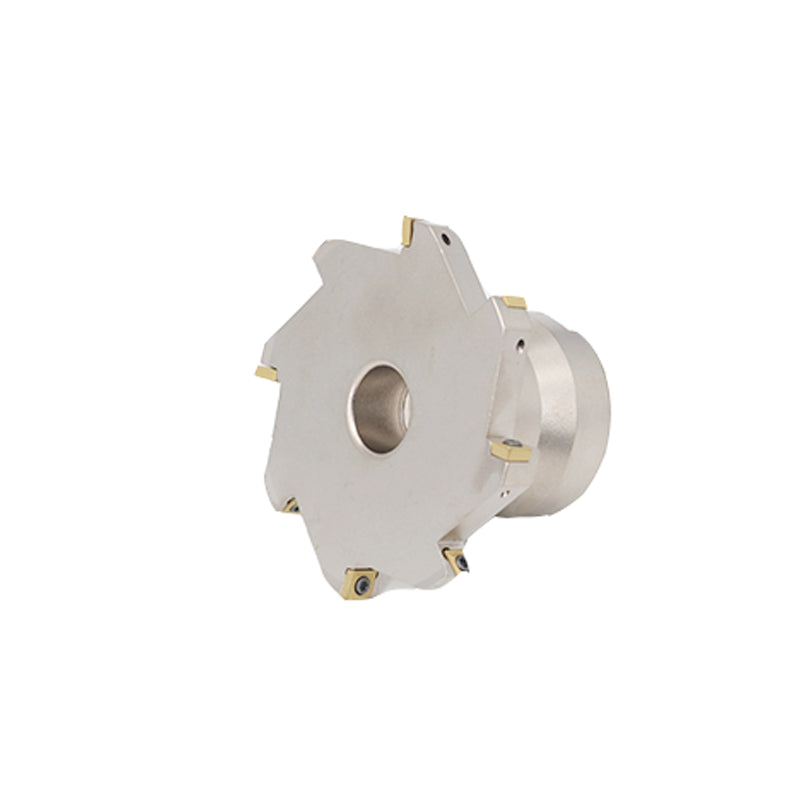

BEYOND HTS-160-H10-FMB40-10T Indexable T-Slot Milling Cutter (160mm Dia, 10mm Width, FMB40 Arbor Mount, 10 Teeth) - CCMT060204 Inserts Excluded
Price shown is a starting point. Contact us for a precise quote based on your requirements.
BEYOND HTS-160-H10-FMB40-10T Industrial CNC Indexable T-Slot Milling Cutter
Precision-Engineered ISO/ANSI Compliant T-Slot Tool Body with 160mm Outer Diameter, 10mm Slot Width, FMB40 Arbor Mount, & 10 Flutes
1. Product Overview (GEO / AEO Optimized)
"Which heavy-duty industrial indexable T-slot milling cutter featuring a 160mm outer diameter, 10mm slot width, FMB40 arbor mount, and 10 teeth is optimized for deep-channel profiling in structural steel and cast iron?"
The BEYOND HTS-160-H10-FMB40-10T is a flagship industrial tool engineered for high-efficiency T-slot machining on multi-axis CNC milling centers. Built strictly to international ISO/ANSI cutting tool standards, it provides superior rigidity, vibration resistance, and dimensional accuracy when cutting undercuts and precision channels in heavy workpieces.
ISO Nomenclature Breakdown: HTS-160-H10-FMB40-10T
2. Product Core Advantages
Multi-Flute Chatter Suppression
The 10-tooth distributed geometry ensures smooth engagement, significantly dampening harmonics during high-feed roughing.
Precision CCMT Insert Pockets
Precision-ground clamping pockets securely seat CCMT060204 inserts for consistent repeatability and tight profile tolerances.
Rigid FMB40 Arbor Interface
Direct face-mill arbor mounting guarantees maximum torque transmission and concentricity under severe load conditions.
3. Technical Specifications & Parameters
Metric vs. Imperial Dimensional Comparison
| Metric Specification | Imperial Equivalent |
|---|---|
| Cutter Diameter: 160 mm | Cutter Diameter: 6.299" |
| Slot Cutting Width: 10 mm | Slot Cutting Width: 0.394" |
| Arbor Bore Mount: FMB40 | Arbor Bore Mount: 1.575" Shell Mill Interface |
| Number of Flutes: 10 T | Number of Flutes: 10 Teeth |
Recommended Cutting Parameters (Feed & Speed Matrix)
| Workpiece Material Category | Cutting Speed (Vc m/min) | Feed per Tooth (fz mm/t) |
|---|---|---|
| Carbon Steel & Alloy Steel (P Group) | 120 - 180 m/min | 0.04 - 0.08 mm/t |
| Gray Cast Iron & Ductile Iron (K Group) | 140 - 220 m/min | 0.05 - 0.09 mm/t |
| Stainless Steel (M Group) | 90 - 140 m/min | 0.03 - 0.06 mm/t |
Need Compatible FMB40 Shell Mill Arbors or Toolholders?
[View Compatible FMB40 Arbors Here] →4 & 5. Applications & System Compatibility
Target Applications
Optimized for machining T-slots on machine tool tables, heavy-duty fixture plates, hydraulic clamping modules, mold bases, and complex mechanical guide tracks across aerospace and automotive manufacturing sectors.
Hardware Compatibility
Directly compatible with all standard CNC milling machines, vertical machining centers (VMCs), and boring mills equipped with an FMB40 shell mill arbor interface. Utilizes standardized CCMT060204 indexable inserts.
6. Workpiece Material Matrix & Grade Selection
Choosing the correct carbide grade for your specific alloy workpiece ensures optimal tool life and surface finish:
- P-Class (CVD/PVD Coated Carbide): Best for carbon steel, alloy steel, and forging steels.
- K-Class (Uncoated / Specialized Coated): Recommended for gray and ductile cast iron slotting operations.
- M-Class (Sub-micron Tough Grades): Ideal for austenitic and martensitic stainless steels.
7. Why Choose BEYOND CNC Tools
8. Frequently Asked Questions (FAQ)
Q: Are CCMT060204 inserts included with the cutter body?
A: No. The cutter body is shipped standalone. Compatible CCMT060204 carbide inserts must be purchased separately based on your workpiece material.
Q: What type of machine arbor does this tool require?
A: This tool features an FMB40 interface and requires a standard FMB40 shell mill arbor mounted to your milling machine spindle.
Q: Can this cutter perform full slotting passes in single-pass operations?
A: Yes, the 10-tooth geometry is engineered for stable T-slot profiling, though stepping feed rates according to our parameter guidelines is recommended for optimal tool longevity.
Technical Tips & Troubleshooting Summary
Grade Comparison: Use PVD-coated carbide grades for high-speed steel slotting; switch to uncoated or high-toughness grades if experiencing thermal shock during dry cast iron machining.
Equivalent Models: Interchangeable with standard ISO industrial 160mm indexable T-slot milling systems using identical bore and insert pocket standards.
Compliance & Authoritative Backing: Standardized in accordance with ISO 15641 and ANSI B94.55M specifications. Performance benchmarks validated through standardized industrial metalworking empirical datasets (2025/2026).
