Buy KGMR1212F-2-85 Grooving and Cut-Off Tool | High-Quality CNC Cutter Holder
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:

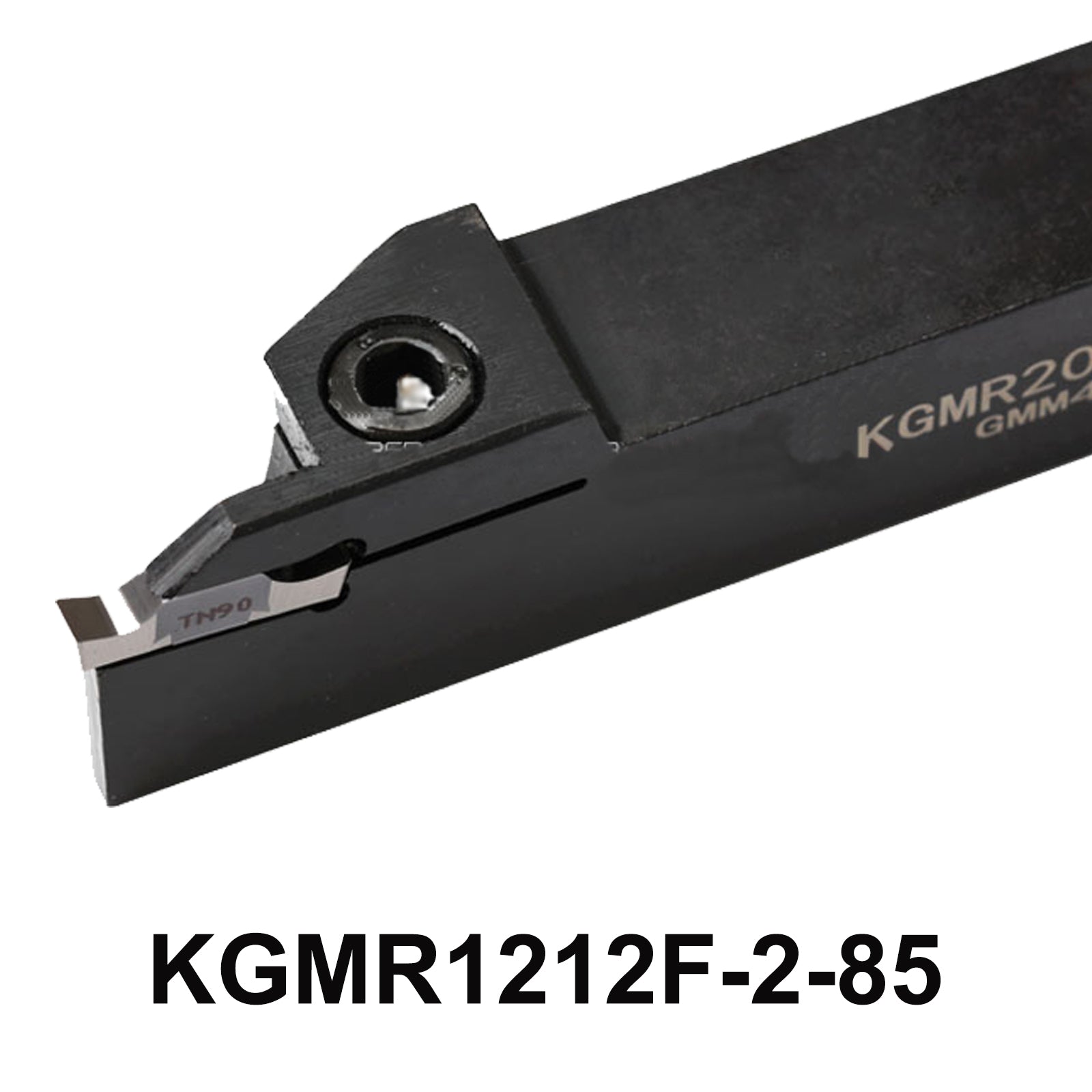

Introducing the KGMR1212F-2-85 Grooving and Cut-Off Tool, a premium solution for precision machining. With a compact lathe size of 10x10x85mm, this tool holder is engineered for durability and performance.
The package includes the tool holder, M4*12 screws and a T15 wrench, designed for compatibility with GMM2020-MT inserts.
Product parameters:
-
Tool Holder Model: KGMR1212F-2-85
-
Tool Holder Material : Carbide Steel, Carbon Steel
- Tool Holder Size : About 12 * 12 * 85 mm
- Cutting width: 2mm
- Dmax : 25mm
- Applicable blade : GMM2020-MT
-
Screw : M4*12
-
Wrench : T15
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * KGMR1212F-2-85 Grooving and Cut-Off Tool
1 * "T" Type wrench
1 * M4*12 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND KGMR1212F-2-85 Grooving and Cut-Off Tool KGMR1212F-2-85 KGMR1212 KGMR1212 F-2-85 CNC Lathe Cutter Holder Machine Metal Tool
Maximize Your Machining Efficiency with the KGMR1212F-2-85 Toolholder
Explore the Innovative Features of the KGMR1212F-2-85 Grooving Tool
5-Point Description
-
Precision Cutting: The KGMR1212F-2-85 features a cutting width of 2mm and a maximum diameter of 25mm, ensuring clean and precise grooves for your machining needs.
-
Robust Design: Crafted from high-quality materials, this tool holder is engineered for durability, capable of withstanding the demands of various machining applications.
-
Complete Tool Package: Each package includes the tool holder, M4*12 screws, and a T15 wrench, providing everything needed for quick and easy setup.
-
Versatile Insert Compatibility: Specifically designed to work with GMM2020-MT inserts, enhancing its versatility for different machining tasks.
-
Compact and User-Friendly: With dimensions of 12*12*85mm, this tool is easy to handle and maneuver, improving your overall machining efficiency.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
