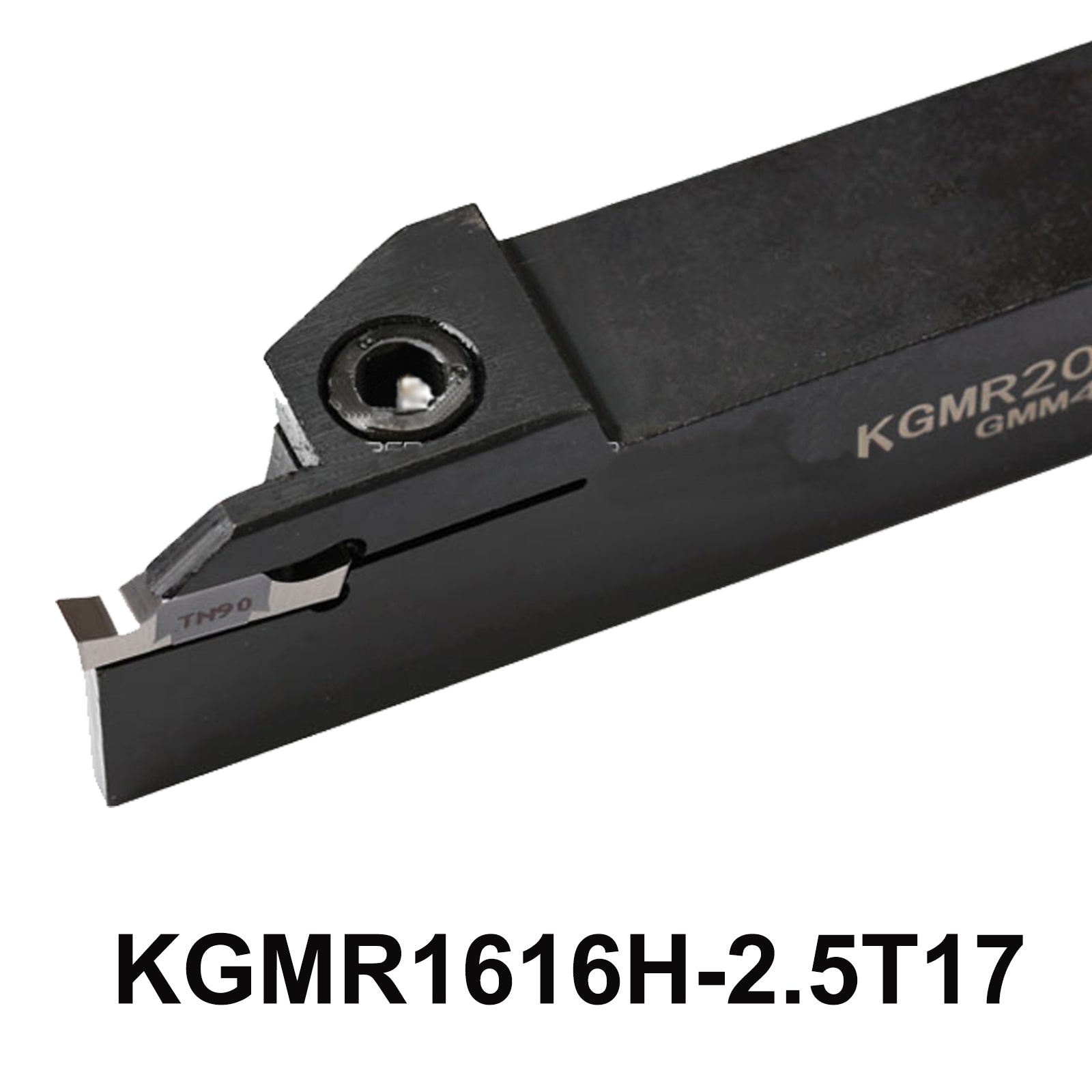

Buy KGMR1616H-2.5T17 Grooving Turning Tool Holder | High Precision CNC Tool
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
Introducing the KGMR1616H-2.5T17 Grooving Turning Tool Holder, a premium solution for precision machining. With a compact lathe size of 16x16x100mm, this tool holder is engineered for durability and performance.
The package includes the tool holder, M5*16 screws and a L4 wrench, designed for compatibility with GMM2520-MT inserts.
Product parameters:
-
Tool Holder Model: KGMR1616H-2.5T17
-
Tool Holder Material : Carbide Steel, Carbon Steel
- Tool Holder Size : About 16 * 16 * 100 mm
- Cutting width: 2.5mm
- Dmax : 36mm
- Applicable blade : GMM2520-MT
-
Screw : M5*16
-
Wrench : L4
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * KGMR1616H-2.5T17 Grooving Turning Tool Holder
1 * "L" Type wrench
1 * M5*16 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND KGMR1616H-2.5T17 Grooving Turning Tool Holder KGMR1616H-2.5T17 KGMR1616 KGMR1616 H-2.5T17 CNC Lathe Cutter Holder Machine Metal Tool
-
Achieve Superior Cutting Performance with the KGMR1616H-2.5T17 Tool Holder
-
Key Features of the KGMR1616H-2.5T17 Grooving Turning Tool Holder
5-Point Description
-
Compact Dimensions: The KGMR1616H-2.5T17 tool holder measures 16mm x 16mm x 100mm, providing a compact solution that fits perfectly in various machining setups without sacrificing performance.
-
Precision Cutting: With a cutting width of 2.5mm and a maximum depth of 36mm, this tool holder is designed for precise grooving and turning, ensuring high-quality results on every job.
-
Complete Package: Each tool holder comes with M5*16 screws and an L4 wrench, making it easy to install and get to work right away without needing additional components.
-
Versatile Compatibility: This tool holder is compatible with GMM2520-MT inserts, offering flexibility for a wide range of machining applications and ensuring you have the right tool for the job.
-
Durable Construction: Made from high-quality materials, the KGMR1616H-2.5T17 is built to withstand the rigors of CNC machining, ensuring long-lasting durability and reliability.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
