Purchase KTGFL1010H16 CNC Lathe Grooving Tool Holder | CNC Grooving Precision
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:

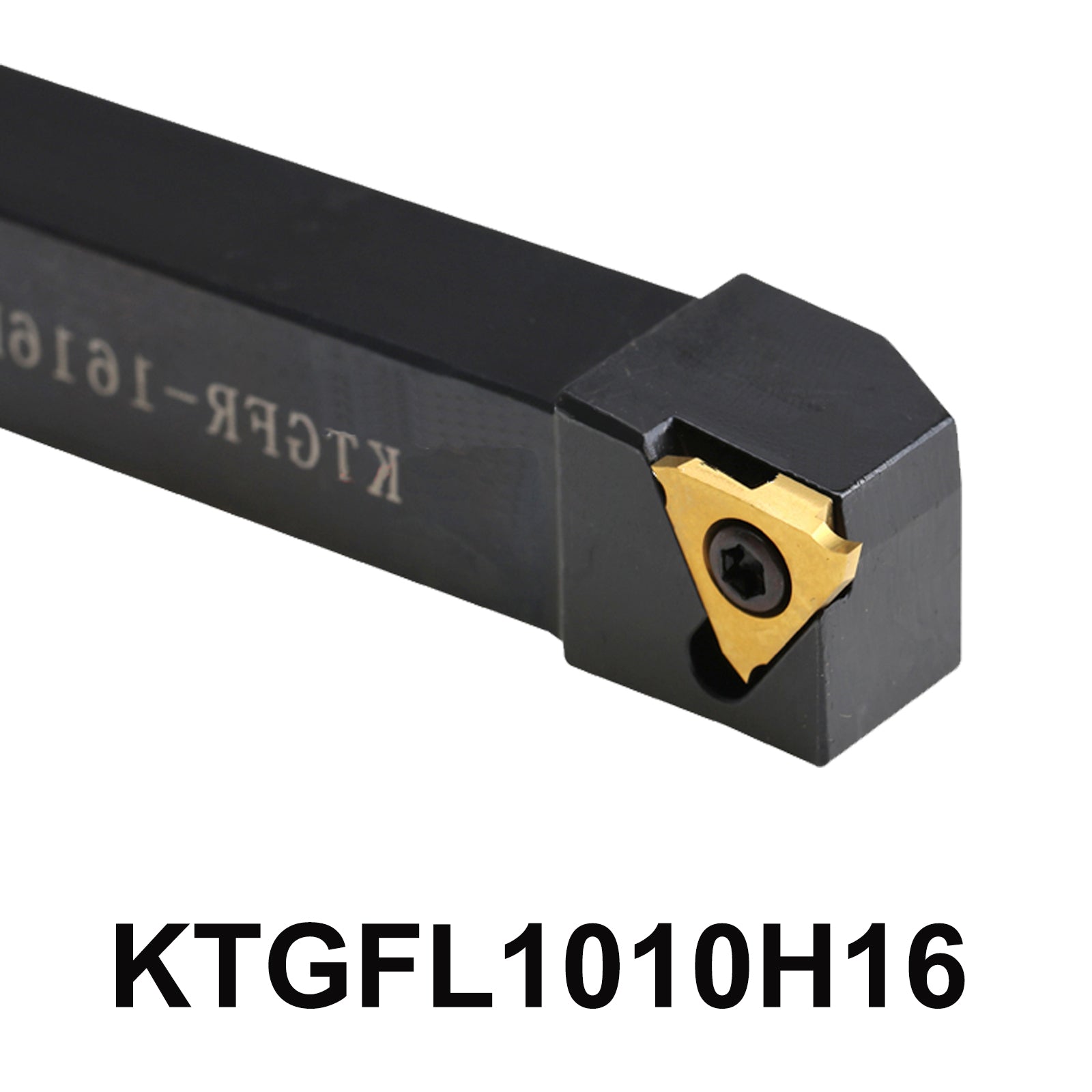

The KTGFL1010H16 CNC Lathe Grooving Tool Holder combines compact design with superior cutting capabilities, making it an ideal choice for precision machining tasks.
With a compact size of 10mm x 10mm x 100mm, this tool is perfect for detailed grooving tasks. Its robust construction allows for a maximum cutting depth of 0.75-3.0mm,compatible with TGF32L inserts,making it versatile for various applications
Product parameters:
-
Tool Holder Model: KTGFL1010H16
-
Tool Holder Material : Carbide Steel, Carbon Steel
-
Tool Holder Size : About 10 * 10 * 100 mm
- Cutting width : About 0.75-3.0 mm
-
Applicable blade : TGF32L
-
Screw : M3.5*10
-
Wrench : T15
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * KTGFL1010H16 CNC Lathe Grooving Tool Holder
1 * "T" Type wrench
1 * M3.5*10 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND KTGFL1010H16 External Grooving Turning Tools KTGFL1010H16 KTGFL1010 KTGFL1010 H16 CNC Lathe Grooving Tool Holder
Transform Your Grooving Process with the KTGFL1010H16 Tool Holder
Key Features & Advantages of the KTGFL1010H16 External Tool Holder
5-Point Description
- Durable Construction: Crafted from high-grade materials, the KTGFL1010H16 is built to withstand rigorous machining environments, ensuring longevity and reliability.
- Versatile Cutting Width: With a cutting width range of 0.75-3.0mm, this tool holder adapts to various grooving needs, providing flexibility for different applications.
- Complete Package: Each package includes the tool holder, M3.5*10 screws, and a T15 wrench, so you have everything you need to get started right away.
- Compatible Inserts: Designed for use with TGF32L inserts, this tool holder maximizes cutting efficiency and precision, allowing for clean, accurate grooves.
- Optimal Size: Measuring 10*10*100mm, this tool holder is perfectly sized to integrate into your CNC setup, enhancing your overall machining workflow.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
