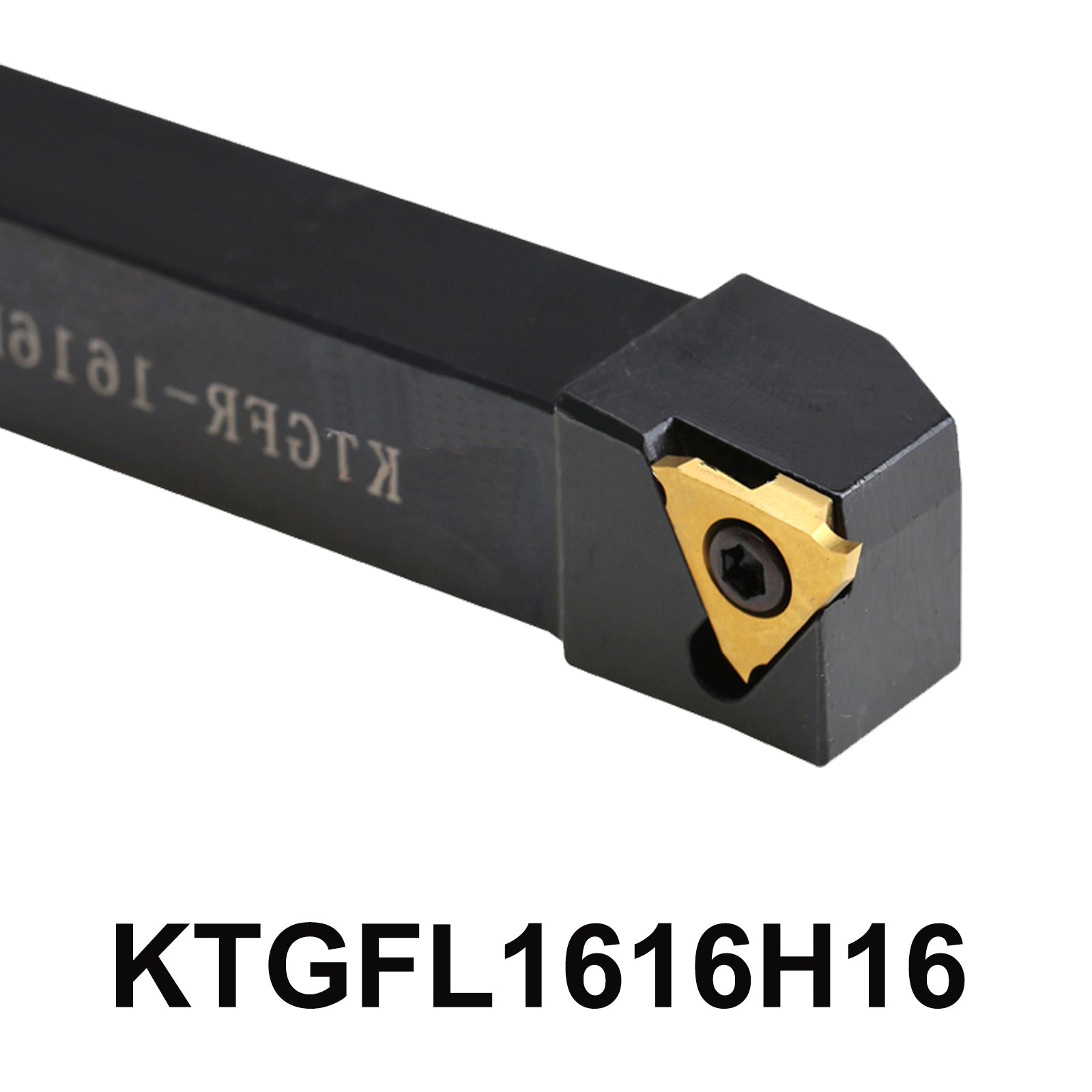

Buy KTGFL1616H16 Lathe Face Grooving Tool | Precision CNC Cutting Tool
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
The KTGFL1616H16 Lathe Face Grooving Tool combines compact design with superior cutting capabilities, making it an ideal choice for precision machining tasks.
With a compact size of 16mm x 16mm x 100mm, this tool is perfect for detailed grooving tasks. Its robust construction allows for a maximum cutting depth of 0.75-3.0mm,compatible with TGF32L inserts,making it versatile for various applications
Product parameters:
-
Tool Holder Model: KTGFL1616H16
-
Tool Holder Material : Carbide Steel, Carbon Steel
-
Tool Holder Size : About 16 * 16 * 100 mm
- Cutting width : About 0.75-3.0 mm
-
Applicable blade : TGF32L
-
Screw : M3.5*10
-
Wrench : T15
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * KTGFL1616H16 Lathe Face Grooving Tool
1 * "T" Type wrench
1 * M3.5*10 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND KTGFL1616H16 External Grooving Turning Tools KTGFL1616H16 KTGFL1616 KTGFL1616 H16 Lathe Face Grooving Tool
Maximize Your Machining Efficiency with the KTGFL1616H16 Tool Holder
Essential Features of the KTGFL1616H16 Lathe Face Grooving Tool
5-Point Description
- Robust Construction: Made from high-quality materials, the KTGFL1616H16 Lathe Face Grooving Tool is built to endure the demands of CNC machining, ensuring long-lasting reliability.
- Versatile Cutting Width: Capable of a cutting width range from 0.75 to 3.0mm, this tool holder provides flexibility to meet diverse grooving requirements.
- Complete Package Included: Each purchase comes with the tool holder, M3.5*10 screws, and a T15 wrench, allowing for easy setup and immediate use.
- Compatible Inserts: Designed to work with TGF32L inserts, maximizing cutting performance and ensuring precision in every groove.
- Compact and Efficient Size: Measuring 16*16*100mm, this tool holder fits seamlessly into your CNC setup, optimizing workflow and productivity.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
