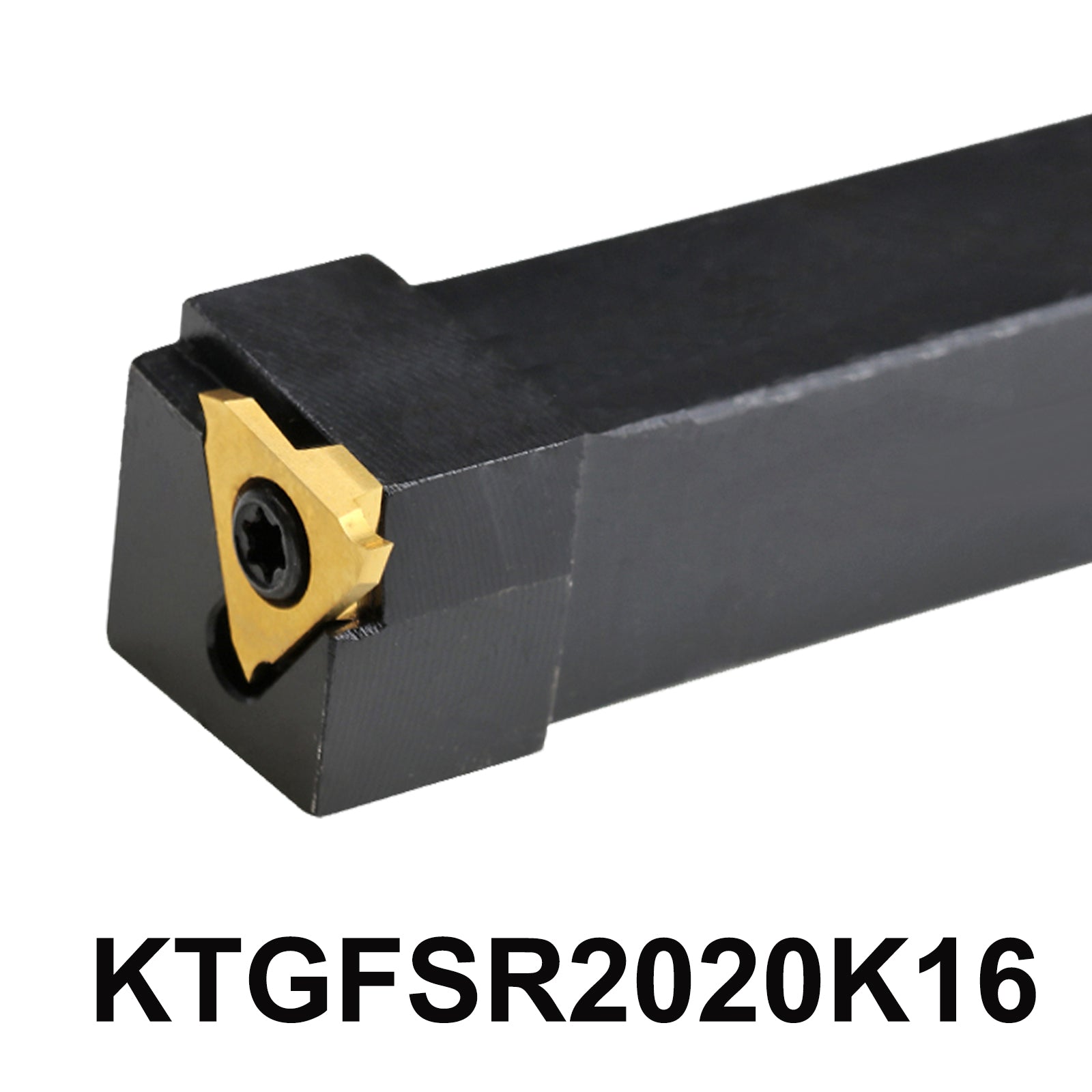

Shop KTGFSR2020K16 External Grooving Toolholder – High-Quality CNC Machining Tool
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
KTGFSR2020K16 External Grooving Toolholder, engineered for optimal performance in CNC machining applications. With a robust size of 20x20x125mm and a cutting width of 0.75-3.0mm
Compatible with TGF32R inserts, is perfect for professionals seeking reliable and high-quality tooling solutions.
Product parameters:
-
Tool Holder Model: KTGFSR2020K16
-
Tool Holder Material : Carbide Steel, Carbon Steel
- Tool Holder Size : About 20 * 20 * 125 mm
- Cutting width : About 0.75-3.0 mm
-
Applicable blade : TGF32R
-
Screw : M3.5*10
-
Wrench : T15

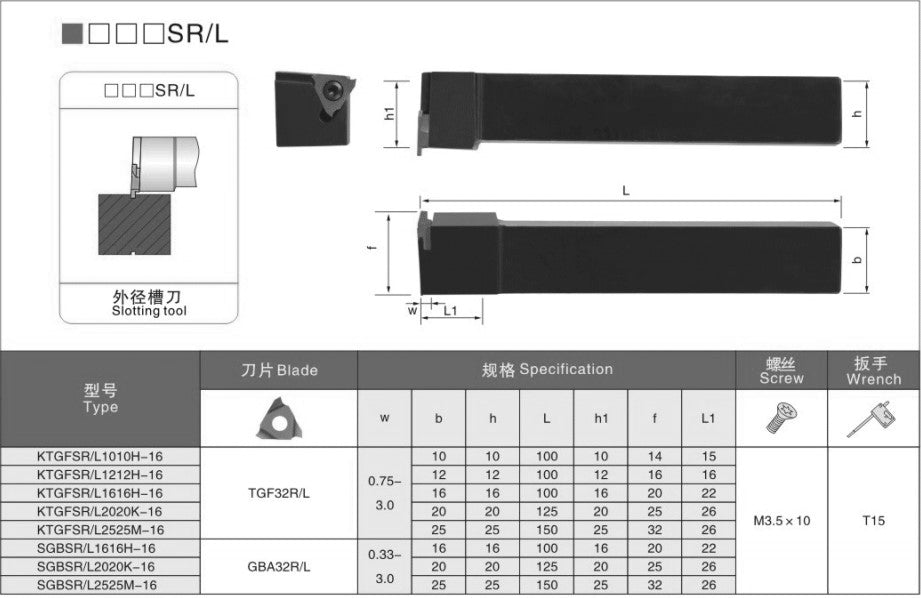

- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * KTGFSR1616H16 External Grooving Toolholder
1 * "T" Type wrench
1 * M3.5*10 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND KTGFSR2020K16 External Grooving Toolholder KTGFSR2020K16 KTGFSR2020 KTGFSR 2020 K16 CNC Lathe Cutter Holder Machine Metal Tool
Unlock Enhanced Grooving Performance with the KTGFSR2020K16 Toolholder
Explore the Key Features of the KTGFSR2020K16 External Grooving Tool
5-Point Description
-
Compact and Efficient Size: The KTGFSR2020K16 External Grooving Toolholder boasts dimensions of 20mm x 20mm x 125mm, making it suitable for a variety of CNC lathe setups while maximizing workspace efficiency.
-
Versatile Cutting Width: With an adjustable cutting width ranging from 0.75mm to 3.0mm, this toolholder provides flexibility to tackle various grooving tasks, ensuring precision in every cut.
-
Complete Accessory Kit Included: Each purchase comes with essential components, including M3.5*10 screws and a T15 wrench, facilitating easy installation and immediate use.
-
Compatibility with TGF32R Inserts: Designed to work seamlessly with TGF32R inserts, this toolholder enhances cutting performance and extends the tool's lifespan for a range of materials.
-
Durable Construction: Made from high-quality materials, the KTGFSR2020K16 promises durability and reliability, making it an invaluable asset for both professional machinists and enthusiasts.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
