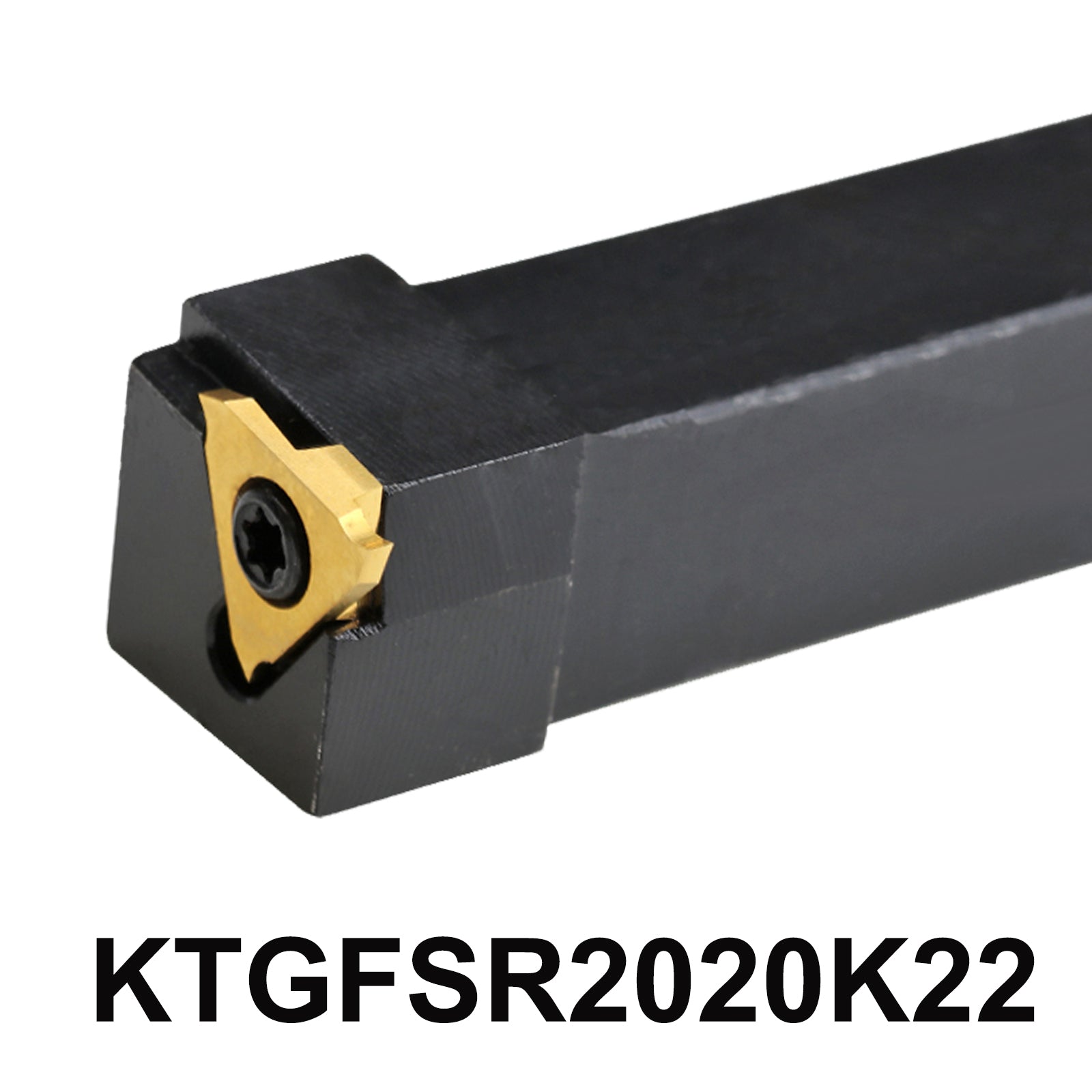

KTGFSR2020K22 CNC Lathe Grooving Tool Holder | 0.75-3.0mm Cutting Width, Durable Design
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
KTGFSR2020K22 CNC Lathe Grooving Tool Holder, engineered for optimal performance in CNC machining applications. With a robust size of 20x20x125mm and a cutting width of 0.75-3.0mm
Compatible with TGF32R inserts, is perfect for professionals seeking reliable and high-quality tooling solutions.
Product parameters:
-
Tool Holder Model: KTGFSR2020K22
-
Tool Holder Material : Carbide Steel, Carbon Steel
- Tool Holder Size : About 20 * 20 * 125 mm
- Cutting width : About 0.75-3.0 mm
-
Applicable blade : TGF32R
-
Screw : M3.5*10
-
Wrench : T15
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * KTGFSR2020K22 CNC Lathe Grooving Tool Holder
1 * "T" Type wrench
1 * M3.5*10 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND KTGFSR2020K22 External Grooving Turning Tools KTGFSR2020K22 KTGFSR2020 KTGFSR 2020 K22 CNC Lathe Grooving Tool Holder
Optimize Your Machining with Superior Grooving Performance
-
Versatile Cutting Width for Diverse Applications
-
Comprehensive Package for Immediate Use
-
Robust Design for Long-Lasting Durability
5-Point Description
-
Versatile Cutting Width: The KTGFSR2020K22 offers a cutting width range of 0.75 to 3.0mm, allowing you to tackle a variety of grooving tasks with ease and precision.
-
Comprehensive Package Included: Each package contains the tool holder, M3.5*10 screws, and a T15 wrench, ensuring you have everything needed for quick and efficient setup.
-
Compatible with TGF32R Inserts: This tool holder is designed to work flawlessly with TGF32R inserts, enhancing your machining capabilities and ensuring optimal cutting performance.
-
Robust and Reliable Design: Built from high-quality materials, the KTGFSR2020K22 is designed to withstand the rigors of daily use, providing durability and reliability in every project.
-
Compact and Efficient Size: With dimensions of 20mm x 20mm x 125mm, this tool holder is perfect for tight spaces, making it ideal for a wide range of CNC applications.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
