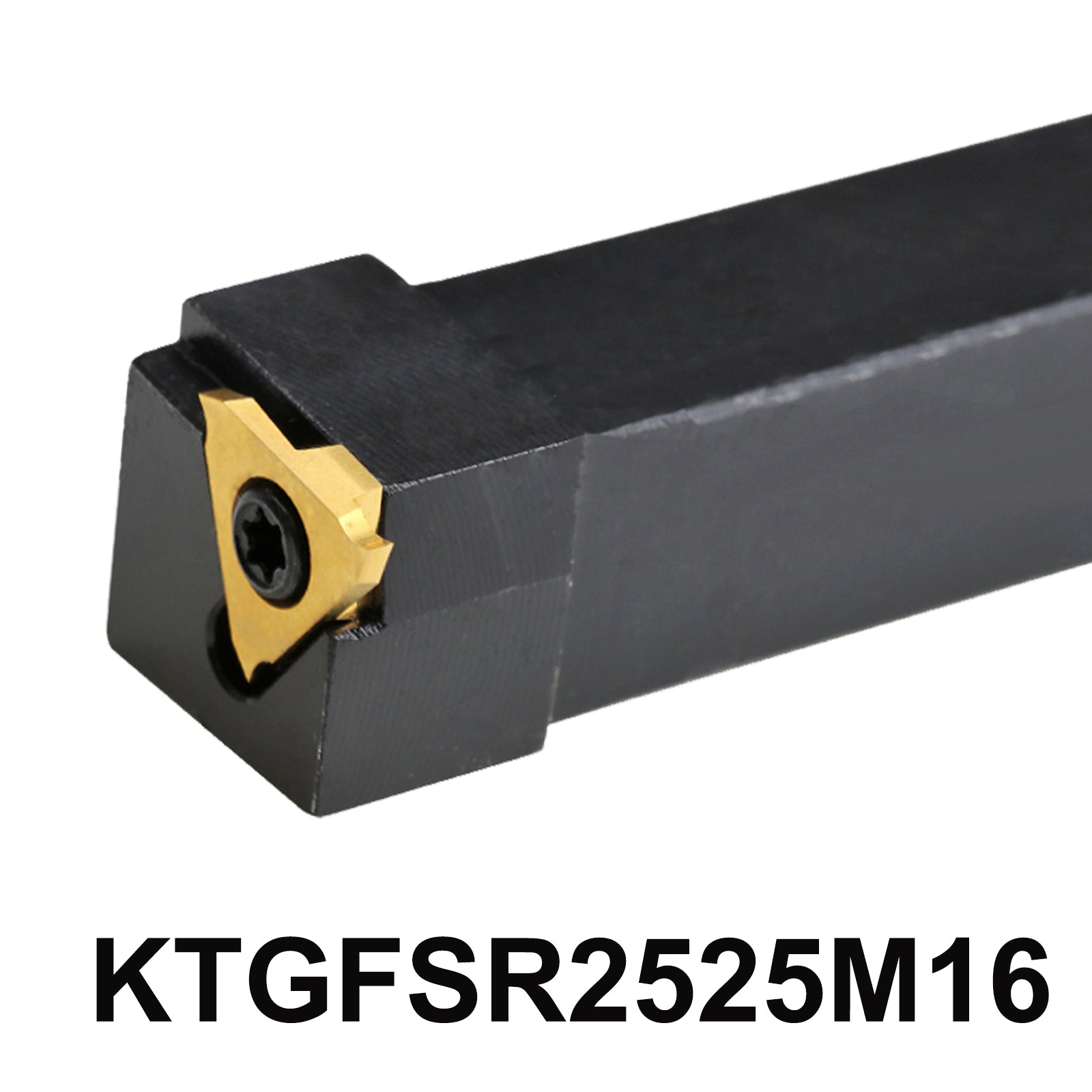

Purchase KTGFSR2525M16 Grooving Turning Tool Holder - High-Quality CNC Tool
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
KTGFSR2525M16 Grooving Turning Tool Holder, engineered for optimal performance in CNC machining applications. With a robust size of 25x25x150mm and a cutting width of 0.75-3.0mm
Compatible with TGF32R inserts, is perfect for professionals seeking reliable and high-quality tooling solutions.
Product parameters:
-
Tool Holder Model: KTGFSR2525M16
-
Tool Holder Material : Carbide Steel, Carbon Steel
- Tool Holder Size : About 25 * 25 * 150 mm
- Cutting width : About 0.75-3.0 mm
-
Applicable blade : TGF32R
-
Screw : M3.5*10
-
Wrench : T15
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * KTGFSR2525M16 Grooving Turning Tool Holder
1 * "T" Type wrench
1 * M3.5*10 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND KTGFSR2525M16 EGrooving Turning Tool Holder KTGFSR2525M16 KTGFSL2525 KTGFSL 2525 M16 CNC Lathe Cutter Holder Machine Metal Tool
Enhance Your CNC Operations with the KTGFSR2525M16 Tool Holder
-
Compact Design: Optimized for Efficient Grooving
-
Comprehensive Kit: Includes Screws and Wrench for Convenience
-
Versatile Insert Compatibility: Works with TGF32R Inserts
5-Point Description
-
Precision Grooving: The KTGFSR2525M16 features a cutting width that ranges from 0.75mm to 3.0mm, allowing for fine adjustments to meet your specific machining needs.
-
Robust Dimensions: With a size of 25mm x 25mm x 150mm, this tool holder is engineered for stability and precision, making it a reliable choice for any lathe operation.
-
All-Inclusive Package: This product comes complete with M3.5*10 screws and a T15 wrench, ensuring easy setup and immediate usability right out of the box.
-
Insert Versatility: Compatible with TGF32R inserts, this tool holder allows for a range of cutting techniques, increasing its adaptability for various machining tasks.
-
High-Quality Performance: As a brand new CNC lathe cutter holder, the KTGFSR2525M16 guarantees high performance and durability, making it an essential addition to any machining workshop.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
