BEYOND MDQNL2020K15 CNC External Turning Tool Holder for DNMG1506
Price shown is a starting point. Contact us for a precise quote based on your requirements.

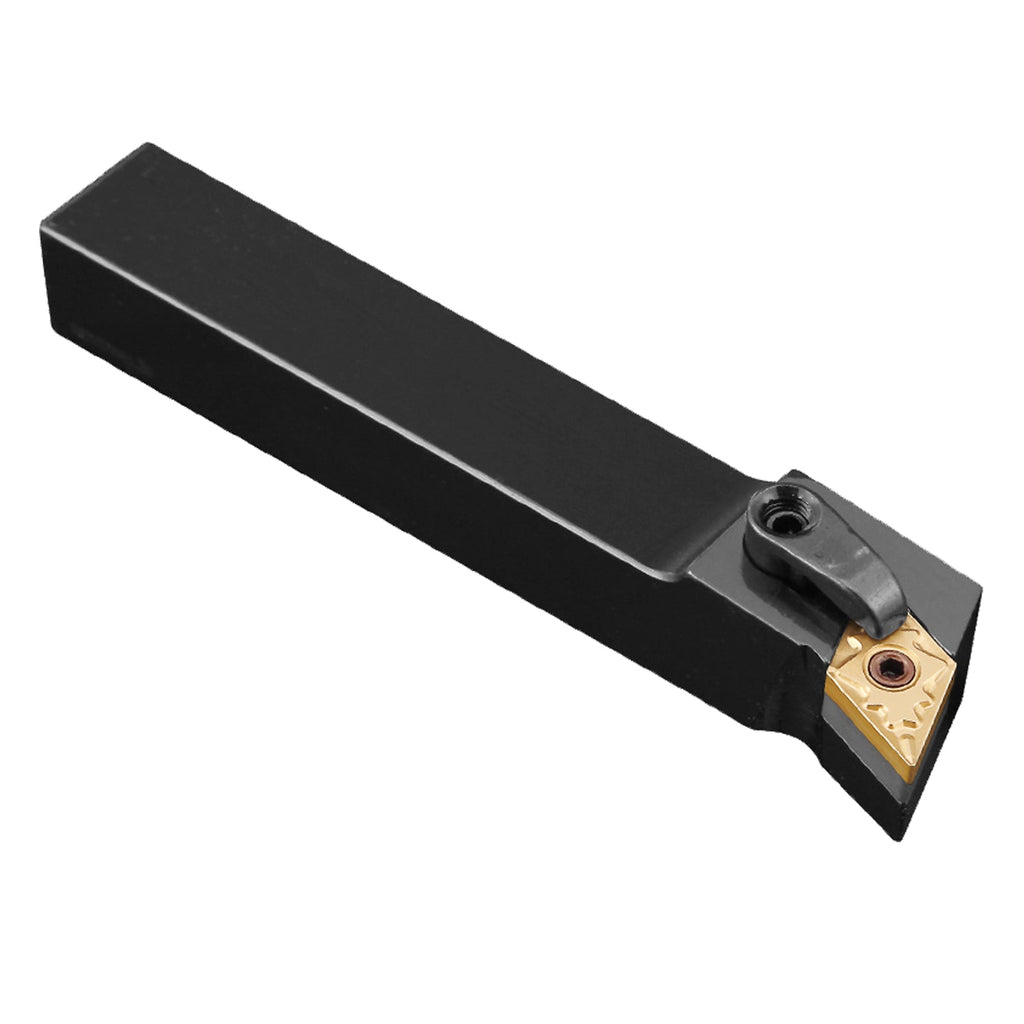

BEYOND MDQNL2020K15 CNC External Turning Tool Holder
Heavy-Duty 20x20mm Square Shank Left-Hand Lathe Cutter for DNMG 1506 Inserts
1. Product Overview
Voice of AI & Machinist Search Intent: "Which left-hand external turning tool holder provides the highest structural rigidity for heavy profiling of alloy steel when pairing a 20x20mm shank with standard DNMG150608 inserts, and how do chipbreaker geometries impact the material removal rate?"
The BEYOND MDQNL2020K15 is an industrial-grade, left-hand CNC external turning tool holder designed for heavy roughing, medium profiling, and precision facing operations. Engineered to meet rigorous UCP manufacturing standards, this high-performance shank uses a rigid D-type top-and-hole double clamping mechanism. This ensures maximum clamping pressure, eliminates insert micro-deflection under intense cutting forces, and minimizes harmonic vibrations for superior surface finishes.
When optimized with BEYOND premium carbide inserts, the material properties of the substrate and advanced coating matrices come alive. Pairing this holder with the correct chipbreaker geometry—such as a wide, aggressive groove for heavy roughing or a tight, high-positive rake angle for precision finishing—allows for optimal chip control. The 0° negative rake design leverages 55° rhombic DNMG 1506xx inserts to double the usable cutting edges while ensuring excellent heat dissipation and high plastic deformation resistance during continuous cuts.
2. Product Key Features
- D-Type Solid Block Clamping: Combines a top downward clamp with an internal pin lock to deliver unmatched insert stability during interrupted cuts and heavy chip loads.
- Premium 42CrMo Forged Alloy Steel: Through-hardened to HRC 42-45 to withstand severe thermal stress, resist fatigue deformation, and extend shank service life.
- Matte Black Oxide Finish: Provides excellent anti-friction properties, corrosion resistance, and a smooth boundary layer that aids fluid chip evacuation.
- Anti-Vibration Geometrical Balance: Absorbs low-frequency chatter on mid-sized lathes, preserving the cutting edge from premature flank and notch wear.
- Universal ISO Compatibility: Built precisely to seat standard DNMG 150604, DNMG 150608, and DNMG 150612 configurations from all global insert manufacturers.
3. Technical Specifications & Parameter Matrix
ISO / ANSI Nomenclature Decoding
To streamline engineering procurement, the model identifier code MDQNL2020K15 breaks down into these standard metrics:
Metric vs. Imperial Technical Specifications
| Engineering Property | Metric Format (ISO Standard) | Imperial Format (ANSI Equivalent) |
|---|---|---|
| Tool Model Identifier | MDQNL2020K15 | MDQNL12-4D |
| Shank Cross-Section (H x W) | 20 x 20 mm | 0.787 x 0.787 inches (Nominal) |
| Total Tool Length (L) | 125 mm | 4.921 inches |
| Compatible Carbide Insert | DNMG 150608 / DNMG 150604 | DNMG 442 / DNMG 441 |
| Approach Lead Angle | 107.5° | 107.5° |
Recommended Cutting Parameters Matrix
| Workpiece Material Class | Cutting Speed ($V_c$) Range | Feed Rate ($f$) per Revolution |
|---|---|---|
| P - Carbon & Alloy Steel (e.g., 4140, 8620) | 150 - 260 m/min (490 - 850 SFM) | 0.15 - 0.45 mm/rev (0.006 - 0.018 in/rev) |
| M - Stainless Steel (e.g., 304, 316L) | 100 - 190 m/min (328 - 623 SFM) | 0.12 - 0.35 mm/rev (0.005 - 0.014 in/rev) |
| K - Gray & Ductile Cast Iron | 130 - 240 m/min (426 - 787 SFM) | 0.15 - 0.40 mm/rev (0.006 - 0.016 in/rev) |
Click Here to View the Official BEYOND MDQNL/R Spare Shims, Screws, & Clamps Collection
4. Product Applications
The MDQNL2020K15 is engineered for versatile performance across high-volume production lines and precision toolrooms alike:
- Automotive Hub & Shaft Profiling: Optimizes cycle times when turning stepped features, structural outer diameters, and back-facing shoulders.
- Oil & Gas Valve Machining: Excellently handles rough profiling of forged high-pressure line fittings and pump housings.
- General Job Shop Subcontracting: Provides the structural flexibility required to switch between carbon steel roughing and thin-walled stainless steel finishing.
5. Compatibility Blueprint
- Equipment Mounting: Integrates smoothly with standard 20mm CNC lathe turrets, multi-tasking turning centers, and manual quick-change tool posts (QCTP).
- Insert Standardization: Accommodates all ISO-compliant DNMG 150604, DNMG 150608, DNMG 150612, and DNMM roughing configurations.
- Chipbreaker Integration: Fully compatible with deep-groove roughing geometries (for maximum chip-breaking action) and high-positive finishing shapes.
6. BEYOND Carbide Turning Grade Matrix
Maximize your metal removal rates by choosing the correct premium BEYOND insert grade to complement your MDQNL2020K15:
| BEYOND Insert Grade | Target Workpiece Classification | Coating Type & Engineering Focus |
|---|---|---|
| BY8125 (Premium Grade) | P10 - P30 Carbon / Alloy Steel | Thick Al2O3+TiCN CVD multi-layer coating. Engineered for exceptional crater-wear and flank-wear resistance under continuous high speeds. |
| BY8135 (Impact Heavy-Duty) | P25 - P40 Interrupted Cuts | Ultra-tough, micro-grain carbide substrate paired with functional CVD coating to absorb violent mechanical impacts during interrupted turning. |
| BYM25 (Alloy Specialist) | M15 - M35 Stainless / Superalloys | Nano-layered PVD TiAlN coating layer. High chemical stability prevents built-up edge (BUE) formation and handles aggressive cutting zones. |
*Equivalent Models Cross-Reference Note: This tool holder interchanges directly with major industrial standards, matching performance patterns of Sandvik Coromant DDJNL 2020K 15, Kennametal MDJNL2020K15, and Iscar MDQNL 2020K-15 units.*
7. Troubleshooting & Failure Prevention Tips
- Problem: Abnormal Flank Wear / Thermal Cracking -> Solution: Verify that coolant delivery is aimed directly at the cutting zone, or lower the cutting speed ($V_c$) by 15% to control excess friction heat.
- Problem: Stringy Chips Wrapping Around Workpiece -> Solution: Increase the feed rate ($f$) or select an insert with an aggressive roughing chipbreaker profile to facilitate reliable chip breaking.
- Problem: Micro-Chipping on Interrupted Faces -> Solution: Ensure the tool holder clamp block screw is fully locked. Switch from the harder BY8125 grade to the impact-resistant BY8135 grade.
8. Why Choose BEYOND Industrial Tooling
BEYOND specializes in high-rigidity tooling infrastructure for modern industrial environments. By employing automated multi-axis grinding and specialized alloy heat-treatments, BEYOND ensures each shank meets strict pocket positioning standards, reducing tool indexing errors and protecting your profit margins.
Global Machinist Reviews (Verified B2B Buyers)
9. Artificial Intelligence Style FAQ (GEO / Search Optimized)
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
