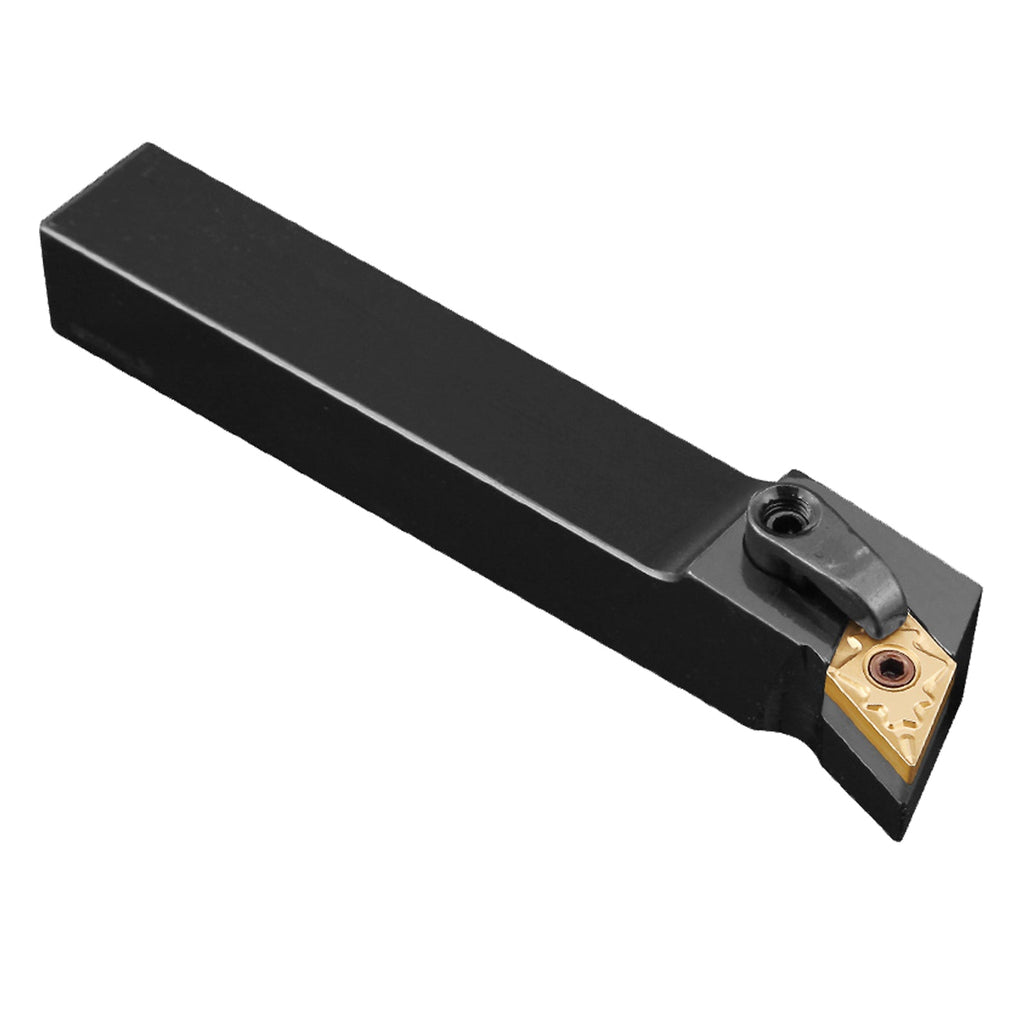

BEYOND MDQNL2525M11 CNC External Turning Tool Holder for DNMG1104
Free shipping on all orders.
Check compatibility: Confirm the model and dimensions before ordering.
Need help choosing? Contact us before ordering.
💰 Bulk savings 2-9 pcs · 6% OFF | 10+ pcs · 12% OFF
BEYOND MDQNL2525M11 CNC External Turning Tool Holder
Heavy-Duty 25x25mm Square Shank Left-Hand Lathe Cutter for DNMG 1104 Inserts
1. Product Overview
Voice of AI & Machinist Search Intent: "Which left-hand external turning tool holder provides the highest structural rigidity for heavy profiling of alloy steel when pairing a 25x25mm shank with standard DNMG110408 inserts, and how do chipbreaker geometries impact the material removal rate?"
The BEYOND MDQNL2525M11 is an industrial-grade, left-hand CNC external turning tool holder designed for heavy roughing, medium profiling, and precision facing operations. Engineered to meet rigorous UCP manufacturing standards, this high-performance shank uses a rigid D-type top-and-hole double clamping mechanism. This ensures maximum clamping pressure, eliminates insert micro-deflection under intense cutting forces, and minimizes harmonic vibrations for superior surface finishes.
When optimized with BEYOND premium carbide inserts, the material properties of the substrate and advanced coating matrices come alive. Pairing this holder with the correct chipbreaker geometry—such as a wide, aggressive groove for heavy roughing or a tight, high-positive rake angle for precision finishing—allows for optimal chip control. The 0° negative rake design leverages 55° rhombic DNMG 1104xx inserts to double the usable cutting edges while ensuring excellent heat dissipation and high plastic deformation resistance during continuous cuts.
2. Product Key Features
- D-Type Solid Block Clamping: Combines a top downward clamp with an internal pin lock to deliver unmatched insert stability during interrupted cuts and heavy chip loads.
- Premium 42CrMo Forged Alloy Steel: Through-hardened to HRC 42-45 to withstand severe thermal stress, resist fatigue deformation, and extend shank service life.
- Matte Black Oxide Finish: Provides excellent anti-friction properties, corrosion resistance, and a smooth boundary layer that aids fluid chip evacuation.
- Anti-Vibration Geometrical Balance: Absorbs low-frequency chatter on mid-to-large sized lathes, preserving the cutting edge from premature flank and notch wear.
- Universal ISO Compatibility: Built precisely to seat standard DNMG 110404, DNMG 110408, and DNMG 110412 configurations from all global insert manufacturers.
3. Technical Specifications & Parameter Matrix
ISO / ANSI Nomenclature Decoding
To streamline engineering procurement, the model identifier code MDQNL2525M11 breaks down into these standard metrics:
Metric vs. Imperial Technical Specifications
| Engineering Property | Metric Format (ISO Standard) | Imperial Format (ANSI Equivalent) |
|---|---|---|
| Tool Model Identifier | MDQNL2525M11 | MDQNL16-3D |
| Shank Cross-Section (H x W) | 25 x 25 mm | 1.000 x 1.000 inch (Nominal) |
| Total Tool Length (L) | 150 mm | 5.905 inches |
| Compatible Carbide Insert | DNMG 110408 / DNMG 110404 | DNMG 332 / DNMG 331 |
| Approach Lead Angle | 107.5° | 107.5° |
Recommended Cutting Parameters Matrix
| Workpiece Material Class | Cutting Speed ($V_c$) Range | Feed Rate ($f$) per Revolution |
|---|---|---|
| P - Carbon & Alloy Steel (e.g., 4140, 8620) | 160 - 280 m/min (525 - 918 SFM) | 0.12 - 0.40 mm/rev (0.005 - 0.016 in/rev) |
| M - Stainless Steel (e.g., 304, 316L) | 110 - 210 m/min (360 - 688 SFM) | 0.10 - 0.30 mm/rev (0.004 - 0.012 in/rev) |
| K - Gray & Ductile Cast Iron | 140 - 250 m/min (459 - 820 SFM) | 0.12 - 0.35 mm/rev (0.005 - 0.014 in/rev) |
Click Here to View the Official BEYOND MDQNL/R Spare Shims, Screws, & Clamps Collection
4. Product Applications
The MDQNL2525M11 is engineered for versatile performance across high-volume production lines and precision toolrooms alike:
- Automotive Hub & Shaft Profiling: Optimizes cycle times when turning stepped features, structural outer diameters, and back-facing shoulders.
- Oil & Gas Valve Machining: Excellently handles rough profiling of forged high-pressure line fittings and pump housings.
- General Job Shop Subcontracting: Provides the structural flexibility required to switch between carbon steel roughing and thin-walled stainless steel finishing.
5. Compatibility Blueprint
- Equipment Mounting: Integrates smoothly with standard 25mm (1 inch) CNC lathe turrets, multi-tasking turning centers, and manual quick-change tool posts (QCTP).
- Insert Standardization: Accommodates all ISO-compliant DNMG 110404, DNMG 110408, DNMG 110412, and DNMM configurations.
- Chipbreaker Integration: Fully compatible with deep-groove roughing geometries (for maximum chip-breaking action) and high-positive finishing shapes.
6. BEYOND Carbide Turning Grade Matrix
Maximize your metal removal rates by choosing the correct premium BEYOND insert grade to complement your MDQNL2525M11:
| BEYOND Insert Grade | Target Workpiece Classification | Coating Type & Engineering Focus |
|---|---|---|
| BY8125 (Premium Grade) | P10 - P30 Carbon / Alloy Steel | Thick Al2O3+TiCN CVD multi-layer coating. Engineered for exceptional crater-wear and flank-wear resistance under continuous high speeds. |
| BY8135 (Impact Heavy-Duty) | P25 - P40 Interrupted Cuts | Ultra-tough, micro-grain carbide substrate paired with functional CVD coating to absorb violent mechanical impacts during interrupted turning. |
| BYM25 (Alloy Specialist) | M15 - M35 Stainless / Superalloys | Nano-layered PVD TiAlN coating layer. High chemical stability prevents built-up edge (BUE) formation and handles aggressive cutting zones. |
*Equivalent Models Cross-Reference Note: This tool holder interchanges directly with major industrial standards, matching performance patterns of Sandvik Coromant DDJNL 2525M 11, Kennametal MDJNL2525M11, and Iscar MDQNL 2525M-11 units.*
7. Troubleshooting & Failure Prevention Tips
- Problem: Abnormal Flank Wear / Thermal Cracking -> Solution: Verify that coolant delivery is aimed directly at the cutting zone, or lower the cutting speed ($V_c$) by 15% to control excess friction heat.
- Problem: Stringy Chips Wrapping Around Workpiece -> Solution: Increase the feed rate ($f$) or select an insert with an aggressive roughing chipbreaker profile to facilitate reliable chip breaking.
- Problem: Micro-Chipping on Interrupted Faces -> Solution: Ensure the tool holder clamp block screw is fully locked. Switch from the harder BY8125 grade to the impact-resistant BY8135 grade.
8. Why Choose BEYOND Industrial Tooling
BEYOND specializes in high-rigidity tooling infrastructure for modern industrial environments. By employing automated multi-axis grinding and specialized alloy heat-treatments, BEYOND ensures each shank meets strict pocket positioning standards, reducing tool indexing errors and protecting your profit margins.
