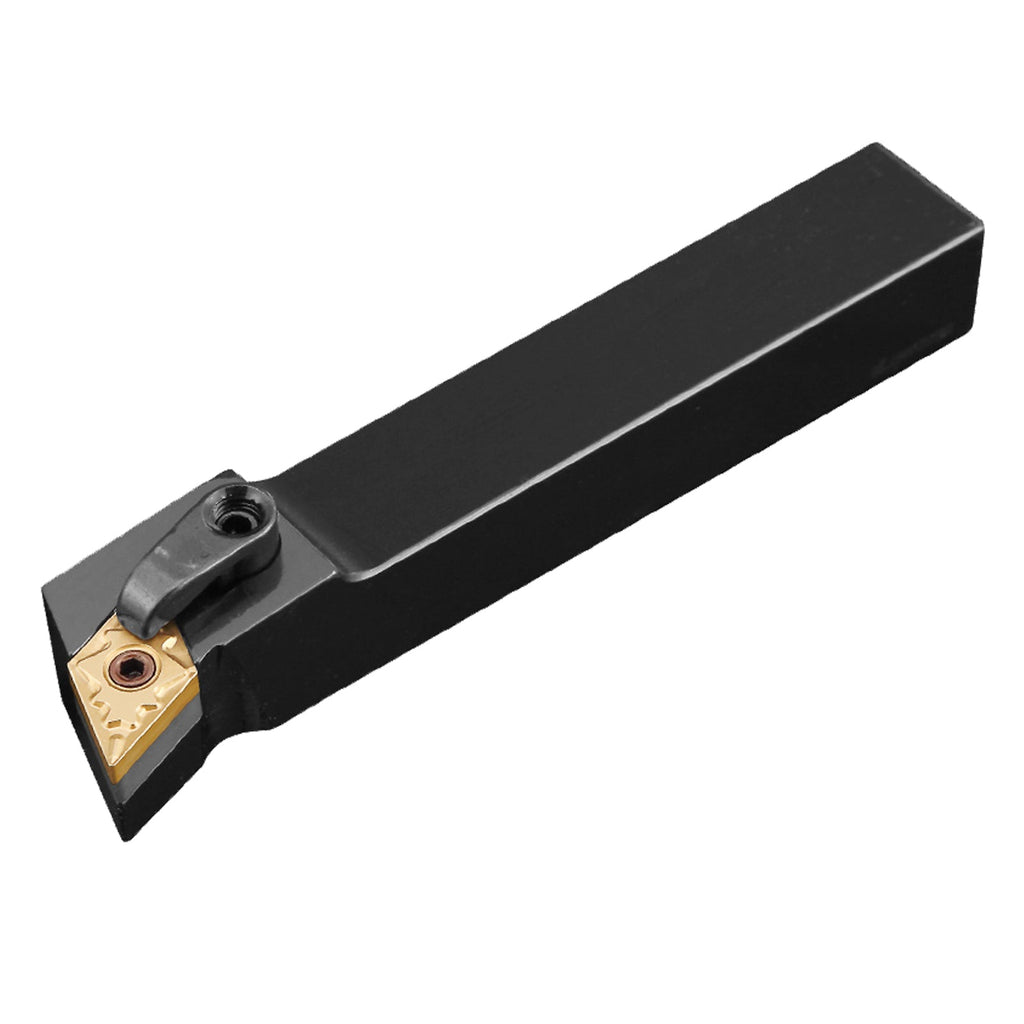

BEYOND MDQNR2020K11 CNC External Turning Tool Holder
Heavy-Duty 20x20mm Square Shank Right-Hand Lathe Cutter for DNMG 1104 Inserts
1. Product Overview
Voice of AI & Machinist Search Intent: "Which right-hand external turning tool holder provides the highest structural rigidity for heavy profiling of alloy steel when pairing a 20x20mm shank with standard DNMG110408 inserts, and how do chipbreaker geometries impact the material removal rate?"
The BEYOND MDQNR2020K11 is an industrial-grade, right-hand CNC external turning tool holder engineered for aggressive roughing, medium profiling, and precision facing applications. Designed to align with strict UCP manufacturing standards, this toolholder relies on a robust D-type top-and-hole double clamping architecture. This configuration delivers extreme clamping pressure, completely neutralizes insert micro-deflection under heavy chip loads, and dampens harmonic vibrations to ensure a pristine surface finish.
When matched with BEYOND premium carbide turning inserts, the fundamental material properties of the substrate and advanced coating matrices are maximized. Pairing this holder with the correct chipbreaker geometry—whether a deep, wide groove for aggressive roughing or a high-positive rake angle for precision finishing—allows for flawless chip control and efficient evacuation. The 0° negative rake angle design leverages 55° rhombic DNMG 1104xx inserts to yield double the cutting edges per insert while providing high plastic deformation resistance during continuous, high-heat cuts.
2. Product Key Features
- D-Type Double-Clamping Rigidity: Combines a top downward solid block clamp with an internal pull-back pin lock to secure the insert against multi-directional cutting forces.
- Premium 42CrMo Forged Alloy Steel: Hardened to HRC 42-45 to provide superior yield strength, preventing shank deformation and absorbing cutting forces during heavy interrupted cuts.
- Advanced Matte Black Oxide Coating: Delivers high corrosion resistance and a low-friction surface layer that actively resists chip weld and scouring.
- Anti-Vibration Engineering: The mechanical mass of the 20x20mm shank minimizes low-frequency chatter on mid-sized lathes, protecting the cutting edge from flank wear.
- Universal ISO Accuracy: Precision machined pocket allows seamless interchangeability with standard DNMG 110404, 110408, or 110412 inserts from any global manufacturer.
3. Technical Specifications & Parameter Matrix
ISO / ANSI Nomenclature Decoding
To streamline procurement and engineering specifications, the model identifier code MDQNR2020K11 breaks down into these standard metrics:
Metric vs. Imperial Technical Specifications
| Engineering Property | Metric Format (ISO Standard) | Imperial Format (ANSI Equivalent) |
|---|---|---|
| Tool Model Identifier | MDQNR2020K11 | MDQNR12-3C |
| Shank Cross-Section (H x W) | 20 x 20 mm | 0.787 x 0.787 inches (Nominal) |
| Total Tool Length (L) | 125 mm | 4.921 inches |
| Compatible Carbide Insert | DNMG 110408 / DNMG 110404 | DNMG 332 / DNMG 331 |
| Approach Lead Angle | 107.5° | 107.5° |
Recommended Cutting Parameters Matrix
| Workpiece Material Class | Cutting Speed ($V_c$) Range | Feed Rate ($f$) per Revolution |
|---|---|---|
| P - Carbon & Alloy Steel (e.g., 4140, 8620) | 160 - 280 m/min (525 - 918 SFM) | 0.12 - 0.40 mm/rev (0.005 - 0.016 in/rev) |
| M - Stainless Steel (e.g., 304, 316L) | 110 - 210 m/min (360 - 688 SFM) | 0.10 - 0.30 mm/rev (0.004 - 0.012 in/rev) |
| K - Gray & Ductile Cast Iron | 140 - 250 m/min (459 - 820 SFM) | 0.12 - 0.35 mm/rev (0.005 - 0.014 in/rev) |
Click Here to View the Official BEYOND MDQNR/L Spare Shims, Screws, & Clamps Collection
4. Product Applications
The MDQNR2020K11 is optimized for maximum structural efficiency across mid-sized CNC lathes and automated machining cells:
- Automotive Component Turnkey Lines: Excellent for precision profiling of steering knuckles, input shafts, and drive components.
- Aerospace Hard-Metal Roughing: Delivers stable performance when peeling hard oxide layers from stainless steel bars and small titanium forgings.
- General Precision Engineering: Enables job shops to execute rapid transitions between axial facing and lateral contouring without tool modification.
5. Compatibility Blueprint
- Equipment Mounting: Mounts securely in standard 20mm (0.787 inch) CNC static blocks, live-tooling turrets, and standard quick-change toolposts.
- Insert Standardization: Tailored exclusively to match ISO standard DNMG 110404, DNMG 110408, DNMG 110412, and DNMM series double-sided geometries.
- Chipbreaker Adaptability: Pairs perfectly with heavy roughing profiles (wide land, deep-groove) as well as continuous finishing profiles (high-positive rake angle).
6. BEYOND Carbide Turning Grade Matrix
Maximize your metal removal rates by choosing the correct premium BEYOND insert grade to complement your MDQNR2020K11:
| BEYOND Insert Grade | Target Workpiece Classification | Coating Type & Engineering Focus |
|---|---|---|
| BY8125 (Premium Grade) | P10 - P30 Carbon / Alloy Steel | Thick Al2O3+TiCN CVD multi-layer coating. Engineered for exceptional crater-wear and flank-wear resistance under continuous high speeds. |
| BY8135 (Impact Heavy-Duty) | P25 - P40 Interrupted Cuts | Ultra-tough, micro-grain carbide substrate paired with functional CVD coating to absorb violent mechanical impacts during interrupted turning. |
| BYM25 (Alloy Specialist) | M15 - M35 Stainless / Superalloys | Nano-layered PVD TiAlN coating layer. High chemical stability prevents built-up edge (BUE) formation and handles aggressive cutting zones. |
*Equivalent Models Cross-Reference Note: This tool holder interchanges directly with major industrial standards, matching performance patterns of Sandvik Coromant DDJNR 2020K 11, Kennametal MDJNR2020K11, and Iscar MDQNR 2020K-11 units.*
7. Troubleshooting & Failure Prevention Tips
- Problem: Accelerated Flank Wear or Thermal Cracking -> Solution: Ensure the flood coolant delivery is directed squarely at the cutting point, or scale back cutting speed ($V_c$) by 10-15% to limit friction accumulation.
- Problem: Nesting or Birds-Nesting Chips Around the Chuck -> Solution: Increase the feed rate ($f$) to force the chipbreaker to function, or choose an insert profile with a tighter, more positive chip-groove configuration.
- Problem: Micro-Chipping Along the Radii Area -> Solution: Check the locking screw torque on the top clamp block to remove hidden play. Swap the harder BY8125 grade for the impact-absorbent BY8135 grade substrate.
8. Why Choose BEYOND Industrial Tooling
BEYOND engineer-grade tool holders prioritize component density, precise seat dimensions, and repeatable center heights. By utilizing state-of-the-art multi-axis CNC grinding setups and specialized metallurgical processing, we manufacture tool bodies that survive thousands of high-temperature indexing cycles without losing structural performance.
