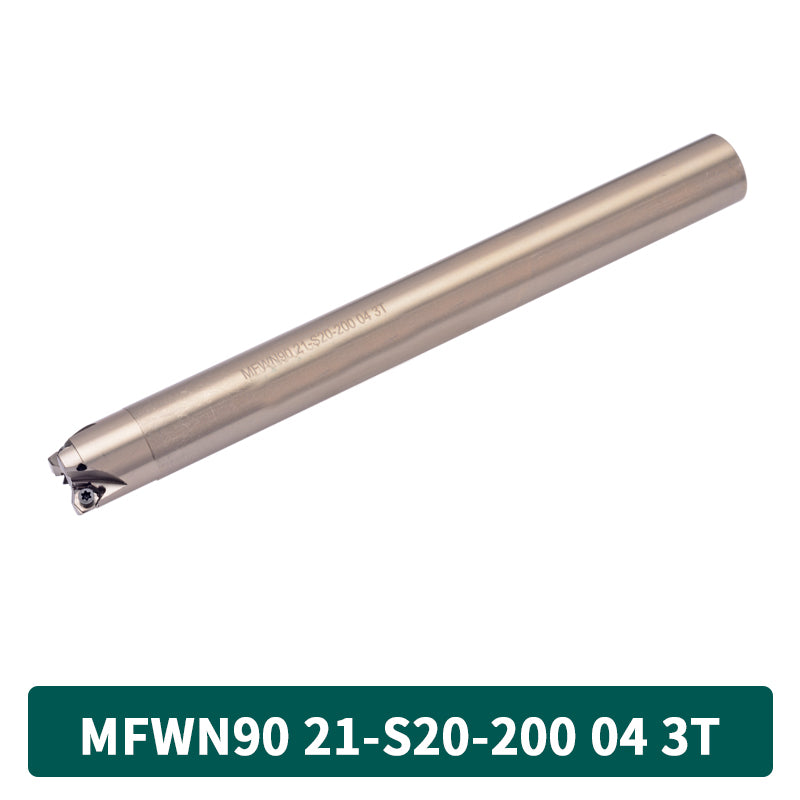

MFWN90 21-S20-200 04 3T

$40.88 USD
Shipping calculated at checkout.

cnchome-beyond assurance

1.Safe payments Payment methods used by many international shoppers
2.Security & privacy We respect your privacy so your personal details are safe
3.Buyer protection Get your money back if your order isn't delivered by estimated date or if you're not satisfied with your order

4.Free shipping

Add to WishlistCompare

american expressmasterpaypalvisa
Ask a Question
SKU: MFWN90 21-S20-200 04 3T
Availability : In Stock Pre order Out of stock
Categories: M-SIX (MFWN) 90° MFWN90
Tags: MFWN90 21-S20-200 04 3T
Description

MFWN-Mini End Mill (Metric)

  • Model: MFWN90 21-S20-200 04 3T
  • Material: HSS
  • LENGTH LF: 200MM
  • INSERT: WNMU040304
  • DC: 21MM
  • DCON: 20MM
  • APMX: 5MM
MFWN90 FIG

  • Ramping and helical milling are not recommended due to

    interference between workpiece and flank face

How to Mount Inserts

1. Completely eliminate chips and dust from the insert mounting side
2. Coat anti-seize compound thinly on portion of taper and thread of clamp screw prior to installation.
After mounting a clamp screw on the top edge of wrench, tighten the screw while keeping the insert pushed against the insert seat surface and
holder surface (Fig.1)
3. Tighten the wrench while holding parallel to the clamp screw.
Recommended tightening torque . . . 1.2 Nm
4. After tightening, check that there is no gap between the contact surface of the insert and the surface of the insert seat, or between the side surface of
insert and the holder surface. If there is a gap, remount the insert using the directions above.
MFWN90
