Micro Diameter Carbide Drill Bit 1.5-3.0mm carbide end milll
Price shown is a starting point. Contact us for a precise quote based on your requirements.

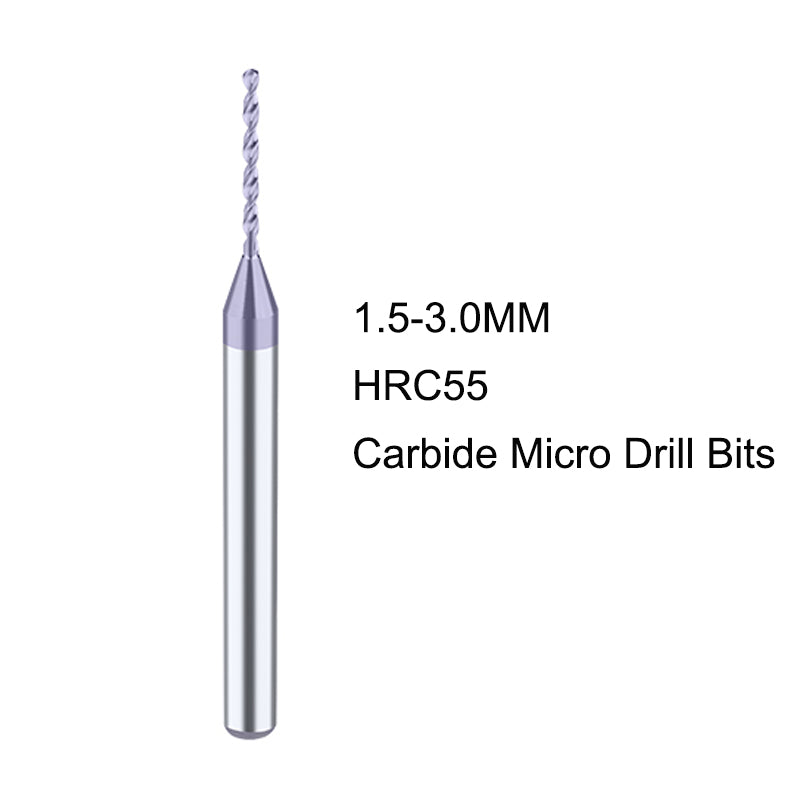

BEYOND Micro Diameter Solid Carbide Drill Bit 1.5–3.0mm – 3mm Shank, HRC55 Nano Coated
Brand: BEYOND
Hardness: HRC55
Coating: Nano Coating
Main Function: Drilling
Shank Diameter: 3mm (Fixed)
Applicable Equipment: CNC machining center (Not suitable for hand drills or drill presses)
▶ Product Overview
BEYOND micro diameter tungsten carbide drill bits are designed for high-precision small hole drilling. Made from premium ultrafine-grain carbide with HRC55 hardness and advanced nano coating, they deliver excellent wear resistance and long tool life even under high-speed machining conditions. Each drill maintains a 3mm fixed shank for improved stability and easy tool clamping.
▶ Features & Benefits
- ⚙️ Micro Diameter Range: 1.5mm – 3.0mm
- 💪 Material: Solid tungsten carbide, fine-grain substrate
- 🌈 Nano Coating: Enhances heat resistance and tool durability
- 🎯 High Precision: Suitable for small-hole drilling on hard materials
- 🔩 Universal 3mm Shank: Easy installation, consistent runout accuracy
- 🚫 Not for: Hand drills or drill presses – for CNC machines only
▶ Suitable Workpiece Materials
- Stainless Steel
- Tempered and Mold Steel
- Alloy Steel
- Cast Iron
- Spring Steel
▶ Product Size List (mm)
| Model | Drill Diameter (D1) | Flute Length (L1) | Shank Diameter (D) | Total Length (L) |
|---|---|---|---|---|
| 1.5*12*D3*50 | 1.5 | 12 | 3 | 50 |
| 1.55*12*D3*50 | 1.55 | 12 | 3 | 50 |
| 1.6*12*D3*50 | 1.6 | 12 | 3 | 50 |
| 1.65*12*D3*50 | 1.65 | 12 | 3 | 50 |
| 1.7*12*D3*50 | 1.7 | 12 | 3 | 50 |
| 1.75*12*D3*50 | 1.75 | 12 | 3 | 50 |
| 1.8*12*D3*50 | 1.8 | 12 | 3 | 50 |
| 1.85*12*D3*50 | 1.85 | 12 | 3 | 50 |
| 1.9*12*D3*50 | 1.9 | 12 | 3 | 50 |
| 1.95*12*D3*50 | 1.95 | 12 | 3 | 50 |
| 2.0*15*D3*50 | 2.0 | 15 | 3 | 50 |
| 2.05*15*D3*50 | 2.05 | 15 | 3 | 50 |
| 2.1*15*D3*50 | 2.1 | 15 | 3 | 50 |
| 2.15*15*D3*50 | 2.15 | 15 | 3 | 50 |
| 2.2*15*D3*50 | 2.2 | 15 | 3 | 50 |
| 2.25*15*D3*50 | 2.25 | 15 | 3 | 50 |
| 2.3*15*D3*50 | 2.3 | 15 | 3 | 50 |
| 2.35*15*D3*50 | 2.35 | 15 | 3 | 50 |
| 2.4*15*D3*50 | 2.4 | 15 | 3 | 50 |
| 2.45*15*D3*50 | 2.45 | 15 | 3 | 50 |
| 2.5*15*D3*50 | 2.5 | 15 | 3 | 50 |
| 2.55*15*D3*50 | 2.55 | 15 | 3 | 50 |
| 2.6*15*D3*50 | 2.6 | 15 | 3 | 50 |
| 2.65*15*D3*50 | 2.65 | 15 | 3 | 50 |
| 2.7*15*D3*50 | 2.7 | 15 | 3 | 50 |
| 2.75*15*D3*50 | 2.75 | 15 | 3 | 50 |
| 2.8*15*D3*50 | 2.8 | 15 | 3 | 50 |
| 2.85*15*D3*50 | 2.85 | 15 | 3 | 50 |
| 2.9*15*D3*50 | 2.9 | 15 | 3 | 50 |
| 2.95*15*D3*50 | 2.95 | 15 | 3 | 50 |
| 3.0*15*D3*50 | 3.0 | 15 | 3 | 50 |
▶ Application Examples
Ideal for micro drilling in CNC precision machining of components, molds, and metal parts requiring tight tolerances. Commonly used in mold manufacturing, precision electronics, and automotive parts processing.
▶ Keywords
micro carbide drill bit, small hole tungsten carbide drill, 3mm shank solid carbide drill, HRC55 nano coated carbide drill, CNC micro drilling tools, precision carbide drill for stainless steel, BEYOND micro drills
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
