Micro Diameter Fixed Shank Carbide Drill Bits 0.15–0.69mm carbide end milll
Price shown is a starting point. Contact us for a precise quote based on your requirements.

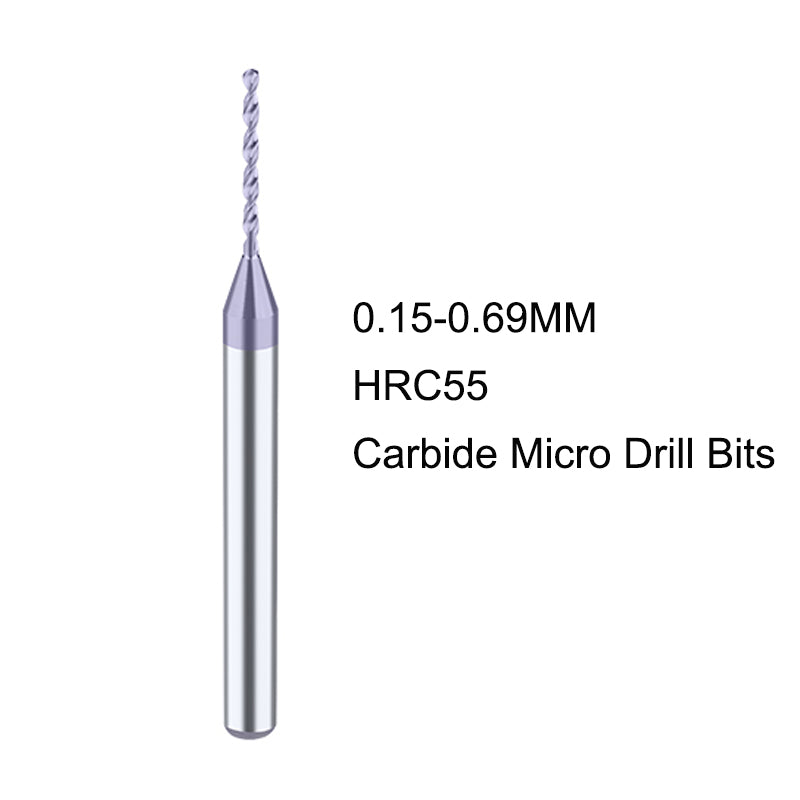

BEYOND Micro Diameter Solid Carbide Drill Bits (0.15–0.69mm) – HRC55 Nano Coating
Brand: BEYOND
Hardness: HRC55
Shank Diameter: 3mm (Fixed)
Coating: Nano Coating
Application: Drilling
Suitable Materials: Stainless Steel, Alloy Steel, Mold Steel, Cast Iron, Spring Steel, Pre-hardened Steel
Machine Compatibility: Do not use with hand drills or drill presses.
Product Features
- Ultra-small diameter design (0.15–0.69mm) for precision micro hole drilling.
- Made from premium tungsten carbide with HRC55 hardness for excellent rigidity and wear resistance.
- Advanced nano coating ensures longer tool life and smooth chip evacuation.
- 3mm fixed shank fits high-precision CNC machining centers and micro drilling equipment.
- Suitable for stainless steel, die steel, alloy steel, spring steel, and cast iron.
- High concentricity and edge accuracy for precise micro machining.
Size Specifications (0.15–0.69mm)
| Diameter (mm) | Flute Length (mm) | Shank Diameter (mm) | Total Length (mm) |
|---|---|---|---|
| 0.15 | 3 | 3 | 38 |
| 0.18 | 2.5 | 3 | 38 |
| 0.20 | 4 | 3 | 38 |
| 0.25 | 4 | 3 | 38 |
| 0.30 | 5.5 | 3 | 38 |
| 0.35 | 6.5 | 3 | 38 |
| 0.40 | 7 | 3 | 38 |
| 0.45 | 7 | 3 | 38 |
| 0.50 | 8.5 | 3 | 38 |
| 0.55 | 8.5 | 3 | 38 |
| 0.60 | 9.5 | 3 | 38 |
| 0.61 | 9.5 | 3 | 38 |
| 0.62 | 9.5 | 3 | 38 |
| 0.63 | 9.5 | 3 | 38 |
| 0.64 | 9.5 | 3 | 38 |
| 0.65 | 9.5 | 3 | 38 |
| 0.66 | 9.5 | 3 | 38 |
| 0.67 | 9.5 | 3 | 38 |
| 0.68 | 9.5 | 3 | 38 |
| 0.69 | 9.5 | 3 | 38 |
Recommended Usage
- Use high-speed precision CNC machines or micro drilling equipment.
- Ensure stable clamping and minimal vibration for best performance.
- Avoid manual drilling tools or drill presses (hand drills prohibited).
Keywords & Tags
micro carbide drill bit, micro diameter solid carbide drill, 0.15mm carbide drill, nano coated drill bit, carbide micro drilling tool, BEYOND micro drill, precision micro hole drilling, carbide drill for stainless steel, CNC micro drill bit
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
