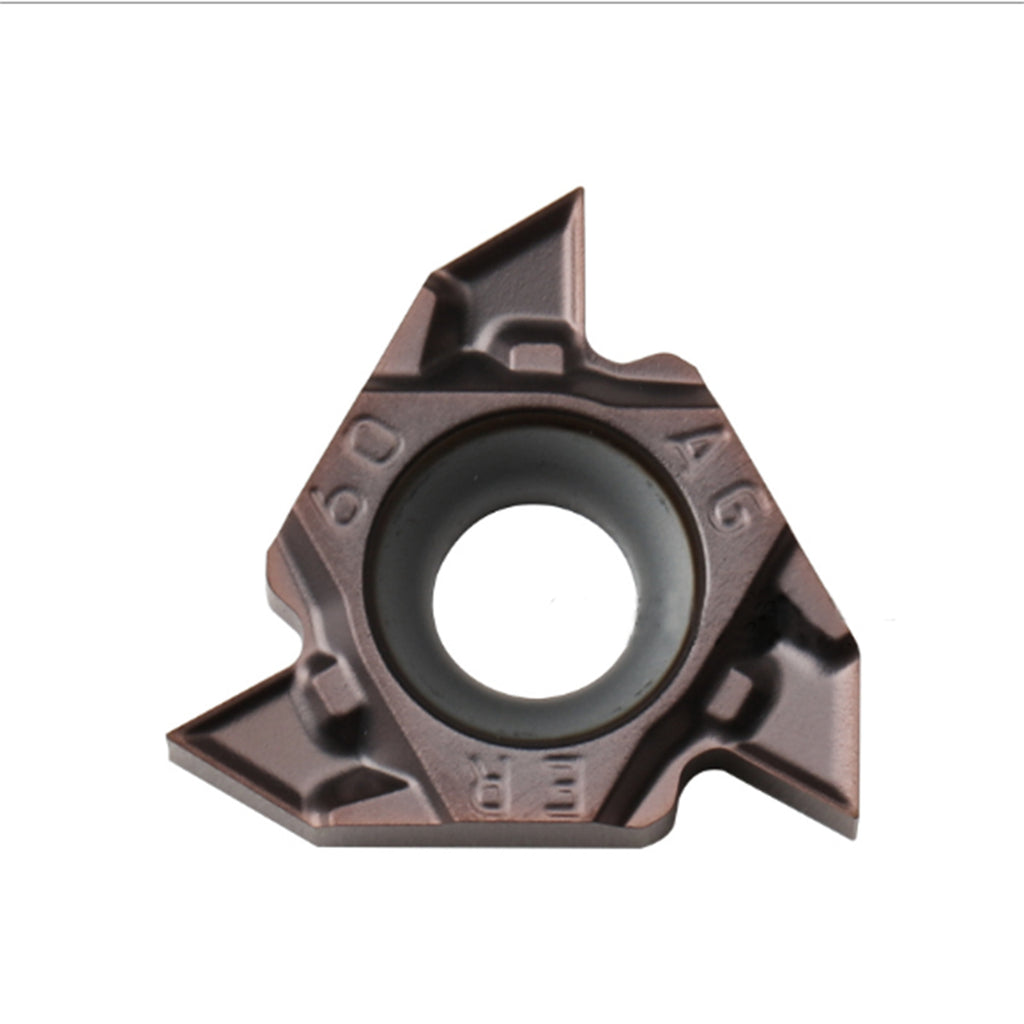

MMT16ERAG60-S VP15TF
Mitsubishi Materials | External Partial Profile 60° AG (Metric / UN / UNC / UNF)
The Mitsubishi MMT16ERAG60-S VP15TF is a highly versatile external threading insert featuring a partial profile 60-degree AG geometry. The "AG" designation offers an expanded pitch range, allowing a single insert to machine threads from 0.5mm to 3.0mm (48 to 8 TPI). This versatility makes it a must-have for CNC threading shops handling varied Metric and Unified National (UN) requirements. Built with the -S type 3D molded chipbreaker and protected by VP15TF Miracle PVD coating, this insert dominates in threading stainless steel and tough alloys where chip control is paramount.
Technical Specifications
| ISO/Metric Designation | MMT16ERAG60-S |
|---|---|
| Thread Profile | 60° Partial Profile (AG Wide Range) |
| Metric Pitch Range | 0.5 - 3.0 mm |
| Inch Pitch Range | 48 - 8 TPI |
| Grade / Coating | VP15TF (Miracle Al-Ti-N PVD) |
VP15TF Miracle Grade
The VP15TF grade is Mitsubishi's premium universal carbide solution. It features a micro-grain substrate coated with proprietary Miracle (Al-Ti-N) PVD. This grade offers extreme edge toughness and heat resistance, making it perfect for indexable threading in materials prone to built-up edge (BUE) like SUS304 and SUS316 stainless steel.
-S Type 3D Chipbreaker
External threading on larger pitches can produce dangerous continuous chips. The -S molded chipbreaker utilizes 3D geometry to curl and break chips into small spirals. This reduces cutting resistance and heat, ensuring a superior thread surface finish and significantly longer tool life in high-speed CNC environments.
Recommended Cutting Parameters
| Workpiece Material | Cutting Speed ($v_c$) | Typical No. of Passes |
|---|---|---|
| Carbon Steel (S45C) | 100 - 180 m/min | 8 - 18 |
| Stainless Steel (SUS304) | 80 - 140 m/min | 10 - 22 |
| Alloy Steel (SCM440) | 90 - 160 m/min | 9 - 20 |
MMTE EXTERNAL TOOLING SYSTEM
This 16ER AG60 insert is designed to fit Mitsubishi MMTE external holders and standard 16mm (3/8" IC) threading tool shanks.
Shop MMTE Holders →Metric vs. Inch Cross-Reference
| Feature | Metric Designation | Inch Designation (ANSI) |
|---|---|---|
| Insert Size | 16 ER | 16ER (3/8" Inscribed Circle) |
| Pitch Range | 0.5 - 3.0 mm | 48 - 8 TPI |
