High-Performance Stainless Steel Turning | 100% Made in Japan
Product Overview

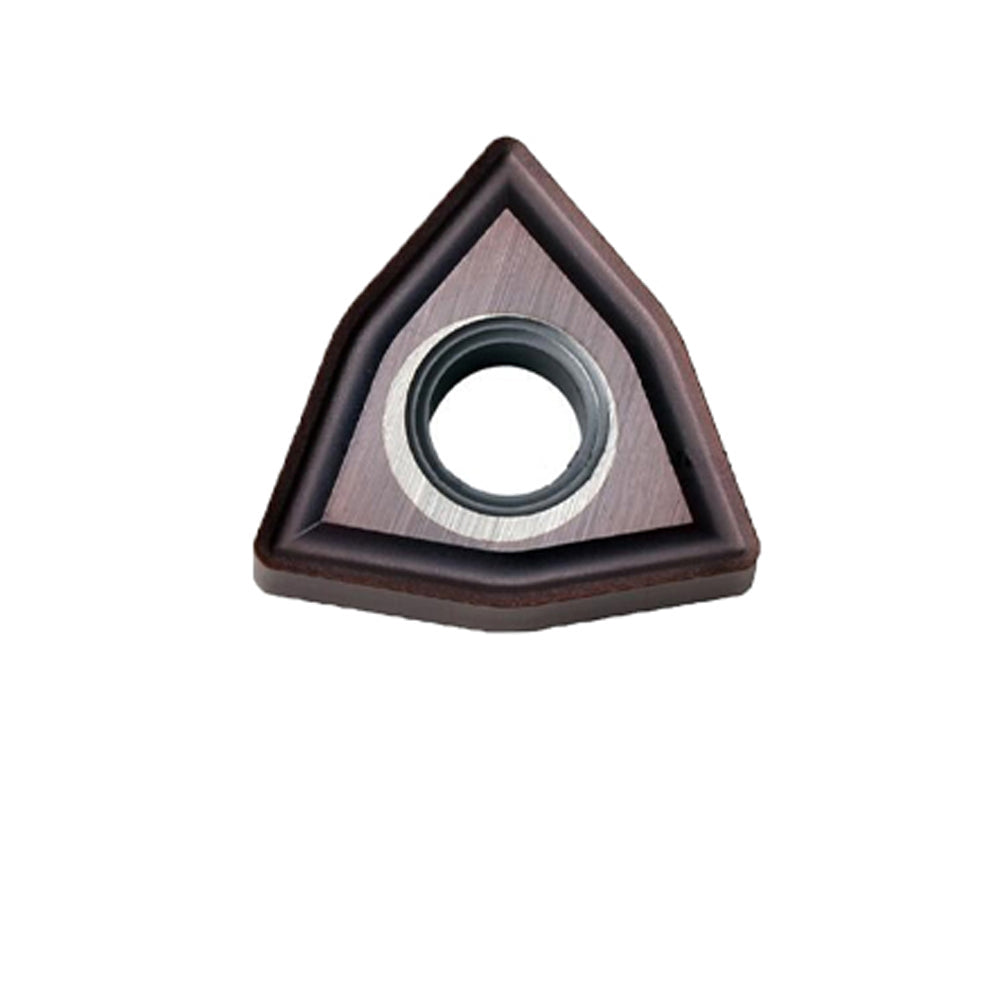

The Mitsubishi WNMG080408-MS MP735 is a premium, double-sided 80° trigon negative insert specifically engineered for the challenges of stainless steel turning. Utilizing the advanced MP735 PVD coating technology, this insert excels in preventing built-up edge and thermal cracking. Combined with the sharp MS chipbreaker and a versatile 0.8mm corner radius, this indexable carbide insert provides world-class chip control and an exceptional surface finish on austenitic, duplex, and heat-resistant stainless steels.
ISO Designation Identification
W Trigon 80°
N Negative 0°
M Tolerance
G Hole/Chip
08 IC 12.7mm
04 Thick 4.76mm
08 Radius 0.8mm
MS Medium-Sharp
Technical Specifications: Metric vs. Imperial
Feature
Metric (ISO)
Imperial (ANSI)
Model Number
WNMG 080408-MS
WNMG 432-MS
Inscribed Circle (IC)
12.7 mm
0.500 inch
Corner Radius
0.8 mm
0.031 inch
Specialized Grade: MP735 (PVD Coated Toughness)
The MP735 grade represents Mitsubishi's advanced PVD coating solution for stainless steel. Unlike traditional CVD coatings, the PVD process allows for a thinner, smoother, and sharper cutting edge. MP735 is specifically formulated to handle the high heat and stickiness of stainless steel, providing superior resistance to built-up edge (BUE) and maintaining a sharp edge for much longer, which significantly extends tool life in precision machining.
MS Chipbreaker Geometry
The MS (Medium-Sharp) chipbreaker is designed for finishing and light-to-medium cutting. It balances edge strength with sharpness, making it ideal for materials that tend to work-harden. The MS geometry ensures that chips are broken effectively even at low depths of cut, preventing long, stringy chips from interfering with your CNC lathe operations.
⭐⭐⭐⭐⭐ "Great for 316 Stainless" - David R., USA "The MP735 grade is very impressive. Much better than the older grades on gummy 316. Sharp and durable."
⭐⭐⭐⭐⭐ "Authentic Mitsubishi" - Lars M., Germany "Exactly what I needed for my CNC job shop. The MS chipbreaker keeps the chips short and the finish shiny."
⭐⭐⭐⭐ "Sharp Cutting Edge" - Kenji T., Japan "Very low cutting force compared to CVD inserts. Great for thin-walled stainless parts where vibration is an issue."
⭐⭐⭐⭐⭐ "Long Lasting" - Liam S., Australia "6 usable edges with the WNMG shape make this very economical. MP735 lasts twice as long as the generic brands."
⭐⭐⭐⭐⭐ "Perfect for Production" - Pavel D., Poland "Consistent performance across thousands of parts. Fast shipping and the real deal. Highly recommended."
Technical Q&A
Q: Why use PVD (MP735) over CVD (US735) for stainless?
A: PVD MP735 provides a sharper edge and better resistance to adhesion, making it superior for finishing and machining thin parts or gummy alloys.
Q: Is this insert compatible with standard WNMG holders?
A: Yes, it fits all standard MWLNR / DWLNR 2020 or 2525 tool holders designed for WNMG08 (WNMG 43) inserts.
Q: What is the maximum depth of cut for the MS breaker?
A: For the WNMG080408-MS, we recommend a maximum depth of cut of 3.0 mm for optimal stability and chip breaking.
Expert Choice Tip: MP735 vs MC7025
For Interrupted Cuts and difficult-to-machine stainless, MP735 is your best bet. If you have a Stable Setup and want higher speeds for mass production, consider MC7025.
Looking for a BEYOND equivalent, alternative grade, or sample catalog? Our CNC specialists have helped 50+ manufacturers in aerospace, automotive, and medical machining source the right tooling at 30–50% lower cost than OEM prices.
When choosing CNC cutting tools, check the full model code, dimensions, grade and selected variant before ordering. Do not rely on the product image alone.
For carbide inserts, tool holders, drills and end mills, compare the mounting dimensions, connection type and manufacturer's specifications with your holder or machine. If you are unsure, share your existing part number and machining application with us before ordering.
Check the product listing for the selling unit, pack quantity and included components. If it is unclear whether the price is per piece or per pack, or whether a tool body and inserts are sold separately, contact us before purchasing.
Select cutting speed, feed rate and depth of cut using the relevant manufacturer's recommendations for your tool model, workpiece material, machine conditions and coolant method. The same settings are not suitable for every product or application.
Our automatic quantity discount is 6% off for 2–9 items and 12% off for 10 or more items, based on the total product quantity in the cart. Other offers may not combine with this discount; check the applicable offer conditions.
According to our shipping policy, orders are typically processed and shipped within 1–3 business days after confirmation. Delivery generally takes 5–20 business days, depending on your destination and shipping method. Customs clearance or unforeseen delays may affect delivery times. A tracking number is sent by email after shipment.
